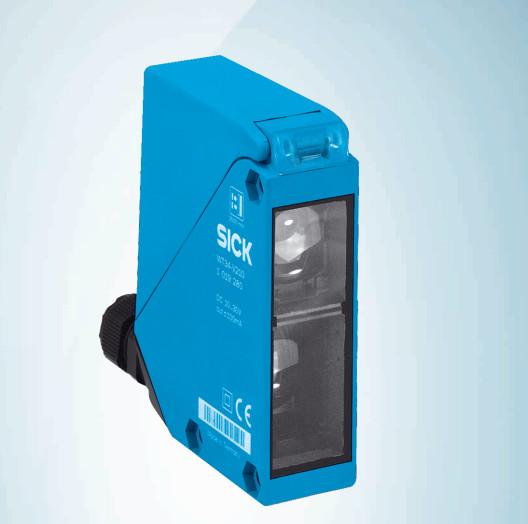

W34 WT34-R240, Product data sheet - SICK Proximity Photoelectric Sensor | part no : 1019239
W34 WT34-R240, Product data sheet - SICK Proximity Photoelectric Sensor | part no : 1019239
Specifications
Brand Name :
SICK
Model Number :
WT34-R240
Certification :
3C
Place of Origin :
GERMANY
MOQ :
1
Price :
365$/piece
Payment Terms :
T/T
Supply Ability :
1piece in stock
Delivery Time :
3 day
Packaging Details :
110*60*60mm
Dimensions (W x H x D) :
27 mm x 92 mm x 70 mm
Sensing range max. :
100 mm ... 1,200 mm
Weight :
140 g
Enclosure rating :
IP67
Ambient operating temperature :
–40 °C ... +60 °C
Ambient temperature, storage :
–40 °C ... +75 °C
Description
Features
Functional principle Photoelectric proximity sensor
Functional principle detail Background suppression
Dimensions (W x H x D) 27 mm x 92 mm x 70 mm
Housing design (light emission) Rectangular
Sensing range max. 100 mm ... 1,200 mm 1)
Sensing range 100 mm ... 1,200 mm
Type of light Visible red light
Light source LED 2)
Light spot size (distance) Ø 40 mm (1,200 mm)
Wave length 660 nm
Adjustment Potentiometer
1) Object with 90% remission (based on standard white, DIN 5033).
2) Average service life: 100,000 hat TU = +25 °C.
Mechanics/electronics
Supply voltage UB 20 V AC/DC ... 250 V AC/DC
Power consumption < 2 VA
Switching output Relay, electrically isolated 1)
Output function Change-over contacts
Switching mode Light switching, Dark switching 1)
Switching modeselector Selectable via light/dark selector
Switching current (switching voltage) 4 A @ 250 V AC, 4 A @ 24 V DC, 0.125 A @ 250 V DC
1) Provide suitable spark suppression for inductive or capacitive loads.
2) With light/dark ratio 1:1.
3) A = VS connections reverse-polarity protected.
4) C = interference suppression.
5) Rated voltage: 250 V AC/DC.
2 PHOTOELECTRIC SENSORS | SICK Product data sheet | 2024-09-25 17:23:43
Subject to change without notice
WT34-R240 | W34
COMPACT PHOTOELECTRIC SENSORS
UL: 4 A @ 250 V AC, general use / 4 A @ 250 V AC, resistive (NO) / 3 A @ 250 V AC, resistive
(NC) / 4 A @ 24 V DC, NO, general use / 3 A @ 24 V DC, NC, general use / R300 / B300 (NO
contacts only)
Response time ≤ 10 ms
Switching frequency 10 Hz 2)
Connection type Terminal connection with M16 gland
Circuit protection A 3)
C 4)
Protection class II 5)
Weight 140 g
Housing material Plastic, ABS
Enclosure rating IP67
Ambient operating temperature –40 °C ... +60 °C
Ambient temperature, storage –40 °C ... +75 °C
UL File No. NRKH.E181493 & NRKH7.E181493
1) Provide suitable spark suppression for inductive or capacitive loads.
2) With light/dark ratio 1:1.
3) A = VS connections reverse-polarity protected.
4) C = interference suppression.
5) Rated voltage: 250 V AC/DC.
Safety-related parameters
MTTFD 509 years
DCavg 0 %
TM (mission time) 20 years
Classifications
ECLASS 5.0 27270904
ECLASS 5.1.4 27270904
ECLASS 6.0 27270904
ECLASS 6.2 27270904
ECLASS 7.0 27270904
ECLASS 8.0 27270904
ECLASS 8.1 27270904
ECLASS 9.0 27270904
ECLASS 10.0 27270904
ECLASS 11.0 27270904
ECLASS 12.0 27270903
ETIM 5.0 EC002719
ETIM 6.0 EC002719
ETIM 7.0 EC002719
ETIM 8.0 EC002719
UNSPSC 16.0901 39121528
