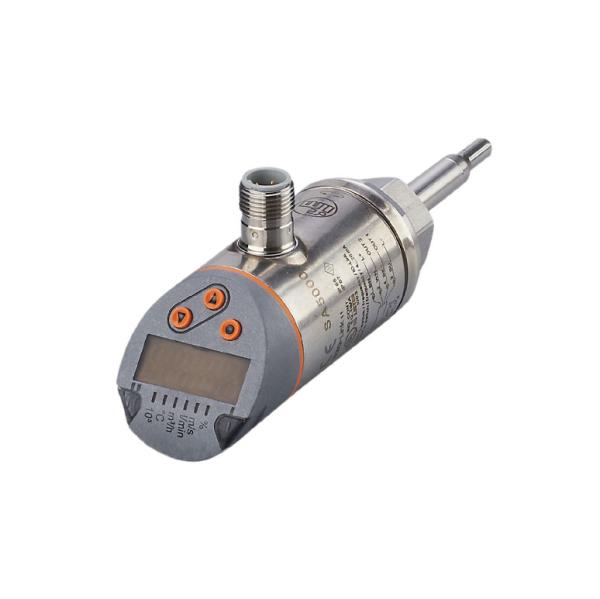

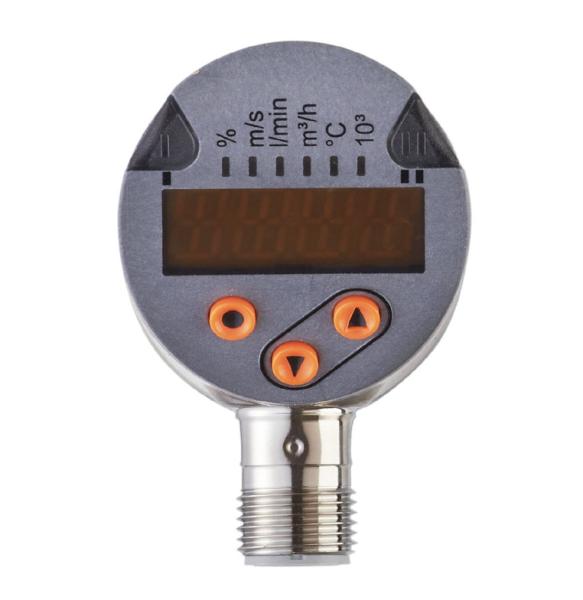

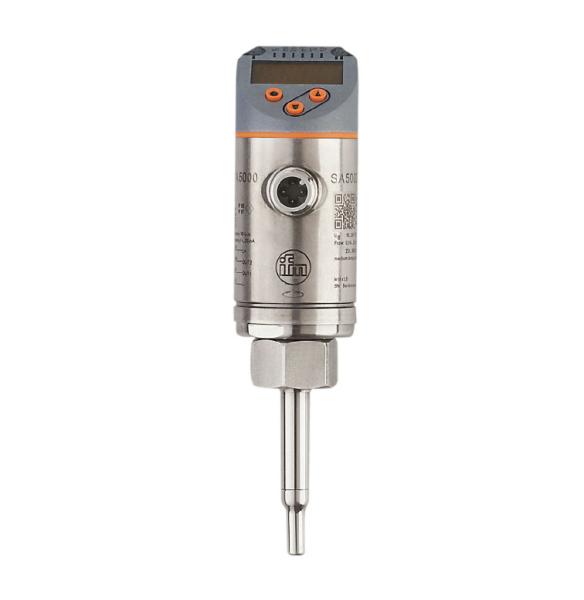

IFM Flow sensor SA5000 SAD10XDBFRKG
IFM Flow sensor SA5000 SAD10XDBFRKG
IFM Flow sensor SA5000 SAD10XDBFRKG
IFM Flow sensor SA5000 SAD10XDBFRKG
IFM Flow sensor SA5000 SAD10XDBFRKG
IFM Flow sensor SA5000 SAD10XDBFRKG
IFM Flow sensor SA5000 SAD10XDBFRKG
IFM Flow sensor SA5000 SAD10XDBFRKG
Specifications
Brand Name :
IFM
Model Number :
SA5000
Certification :
3C
Place of Origin :
GERMANY
MOQ :
1
Price :
$400/piece
Payment Terms :
T/T
Supply Ability :
1piece in stock
Delivery Time :
3 day
Packaging Details :
150*50*50mm
Probe length L[mm] :
45
Weight[g] :
257
Dimensions[mm] :
Ø 34 / L = 142
Description
Product characteristics
Number of inputs and outputs Number of digital outputs: 2; Number of analogue outputs: 1
Process connection threaded connection M18 x 1,5 internal thread
Application
Special feature Gold-plated contacts
Media water; glycol solutions; air; oils
Note on media low-viscosity oils with viscosity: ≤ 40 mm²/s (40 °C)
high-viscosity oils with viscosity: > 40 mm²/s (40 °C)
Medium temperature [°C] -20...90
Pressure rating [bar] 100
Pressure rating [Mpa] 10
MAWP (for applications
according to CRN)		 [bar] 100
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — SA5000-01 — 26.04.2021 —
SA5000
Flow sensor
SAD10XDBFRKG/US-100
Electrical data
Operating voltage [V] 18...30 DC
Current consumption [mA] < 100
Protection class III
Reverse polarity protection yes
Power-on delay time [s] 10
Inputs / outputs
Number of inputs and outputs Number of digital outputs: 2; Number of analogue outputs: 1
Outputs
Total number of outputs 2
Output signal switching signal; analogue signal; frequency signal; IO-Link; (configurable)
Electrical design PNP/NPN
Number of digital outputs 2
Output function normally open / normally closed; (parameterisable)
Max. voltage drop switching
output DC		 [V] 2.5
Permanent current rating of
switching output DC		 [mA] 250
Number of analogue outputs 1
Analogue current output [mA] 4...20; (scalable)
Max. load [Ω] 350
Short-circuit protection yes
Type of short-circuit
protection		 pulsed
Overload protection yes
Frequency of the output [Hz] 0...1000
Measuring/setting range
Probe length L [mm] 45
Operating mode relative; absolutely liquid; absolutely gaseous;
(absolute: reference measurement recommended)
Note on factory setting Operating mode: relative
Liquids
Setting range
Greatest sensitivity		 [m/s]
[m/s]		 0.04...6
0.04...3
Gases
Setting range
Greatest sensitivity		 [m/s]
[m/s]		 0...200
2...100
Temperature monitoring
Measuring range
Resolution		 [°C]
[°C]		 -20...90
0.2
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — SA5000-01 — 26.04.2021 —
SA5000
Flow sensor
SAD10XDBFRKG/US-100
Accuracy / deviations
Flow monitoring
Temperature drift [cm/s x 1/K] 0,003 m/s x 1/K (< 20 °C; > 70 °C)
Temperature gradient [K/min] 100
Accuracy ± (7 % MW + 2 % MEW); (for relative mode in the range of maximum
sensitivity under the following conditions:; water: 20...70 °C; inlet
length: 1.5 m; DN25 (DIN 2448); mounting position according to
instructions; Accuracy can differ for other media and mounting positions.)
Repeatability 0,05 m/s; (water; flow velocity: 0,05...3 m/s)
Temperature monitoring
Temperature drift ± 0,005 K/°C
Accuracy [K] ± 0,3 / ± 1; (water; flow velocity: 0,3...3 m/s / air; flow velocity: > 10 m/s)
Response times
Flow monitoring
Response time [s] 0.5; (T09; water; glycol: 0,8 s; air: 7 s; oil: 1,8 s; each T09)
Temperature monitoring
Dynamic response T05 / T09 [s] 1,5 (T09); (water; flow velocity: 0,3...3 m/s)
Software / programming
Parameter setting options hysteresis / window; normally open / normally closed; switching logic; current/
frequency output; medium selection; Damping; Teach function; display can be
rotated and switched off; standard unit of measurement; process value colour
Interfaces
Communication interface IO-Link
Transmission type COM2 (38,4 kBaud)
IO-Link revision 1.1
SDCI standard IEC 61131-9
Profiles Smart Sensor: Process Data Variable; Device Identification, Device Diagnosis
SIO mode yes
Required master port type A
Process data analogue 2
Process data binary 2
Min. process cycle time [ms] 3
Supported DeviceIDs Type of operation DeviceID
Factory setting / ModE = (REL) 533
ModE = (LIQU) 540
ModE = (GAS) 547
Operating conditions
Ambient temperature [°C] -40...80
Storage temperature
Protection		 [°C] -40...100
IP 65; IP 67
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — SA5000-01 — 26.04.2021 —
SA5000
Flow sensor
SAD10XDBFRKG/US-100
Tests / approvals
EMC DIN EN 60947-5-9
Shock resistance DIN EN 60068-2-27 50 g (11 ms)
Vibration resistance DIN EN 60068-2-6 20 g (10...2000 Hz)
MTTF [years] 132
UL approval UL Approval no. I003
Mechanical data
Weight [g] 314
Materials stainless steel (1.4404 / 316L); stainless steel (1.4310 / 301); PBT-GF20; PBT-GF30
Materials (wetted parts)
Process connection		 stainless steel (1.4404 / 316L); Gasket: FKM
threaded connection M18 x 1,5 internal thread
Displays / operating elements
Display unit 6 x LED, green (%, m/s, l/min, m³/h, °C, 10³)
Display switching status 2 x LED, yellow
measured values alphanumeric display, red/green 4-digit
Remarks
Remarks MW = measured value
MEW = Final value of the measuring range
Pack quantity 1 pcs.
