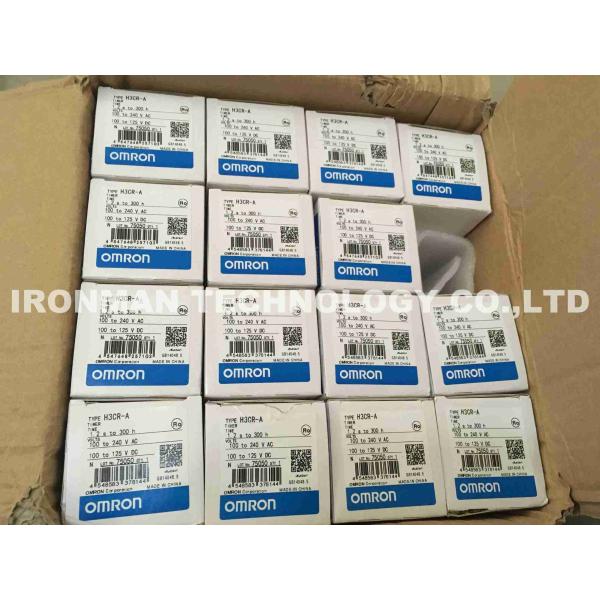

Omron H3CR-A Solid-state Multi-functional Timers 11-pin
Lead time: 3-5 days
New with one year warranty
• A wide AC/DC power supply range greatly reduces the number of timer models kept in stock.
• A wide range of applications with multiple operating modes, eight modes for 11-pin models and five modes for 8-pin models.
• Ecological design with reduced current consumption.
• Easy sequence checking with instantaneous outputs for a zero set value.
• Length of 75 mm or less when panel-mounted with a P3G-08 Socket (H3CR-A8E, 100 to 240 VAC, 100 to 125 VDC)
• PNP input models available.
• Standards: UL, CSA, NK, LR, CCC, EN 61812-1, and CE Marking.
11-pin Models
| Output | Supply voltage | Input type | Time range | Operating mode *2 | Model *1 |
| Contact | 100 to 240 VAC (50/60 Hz)/
100 to 125 VDC | No-voltage
input | 0.05 s to 300 h | Eight multi-modes:
A, B, B2, C, D, E, G, J | H3CR-A |
24 to 48 VAC (50/60 Hz)/
12 to 48 VDC |
100 to 240 VAC (50/60 Hz)/
100 to 125 VDC | Voltage input | Eight multi-modes:
A, B, B2, C, D, E, G, J | H3CR-AP |
24 to 48 VAC (50/60 Hz)/
12 to 48 VDC |
100 to 240 VAC (50/60 Hz)/
100 to 125 VDC | No-voltage
input | 0.1 s to 600 h | H3CR-A-301 |
24 to 48 VAC (50/60 Hz)/
12 to 48 VDC |
Transistor
(Photocoupler) | 24 to 48 VAC (50/60 Hz)/
12 to 48 VDC | 0.05 s to 300 h | H3CR-AS |
General
| Item | H3CR-A/-AS/-A-301 | H3CR-AP | H3CR-A8/-A8S/-A8-301 | H3CR-A8E |
| Operating mode | A: ON-delay
B: Flicker OFF start
B2: Flicker ON start
C: Signal ON/OFF-delay
D: Signal OFF-delay
E: Interval
G: Signal ON/OFF-delay
J: One-shot | A: ON-delay (power supply start)
B: Flicker OFF start (power supply start)
B2: Flicker ON start (power supply start)
E: Interval (power supply start)
J: One-shot (power supply start) |
| Pin type | 11-pin | 8-pin |
| Input type | No-voltage input | Voltage input | --- |
| Time-limit output type | H3CR-A/-A8/-AP/-A-301/-A8-301: Relay output (DPDT)
H3CR-AS/-A8S: Transistor output (NPN/PNP universal) *1 | Relay output
(SPDT) |
| Instantaneous output type | --- | Relay output
(SPDT) |
| Mounting method | DIN track mounting, surface mounting, and flush mounting |
| Approved standards | UL508, CSA C22.2 No.14, NK, Lloyds, CCC: GB/T 14048.5 *2
Conforms to EN61812-1 and IEC60664-1 (VDE0110) 4kV/2.
Output category according to EN60947-5-1 for Timers with Contact Outputs.
Output category according to EN60947-5-2 for Timers with Transistor Outputs. |
