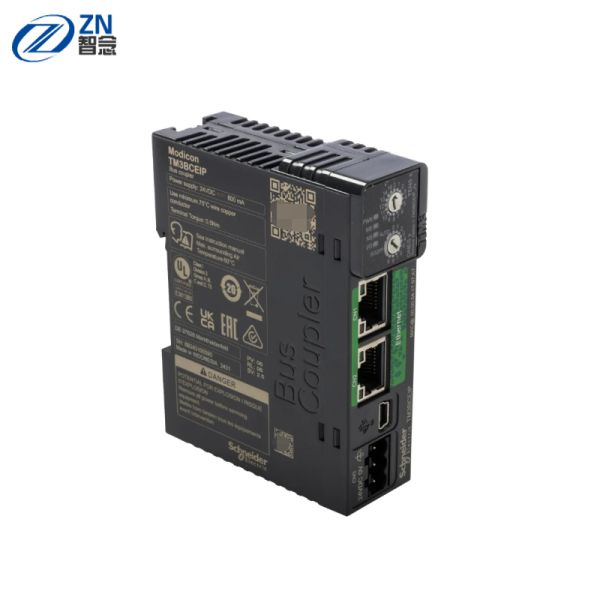

This product is part of the Modicon TM3 range, an offer of expansion I/O modules for Modicon M221, M241, M251 and M262. The I/O distributed module supports daisy chain topology. It offers half duplex, full duplex and auto negotiation exchange mode with 10/100Mbps data transmission rate. This processor provides web services like web server, ethernet and web server, USB. It features 1 LED for PWR (system status), 1 LED for MS (module status), 1 LED for NS (network status) and 1 LED for I/O status signaling. It is an IP20 rated product. Its dimensions are 27mm (width) x 70mm (depth) x 96.5mm (height). It weighs 0.10kg. It is suitable for bus coupler module. It is compatible with logic controller and motion controller. Modicon TM3 expansion modules have been designed with a simple interlocking assembly mechanism. Boost the performance of controller with the Modicon TM3 I/O system specially designed for the Modicon M221, M241, M251 and M262 logic controllers.

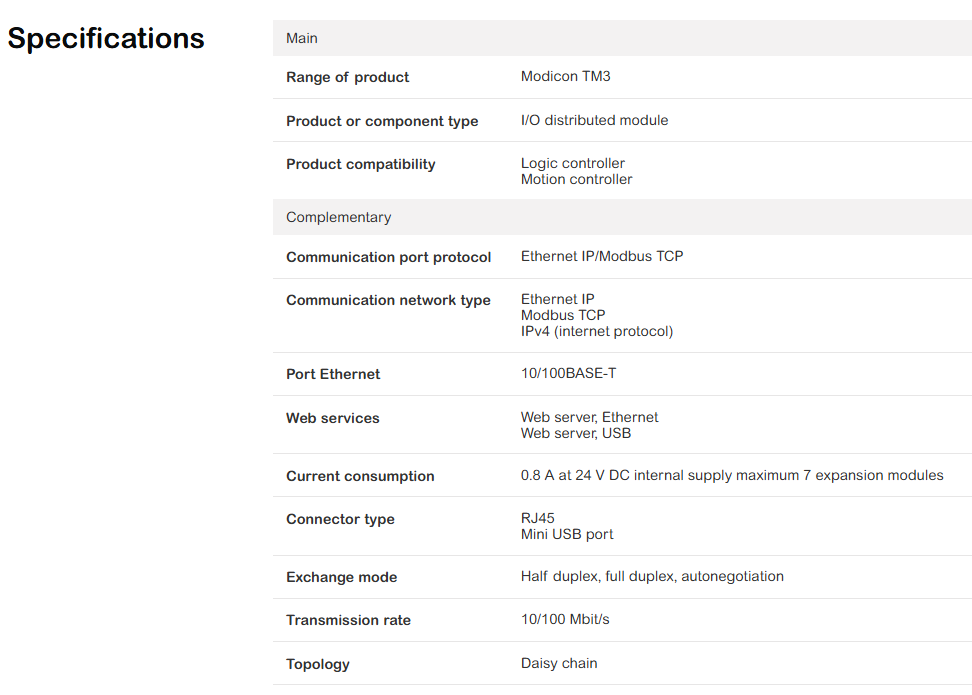

| Communication port protocol | Ethernet IP/Modbus TCP |
| Communication network type | Ethernet IP Modbus TCP IPv4 (internet protocol) |
| Port Ethernet | 10/100BASE-T |
| Web services | Web server, Ethernet Web server, USB |
| Current consumption | 0.8 A at 24 V DC internal supply maximum 7 expansion modules |
| Connector type | RJ45 Mini USB port |
| Exchange mode | Half duplex, full duplex, autonegotiation |
| Transmission rate | 10/100 Mbit/s |
