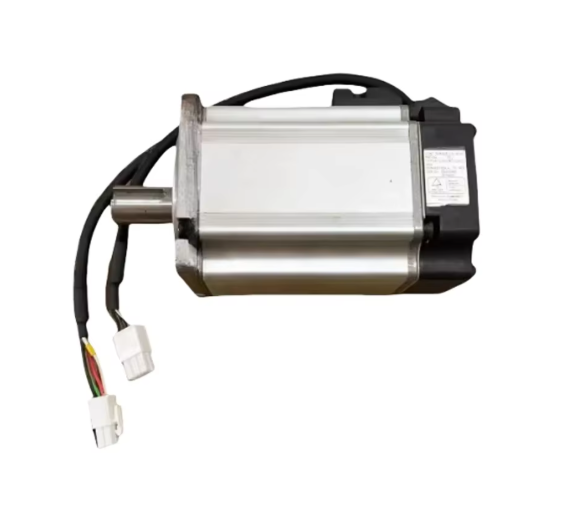

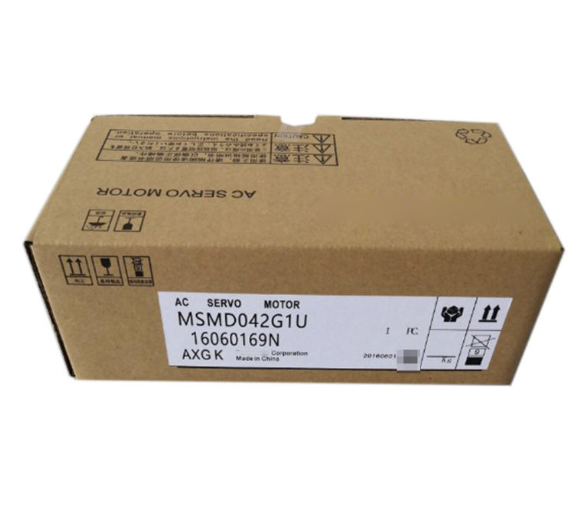

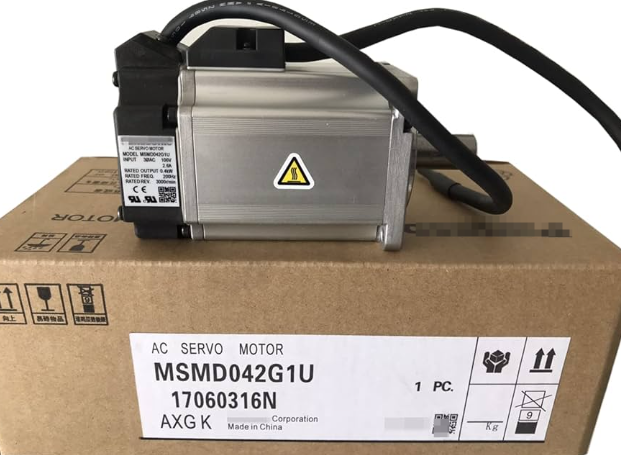

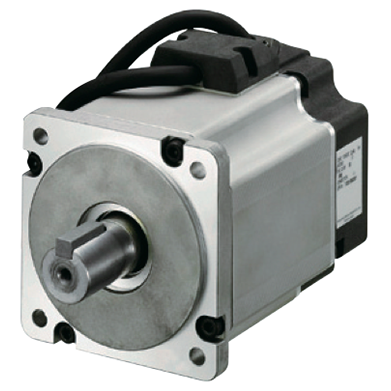

MINAS A5 Family Servo Motor MSMD042G1U Brand-New in Box Good Price and Quantity
MINAS A5 Family Servo Motor MSMD042G1U Brand-New in Box Good Price and Quantity
MINAS A5 Family Servo Motor MSMD042G1U Brand-New in Box Good Price and Quantity
MINAS A5 Family Servo Motor MSMD042G1U Brand-New in Box Good Price and Quantity
MINAS A5 Family Servo Motor MSMD042G1U Brand-New in Box Good Price and Quantity
MINAS A5 Family Servo Motor MSMD042G1U Brand-New in Box Good Price and Quantity
MINAS A5 Family Servo Motor MSMD042G1U Brand-New in Box Good Price and Quantity
MINAS A5 Family Servo Motor MSMD042G1U Brand-New in Box Good Price and Quantity
Specifications
Place of Origin :
CHINA
Rated output (W) :
400
Payment Terms :
T/T, Western Union,paypal
Shipping :
UPS/DHL/FEDEX
key words :
AC servo motor
Packaging Details :
Original packaging
Weight (kg) :
1.2
Power supply capacity (kVA) :
0.9
Delivery Time :
3days
Quality :
new
Port :
Shenzhen & Guangzhou /Selectable
MOQ :
1
Price :
USD109-120/pcs
Company Location :
Changsha City, China
Model Number :
MSMD042G1U
Part Number :
MSMD042G1U
Package :
1 Piece
Description

MSMD042G1U

MINAS A5 Family Servo Motor

Part Number

 MSMD042G1U

Product

 Servo Motor

Details

 Low inertia, Lead wire type, IP65

Product Name

 MINAS A5 Family Servo Motor (Discontinued)

Features

 10 W to 7.5 kW, Input power supply for Driver: Voltage DC 24 V/48 V・AC 100 V/200 V/400 V, 20 bit incremental・17 bit Absolute/Incremental encoder, Frequency response 2.3 kHz
Item Specifications
Part Number MSMD042G1U
Product details Low inertia, Lead wire type, IP65
Family Name MINAS A5
Series MSMD Series
Type Low inertia
Protection class IP65
About Enclosure Except rotating portion of output shaft and leadwire end.
Environmental Conditions For more details, please refer to the instruction manual.
Flange sq. dimension 60 mm sq.
Flange size (mm) 60
Motor lead-out configuration Lead wire
Motor encoder connector Lead wire
Power supply capacity (kVA) 0.9
Voltage specifications (V) 200
Rated output (W) 400
Rated current [Reference value] (A rms) 2.6
Holding brake without
Mass (kg) 1.2
Oil seal with
Shaft Key-way, center tap
Rated torque (N ⋅ m) 1.3
Momentary Max. peak torque (N ⋅ m) 3.8
Max. current [Reference value] (A 0-p) 11.0
Regenerative brake frequency (times/min) Without option :No limit
With option :No limit
Option (External regenerative resistor) Part No. : DV0P4283
About regenerative brake frequency Please refer to the details of [Motor Specification Description] , Note: 1, and 2.
Rated rotational speed (r/min) 3000
Max. rotational speed (r/min) 5000
Inertia of rotor ( x10-4 kg ⋅ m²) 0.26
Recommended inertia ratio 30 times or less
About recommended moment of inertia ratio of the load and the rotor Please refer to the details of [Motor Specification Description] ,Note: 3.
Rotary encoder: specifications 20-bit Incremental system
Rotary encoder: Resolution 1048576
