Description

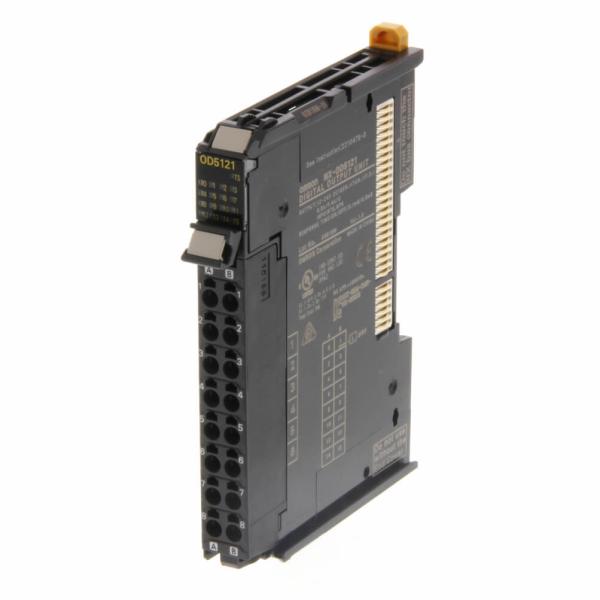

NX-OD5121 Omron I/O Modules NX Series,Transistor Output Unit,NPN To 24VDC

Overview

Omron NX Family of Series — NX-ID/IA/OD/OC/MD | Modular Digital I/O Unit:

The NX Series is a range of modular designed units that integrate standard I/O and safety and connect to the EtherNet/IP network via Communication Coupler Units. The modern remote I/O demands increasing levels of flexibility. The EtherNet/IP Communication Unit enables connection between the CJ-series or other Programmable Controller and NX-series I/O through EtherNet/IP, which expands system configuration possibilities. Modular remote I/O systems offer flexibility in I/O configuration and a wide choice of signal types and performance levels so that every I/O station can be assembled with just the right combination without changing the control architecture. By using standard Ethernet cables and connectors, only basic tools are required to install and maintain networks.

While different machines may require different levels of controller performance, NX-series is the only remote I/O system you will need. This will unify wiring and installation techniques, and simplify spare parts stock. Safety control programs that are created using the NX I/O Edition can be standardized and reused throughout the machine portfolio, which will reduce the time required for development, testing and certification

Specifications

Unit name Transistor Output Unit Model NX-OD5121
Number of points 16 points External connection
terminals		 Screwless clamping terminal block (16
terminals)
I/O refreshing
method		 Selectable Synchronous I/O refreshing or Free-Run refreshing
Indicators TS indicator,
output indicator
NX-OD5121 Omron I/O Modules NX Series Transistor Output Unit NPN To 24VDC		 Internal I/O common NPN
Rated voltage 12 to 24 VDC
Operating load
voltage range		 10.2 to 28.8 VDC
Maximum value of
load current		 0.5 A/point, 4 A/Unit
Maximum inrush
current		 4.0 A/point, 10 ms max.
Leakage current 0.1 mA max.
Residual voltage 1.5 V max.
ON/OFF response
time		 0.1 ms max./0.8 ms max.
Dimensions 12 (W) x 100 (H) x 71 (D) Isolation method Photocoupler isolation
Insulation
resistance		 20 MΩ min. between isolated
circuits (at 100 VDC)		 Dielectric strength 510 VAC between isolated circuits for
1 minute at a leakage current of 5 mA
max.
I/O power supply
method		 Supply from the NX bus Current capacity of
I/O power supply
terminal		 Without I/O power supply terminals
NX Unit power
consumption		 • Connected to a CPU Unit or
Communication Control Unit
1.00 W max.
• Connected to a Communi-
cations Coupler Unit
0.65 W max.		 I/O current
consumption		 20 mA max.
Weight 70 g max.
Circuit layout NX-OD5121 Omron I/O Modules NX Series Transistor Output Unit NPN To 24VDC
Installation
orientation and
restrictions		 Installation orientation:
• Connected to a CPU Unit or Communication Control Unit: Possible in upright installation.
• Connected to a Communications Coupler Unit: Possible in 6 orientations.
Restrictions: No restrictions
Terminal
connection diagram		 NX-OD5121 Omron I/O Modules NX Series Transistor Output Unit NPN To 24VDC
Disconnection/
Short-circuit
detection		 Not supported. Protective function Not supported.

NX-OD5121 Omron I/O Modules NX Series Transistor Output Unit NPN To 24VDC

NX-OD5121 Omron I/O Modules NX Series Transistor Output Unit NPN To 24VDC
