SM0254 Gasketed Plate And Frame Heat Exchanger For Metallurgical Industry B30B Series
SM0254 Gasketed Plate And Frame Heat Exchanger For Metallurgical Industry B30B Series
Specifications
Brand Name :
Tenkai
Model Number :
B30B
Certification :
ISO9001
Place of Origin :
CHINA(Inland)
MOQ :
2 Packages
Price :
Negotiate
Payment Terms :
L/C, T/T, D/P
Supply Ability :
160pcs/Day
Delivery Time :
Within two weeks
Packaging Details :
Wooden Box Package
Material :
SM0254
Max Design Pressure :
1.0 Mpa
Connection Mode :
Clamp,Flange,External thread
Warranty Period :
One year
Structure :
Gasket
HS CODE :
8419500090
Application :
Metallurgical/HVAC Industry/Chemical/Electronic
Description

B30B Series Gasket Plate Heat Exchanger SM0254 Material For Metallurgical Industry

Introduction :

Gasket Plate Heat Exchanger is a heat transfer device that consists of a series of individual plates that can be easily disassembled and reassembled. Each plate has special patterns that create flow channels for the hot and cold fluids, allowing efficient heat exchange to occur. The detachable design offers flexibility for maintenance, cleaning, and modifications.

Metallurgical industry: Detachable plate heat exchangers are employed in metallurgical furnaces, smelting, and refining processes for cooling and heating operations, enhancing energy utilization efficiency

In summary, detachable plate heat exchangers play a vital role in various industrial sectors, enabling heat recovery, energy conservation, and process optimization.

Gasketed plate heat exchangers offer efficient heat transfer, compact size, and flexibility, making them a popular choice for many heat exchange applications. Their modular design, ease of maintenance, and versatility contribute to their widespread use in various industries.

SM0254 Gasketed Plate And Frame Heat Exchanger For Metallurgical Industry B30B SeriesSM0254 Gasketed Plate And Frame Heat Exchanger For Metallurgical Industry B30B Series SM0254 Gasketed Plate And Frame Heat Exchanger For Metallurgical Industry B30B Series

TYPE A(mm) B(mm C(mm D(mm) E(mm) Height ( mm ) ( from middle of bottom to ground )(mm)

MAX,LC

(mm)

 Connector Path (mm) Max Flow (m3/h) Design Pressure (Mpa) Max Pieces
B30B N(2.5+X) 180 60 480 357 62 500 32 18 1.0 95
B60B N2.0+X 320 140 920 640 140 1200 50 36 1.6 250
B60H N(3.0+X) 320 140 920 640 140 1200 50 36 1.6 203
B100B N(2.55+X) 470 225 1069 719 183 1600 100 140 1.0/1.6/2.5 278
B100H N(3.95+X) 470 225 1069 719 200 1600 100 140 1.0/1.6/2.5 180
B150B N(2.5+X) 610 298 1815 1294 275 3000 150 360 1.0/1.6/2.5 600
B150H N(3.95+X) 610 298 1815 1294 275 3000 150 360 1.0/1.6/2.5 600
B200H N(4+X) 780 353 2260 1478 380 3000 200 600 1.0/1.6 480
B250B N(2.5+X) 920 439 2895 1939 435 3000 250 750 1.0/1.6/2.5 500
B350B N(3.3+X) 1150 596 2882 1842 470 4800 350 997 1.0/1.6 700

Factory Show :

SM0254 Gasketed Plate And Frame Heat Exchanger For Metallurgical Industry B30B SeriesSM0254 Gasketed Plate And Frame Heat Exchanger For Metallurgical Industry B30B Series

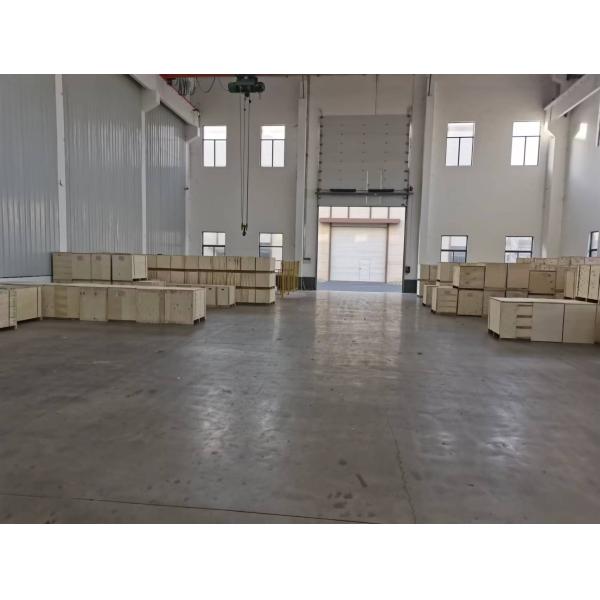

Package :

SM0254 Gasketed Plate And Frame Heat Exchanger For Metallurgical Industry B30B SeriesSM0254 Gasketed Plate And Frame Heat Exchanger For Metallurgical Industry B30B Series

SM0254 Gasketed Plate And Frame Heat Exchanger For Metallurgical Industry B30B Series
