High Pressure Brazed Plate Evaporator Employed In Chemical Reactors
High Pressure Brazed Plate Evaporator Employed In Chemical Reactors
Specifications
Brand Name :
Tenkai
Model Number :
UHP95BV
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
3 wooden packages
Price :
Negotiate
Payment Terms :
L/C, T/T, D/P at sight
Supply Ability :
280pcs/Day
Delivery Time :
Within 10 working days
Packaging Details :
Wooden Box Package
Splint Material :
Q235
Operating Temperature :
200 ℃
Bolt :
M16, M20
Connection Mode :
Male thread , Female thread, Flange, SAE Flange, Soldering
Warranty Period :
One year
Structure :
Plate Heat Exchanger
Design Pressure :
14Mpa
Test Pressure :
21Mpa
Max Flow :
42m³/h
HS CODE :
8419500090
Application :
Chemical Reactors, Distillation Columns, And Heat Recovery Systems
Description

Versatility High Pressure Brazed Plate Heat Exchanger Employed In Chemical Reactors, Distillation Columns, And Heat Recovery Systems

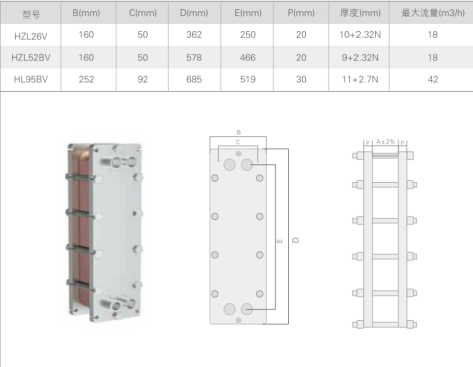

High Pressure Brazed Plate Evaporator Employed In Chemical Reactors

Introduction :

ULTRA HIGH PRESSURE BRAZED Plate Heat Exchanger adopt double splint design , make its compact structure and more pressure-bearing . It can use in heat pump system with R722(CO₂) refrigerating fluid .

The high-pressure brazed plate heat exchanger is a compact and efficient heat transfer device designed for applications that require high-pressure operation. It consists of a series of corrugated metal plates that are brazed together using a high-temperature process. This construction allows for excellent thermal performance and pressure resistance.

The heat exchanger is capable of handling extreme operating conditions, including high pressures and temperatures. It is commonly used in industrial processes such as oil and gas, chemical production, power generation, and refrigeration applications.

Applicable temperature : 200 ℃

Design Pressure : 14 Mpa

Test Pressure : 21 Mpa

Remark : splint material is Q235 , bolt for M16 , M20 , and available for suited lifting lug , footing , etc .

High Pressure Brazed Plate Evaporator Employed In Chemical Reactors

Workshop :

High Pressure Brazed Plate Evaporator Employed In Chemical Reactors

Package Area :

High Pressure Brazed Plate Evaporator Employed In Chemical Reactors

Copper Material :

High Pressure Brazed Plate Evaporator Employed In Chemical Reactors
