Max 2.5Mpa Gasket Plate Heat Exchanger For Domestic Hot Water Heat Transfer Device
Max 2.5Mpa Gasket Plate Heat Exchanger For Domestic Hot Water Heat Transfer Device
Specifications
Brand Name :
Tenkai
Model Number :
I150B
Certification :
ISO9001-2015
Place of Origin :
CHINA
MOQ :
1pcs in wooden box
Price :
Negotiate/Competitive
Payment Terms :
L/C, T/T, D/P, Western Union
Supply Ability :
180pcs/Day
Delivery Time :
Within five working days
Packaging Details :
Wooden Box Package
Material :
Carbon Steel
Max Design Pressure :
2.5 Mpa
Connection Mode :
Clamp,Flange,External thread
Warranty Period :
One year
Structure :
Gasket
HS CODE :
8419500090
Application :
Concentrated Heating/Textile/Paper making/HVAC/Chemical/Oil,gas/Metallurgial
Description

Gasket Plate Heat Exchanger Heat Transfer Device HS CODE 8419500090 I150B Series Carbon Steel Material

Applications:
GPHEs are used in various industries and applications where efficient heat transfer is required. Some common applications include HVAC systems, industrial processes, refrigeration, food and beverage processing, power generation, marine and offshore systems, and waste heat recovery.

Advantages:
GPHEs offer several advantages over other types of heat exchangers, including:

Compact size and high heat transfer efficiency due to the large surface area provided by the plates.
Flexibility and scalability, as additional plates can be added or removed to adjust heat transfer capacity.
Easy maintenance, with individual plates accessible for cleaning or replacement without disassembling the entire heat exchanger.
Versatility to handle a wide range of fluids, temperatures, and pressures.
Energy efficiency, with turbulent flow and efficient heat transfer contributing to reduced energy consumption.
Cost-effectiveness, with lower installation, operation, and maintenance costs compared to other heat exchanger types.
Limitations:
GPHEs may have some limitations, including:

Limited suitability for high-viscosity fluids or fluids with high fouling potential.
Potential for gasket wear or failure over time, requiring regular inspection and replacement.
Limited suitability for extremely high-temperature or high-pressure applications, where fully welded plate heat exchangers may be preferred.

TYPE A(mm) B(mm) C(mm) D(mm) E(mm) Height ( mm ) ( from middle of bottom to ground (mm)

MAX.LC

(mm)

 Connector Path (mm) Max Flow (m3/h) Design Pressure (Mpa) Max Pieces
I60B N(2.0+X) 320 140 920 689 115 1200 50 36 1.6 250
I60H N(3.0+X) 320 140 920 689 115 1200 50 36 1.6 203
I100B N(2.55+X) 470 225 1051 763 160 1600 100 140 1.0/1.6/2.5 278
I100H N(3.95+X) 470 225 1051 763 160 1600 100 140 .0/1.6/2.5 180
I130H N(3.95+X) 610 298 1591.4 1095.4 241 3000 150 360 1.0/1.6 600
I150B N(2.5+X) 610 298 1790 1294 250 3000 150 360 .0/1.6/2.5 600
I150H N(3.95+X) 610 298 1790 1294 250 3000 150 360 1.0/1.6/2.5 600

Max 2.5Mpa Gasket Plate Heat Exchanger For Domestic Hot Water Heat Transfer Device Max 2.5Mpa Gasket Plate Heat Exchanger For Domestic Hot Water Heat Transfer Device Max 2.5Mpa Gasket Plate Heat Exchanger For Domestic Hot Water Heat Transfer Device

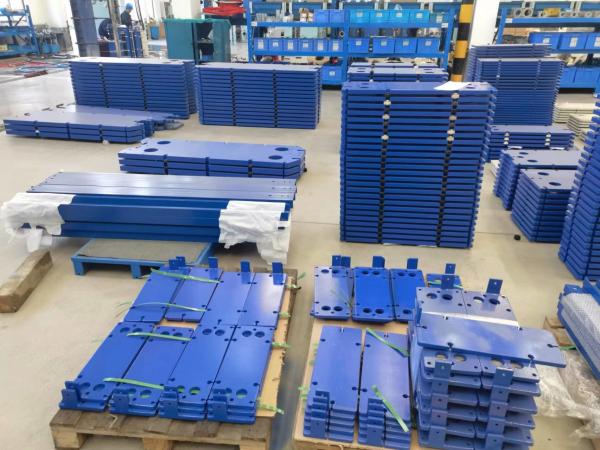

Workshop :

Max 2.5Mpa Gasket Plate Heat Exchanger For Domestic Hot Water Heat Transfer Device

Package :

Max 2.5Mpa Gasket Plate Heat Exchanger For Domestic Hot Water Heat Transfer Device

Max 2.5Mpa Gasket Plate Heat Exchanger For Domestic Hot Water Heat Transfer Device
