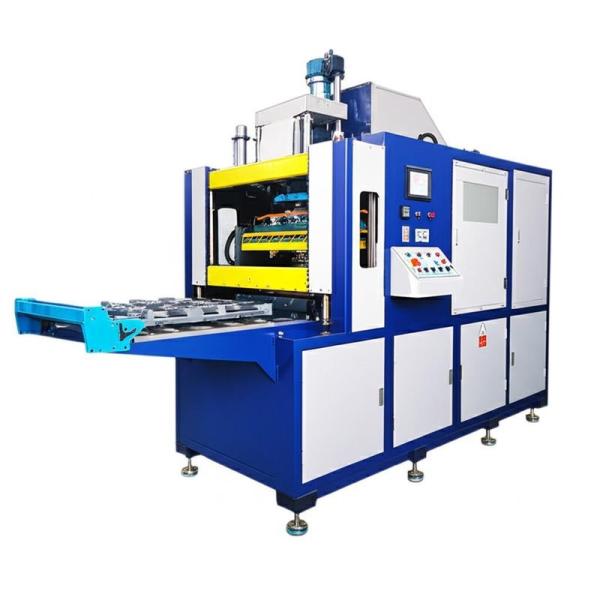

Automatic Plastic Cup Making Machine 420x730mm with PLC Control
Automatic Plastic Cup Making Machine 420x730mm with PLC Control
Automatic Plastic Cup Making Machine 420x730mm with PLC Control
Automatic Plastic Cup Making Machine 420x730mm with PLC Control
Specifications
Brand Name :
WX
Model Number :
730*420mm
Certification :
Video technical support, Free spare parts, Field installat
Place of Origin :
made in China
MOQ :
1SET
Price :
18571
Payment Terms :
L/C,T/T
Supply Ability :
1
Delivery Time :
30Days
Packaging Details :
4300*1500*2200mm
Processing Type :
Heating, Forming, Cutting Into One
Dimensions :
4100*1500*2200mm
Water consumption :
60-70L/min
Use air pressure :
0.7-1.0Mpa
Control System :
PLC, Gear
core components :
PLC
Years :
2021
key selling points :
Zero risk quarantee,Lifetime technical support,High cost performance
After-sales Service Provided :
Engineers available to service machinery overseas
Description
China Factory Direct Supply Plastic Cup Making Machine

Low Price High Quality Plastic Bowl Making Machine with versatile applications across multiple industries.

Applications
  • Plastic cups: including disposable plastic cups, suitable for cold drinks, fast food, and hot beverages
  • Jelly cups: plastic containers for packaging jelly and other desserts
  • Packaging containers: plastic packaging for various products including food and beverages
  • Beverage cups: specially designed for holding various drinks
  • Environmentally friendly cups: can use biodegradable materials like PLA (polylactic acid)
Technical Parameters
Model WX-720 WX-730 WX-750
Applicable sheet PP, PS, PET, PVC, PLA etc
Applicable material width ≤730mm ≤750mm ≤750mm
Applicable material thickness 0.15-2.5mm
Maximum forming area 420*730mm 450*750mm 550*750mm
Maximum stroke 200mm
Working efficiency <30Module/minute <28Module/minute <28Module/minute
Maximum heating power 95kw 110kw 110kw
Power supply 380V/50HZ (Three-phase four-wire)
Air pressure 0.6-0.8Mpa
Air consumption 3000L
Water consumption 40-45L/min
Mechanical dimensions 4100*1500*2200mm 4300*1500*2200mm 4300*1500*2200mm
Machine weight 5500kg 6000kg 7000kg

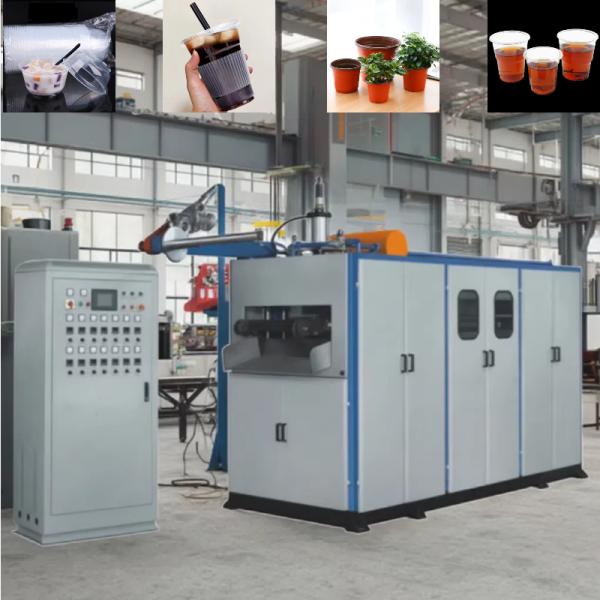

Sample Product
Automatic Plastic Cup Making Machine 420x730mm with PLC Control
Machine Production Process
Automatic Plastic Cup Making Machine 420x730mm with PLC Control
Support and Services
  • Installation assistance
  • Training for machine operation and maintenance
  • Troubleshooting guidance
  • Spare parts ordering and replacement
  • Regular maintenance and servicing options
Packing and Shipping

Product Packaging: The machine is carefully packaged with protective materials in sturdy cardboard boxes to prevent transit damage.

Shipping: We offer reliable shipping services with tracking numbers provided for shipment monitoring.

Frequently Asked Questions
Q: What is the brand name of this Plastic Thermoforming Machine?
A: The brand name is WX.
Q: What is the model number of this Plastic Thermoforming Machine?
A: The model number is 730*420mm.
Q: Where is this Plastic Thermoforming Machine made?
A: It is made in China.
Q: Does this Plastic Thermoforming Machine have any certification?
A: Yes, it is CE certified.
Q: What is the minimum order quantity for this Plastic Thermoforming Machine?
A: The minimum order quantity is 1 set.
Q: What is the delivery time for this Plastic Thermoforming Machine?
A: The delivery time is 30 days.
