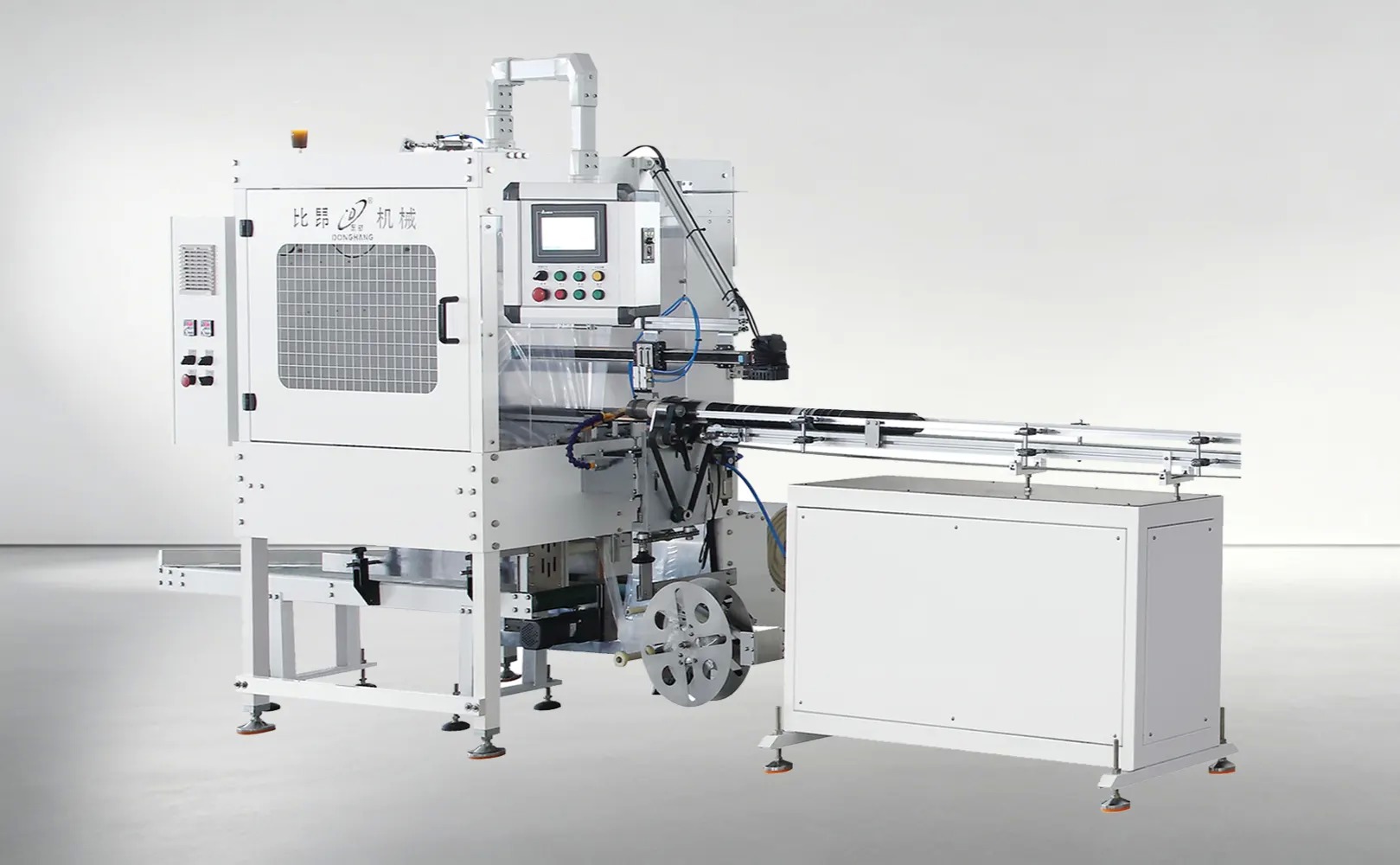

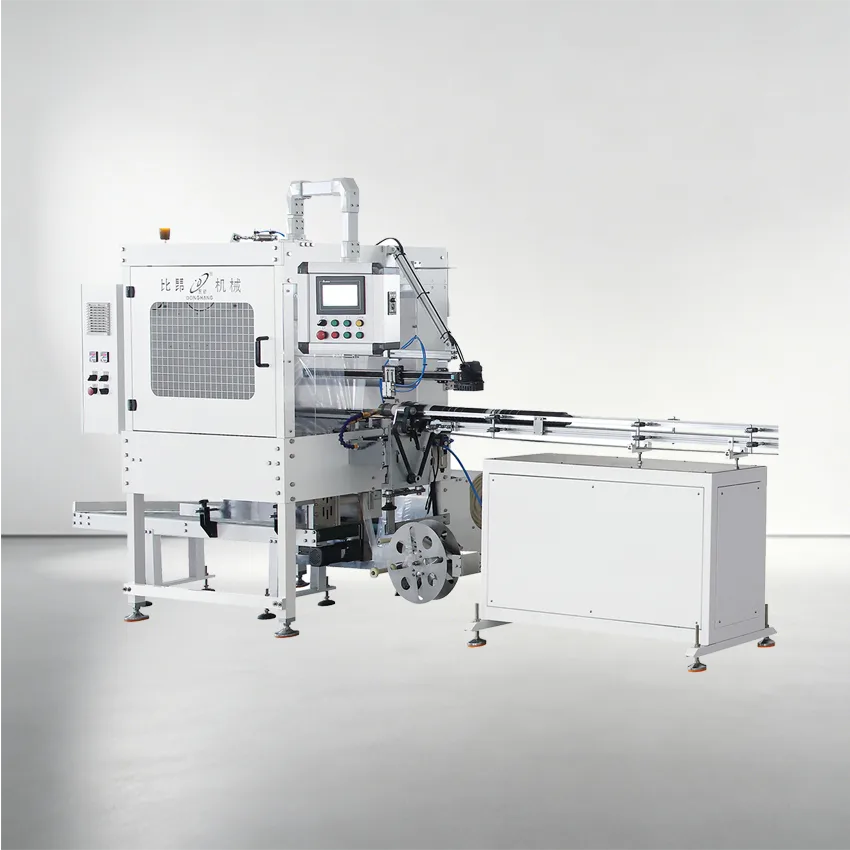

Auto. Plastic Cup Packing Machine DH650
Auto. Plastic Cup Packing Machine DH650
Auto. Plastic Cup Packing Machine DH650
Auto. Plastic Cup Packing Machine DH650
Auto. Plastic Cup Packing Machine DH650
Auto. Plastic Cup Packing Machine DH650
Auto. Plastic Cup Packing Machine DH650
Auto. Plastic Cup Packing Machine DH650
Specifications
Model Number :
Auto. Plastic Cup Packing Machine DH650
Lid Diameter :
40 – 120mm
Certification :
CE Certification
Brand Name :
Wenzhou Beyond Machine Co., Ltd.
Packing Material :
HDPE,LDPE,PP etc
Place of Origin :
CHINA
Description

Auto. Plastic Cup Packing Machine DH650

Auto. Plastic Cup Packing Machine DH650

Prepare finished cup stacks for sale with the DH650 automatic cup packing machine.

The machine brings counting and packing into one process for already manufactured cups. Set the bag quantity around your cup stack, then use the selected film to form and seal the package.

Product Overview

Features:

  • All-in-one feeding, counting, and packing
  • PLC controlled

Scope of Application

Auto. Plastic Cup Packing Machine DH650 Auto. Plastic Cup Packing Machine DH650

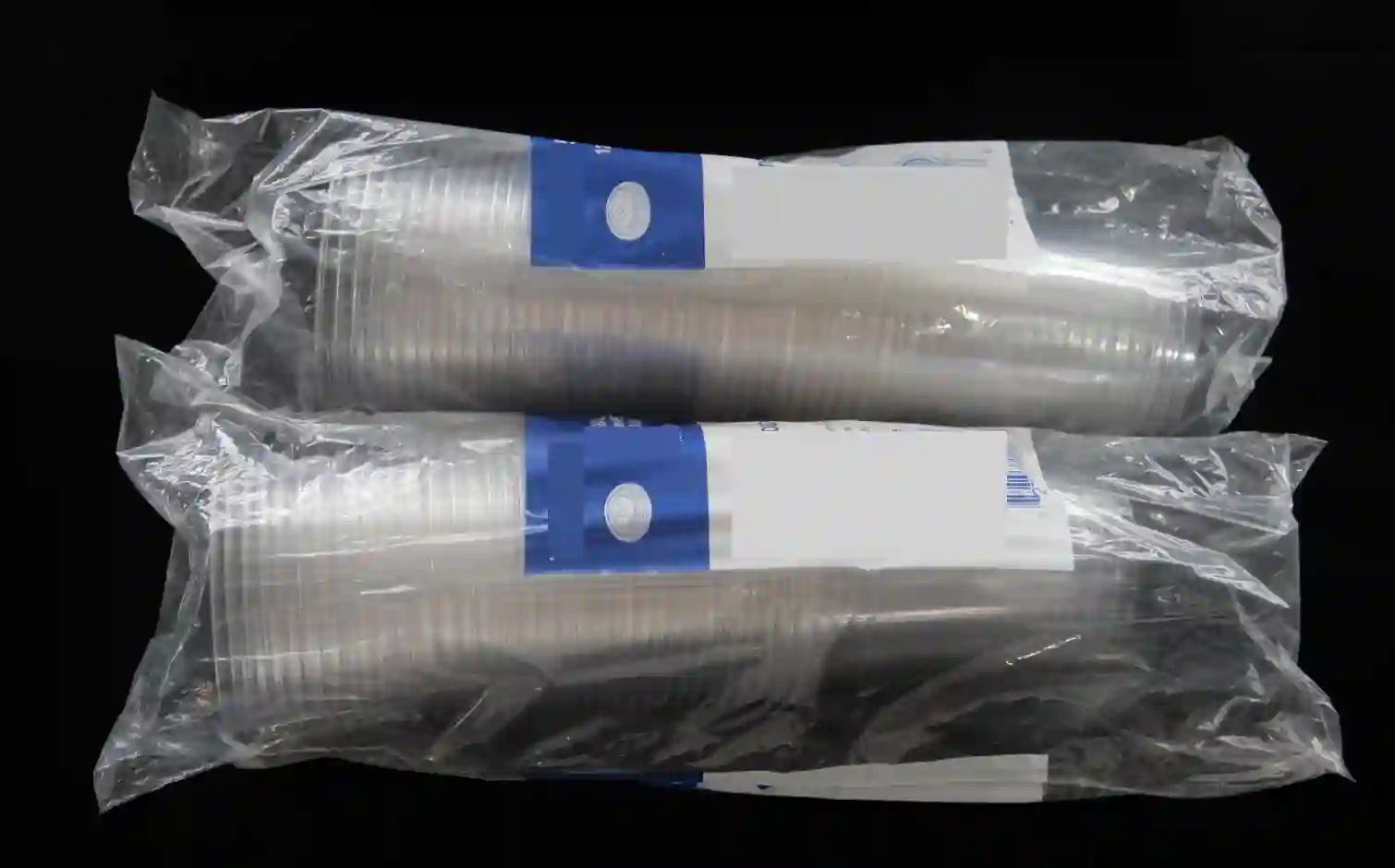

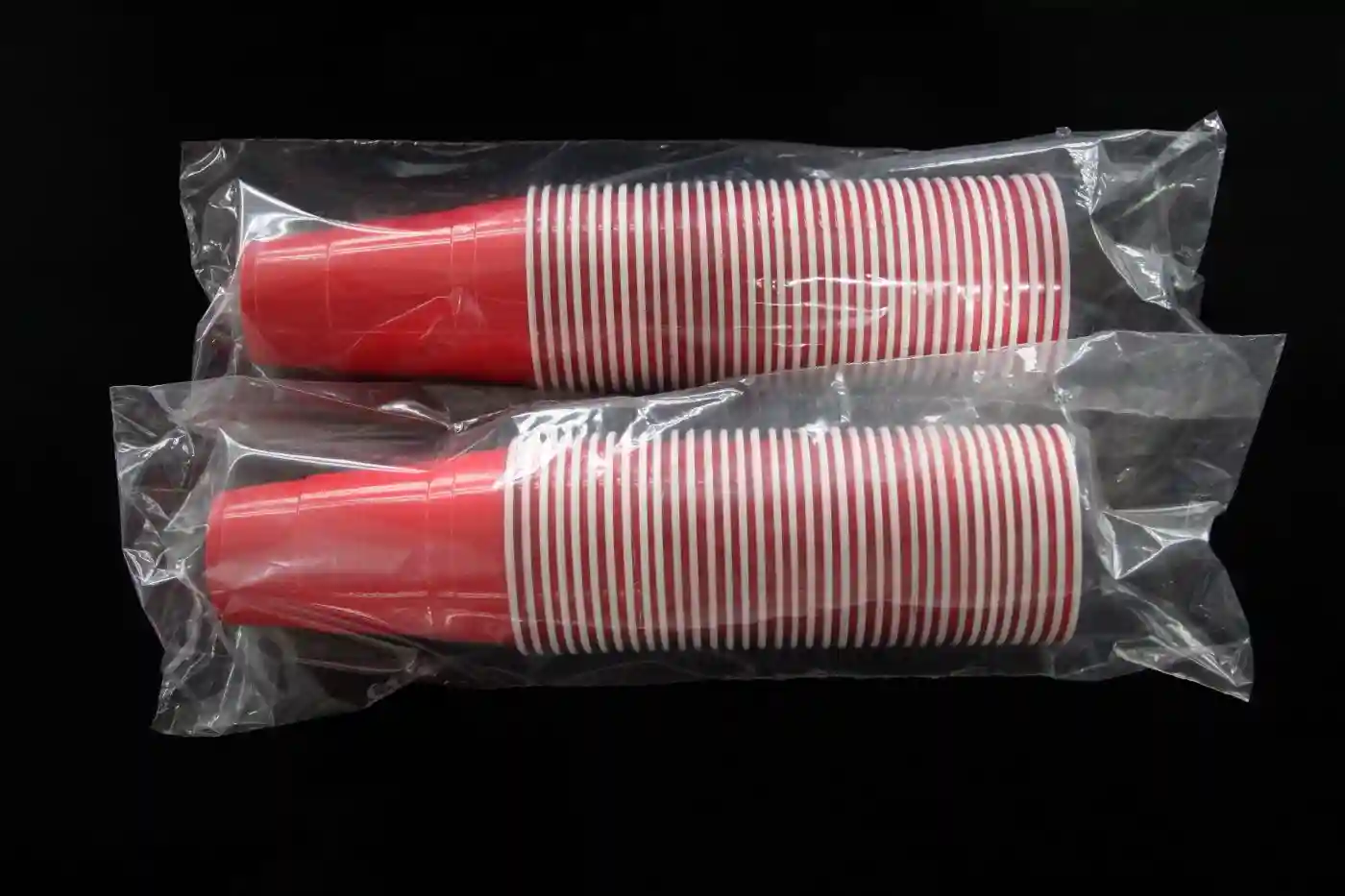

PET Cup Packing PS Cup Packing

Technical Specifications Of DH650 Cup Packing Machine


 DH650
Packing Material HDPE,LDPE,PP etc
Packing Speed
8 – 15pcs/min
Lid Diameter
40 – 120mm
Packing Length
520 – 650mm
Thickness of Packing Film
0.015 – 0.04 mm
Total Power
4.5kW
Air Source
0.6MPa
Dimension(L×W×H)
4.9×1.5×2m
Weight
700kg
Power Supply
380V, 3Ph, 50Hz

Packing Process

Auto. Plastic Cup Packing Machine DH650 Auto. Plastic Cup Packing Machine DH650 Auto. Plastic Cup Packing Machine DH650

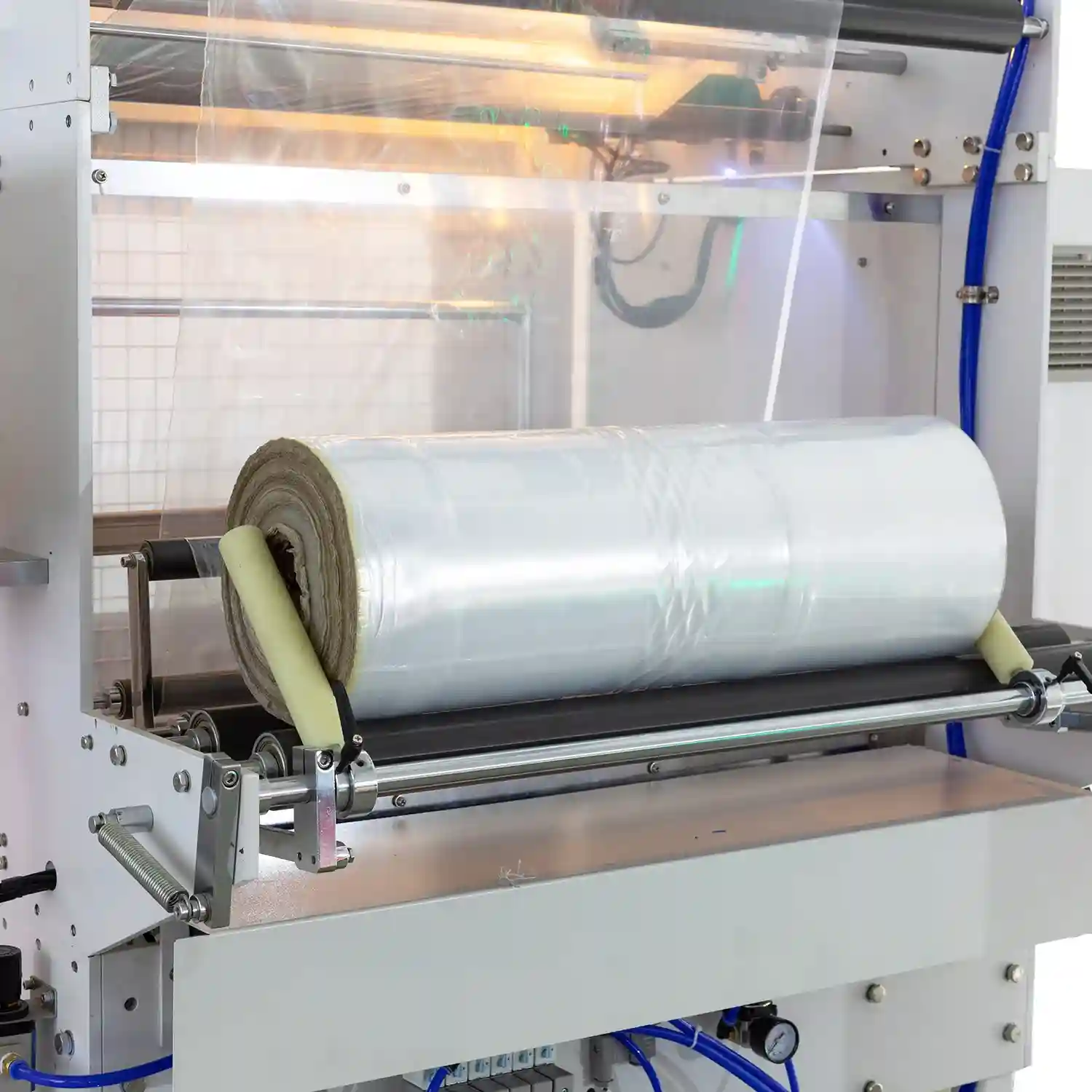

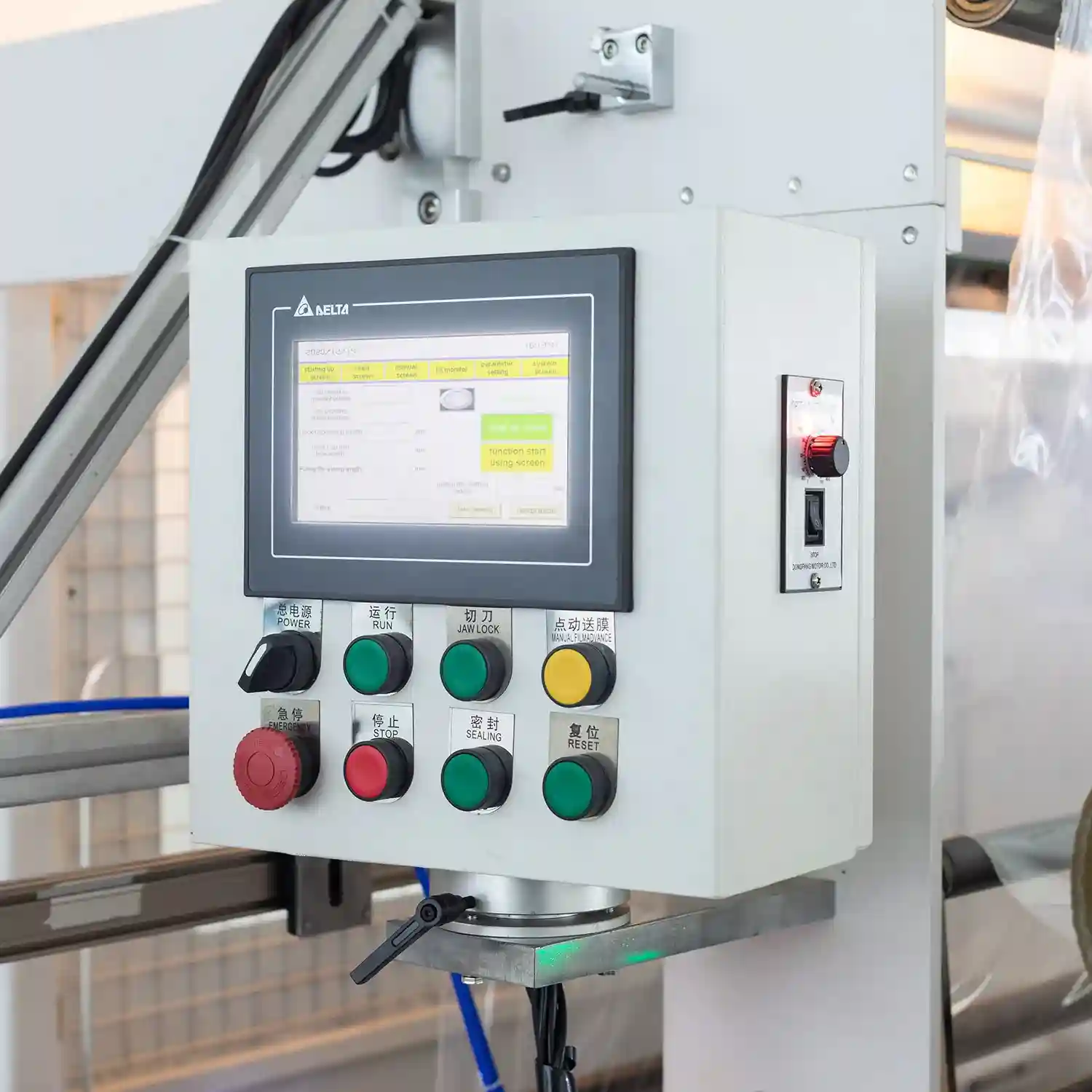

PLC CONTROL FEEDING CUP FEEDING
Auto. Plastic Cup Packing Machine DH650 Auto. Plastic Cup Packing Machine DH650 Auto. Plastic Cup Packing Machine DH650

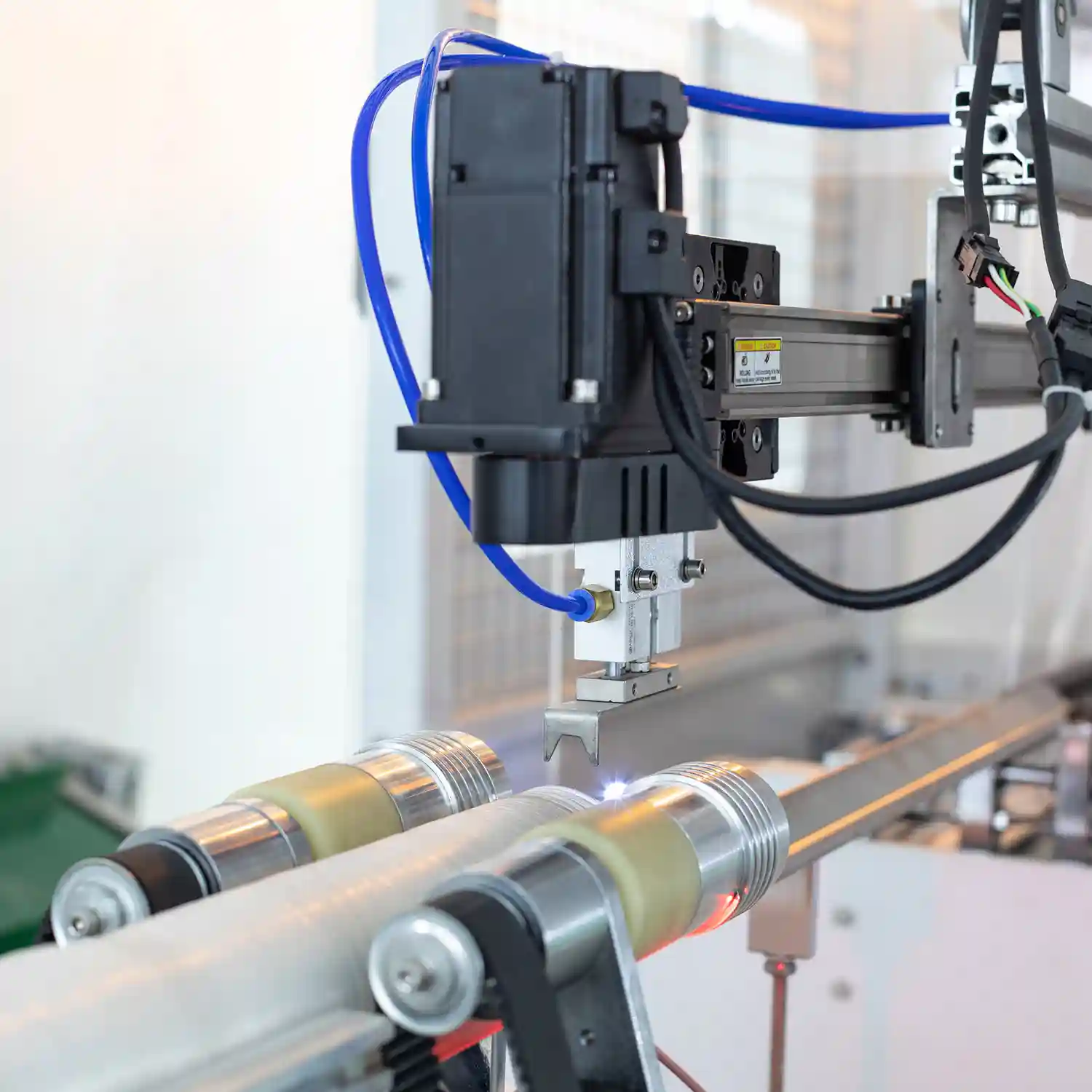

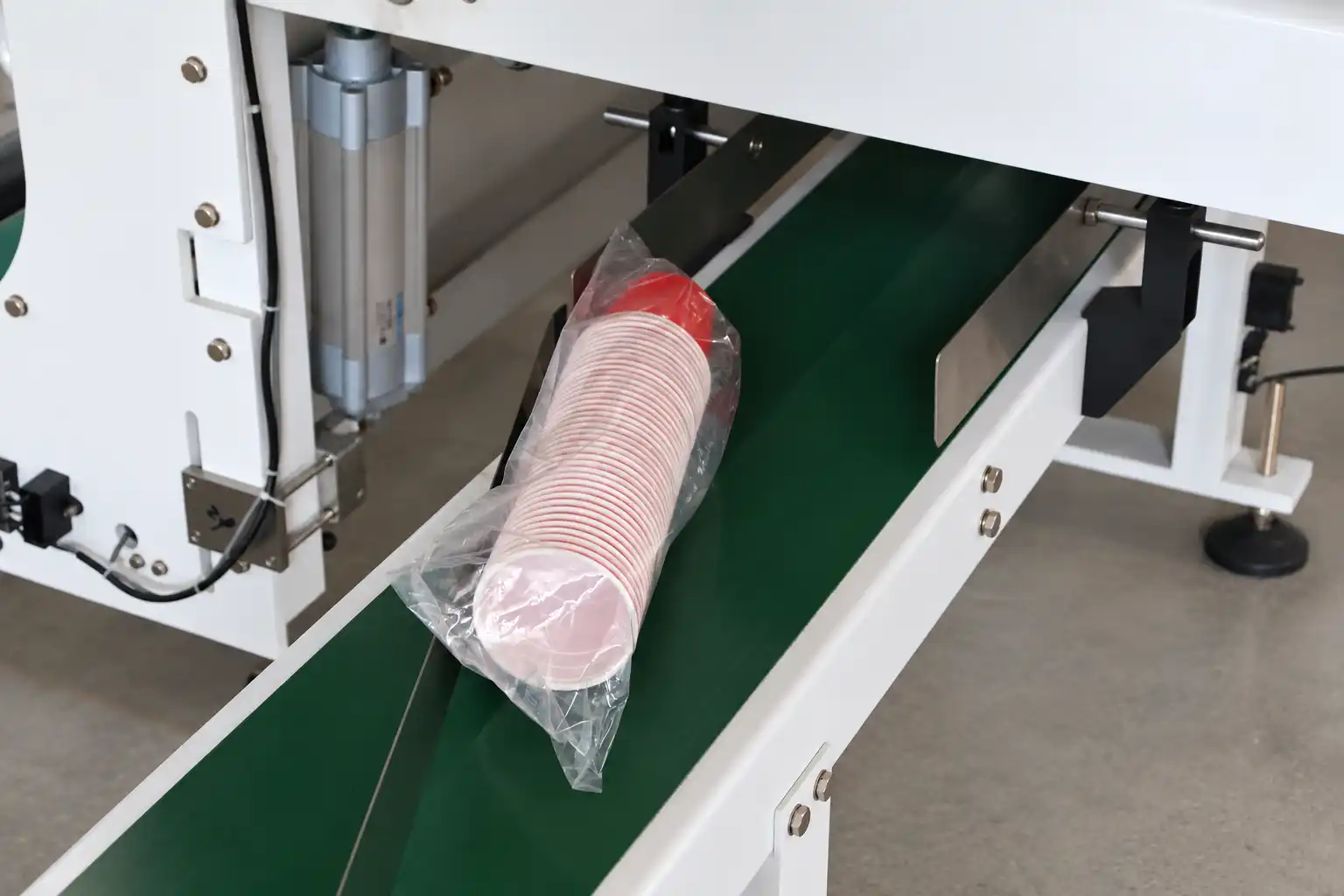

CUTTING DEVICE PACKING PACKING CONVEYOR

Frequently asked questions

Is diameter alone enough to confirm compatibility?

No. Review the full product profile, film and feeding arrangement with actual samples.
