ODM Single Column Digital Tensile Testing Machine Apparatus High Accuracy
ODM Single Column Digital Tensile Testing Machine Apparatus High Accuracy
ODM Single Column Digital Tensile Testing Machine Apparatus High Accuracy
ODM Single Column Digital Tensile Testing Machine Apparatus High Accuracy
ODM Single Column Digital Tensile Testing Machine Apparatus High Accuracy
ODM Single Column Digital Tensile Testing Machine Apparatus High Accuracy
Specifications
Place of Origin :
China
Brand Name :
GC
Certification :
ISO
MOQ :
1 Set
Packaging Details :
Wooden package
Delivery Time :
In stock
Payment Terms :
TT
Supply Ability :
100 Sets
Price :
Negotiated
Model Number :
GC-WD-500S
Max Diameter of Workpiece :
<500mm
Mass Scope of Workpiece :
<900kg
Type :
Strength Testing Machine
Maxcapacity :
<1000KN
Accuracy Grade :
0.5
Load Way :
Electronic Load
Loading Method :
Dynamic Load
Display :
Digital
Control :
Computer Control
Weight :
100-500Kg
Power Source :
AC220V
Oil Cylinder Position :
Under
Control Motor :
AC Servo Motor
Power Unit :
N,Kg,Lb,kN...
Servo Drivers :
AC Drive
Transport Package :
Wooden Package
Specification :
46*45*138cm
Trademark :
GC
Origin :
China
Package Size :
46.00cm * 45.00cm * 138.00cm
Package Gross Weight :
220.000kg
Customization :
Available
Warranty :
1 Year
Description

Single Column Tensile Test Machine With Durable And High Accuracy

Product Description

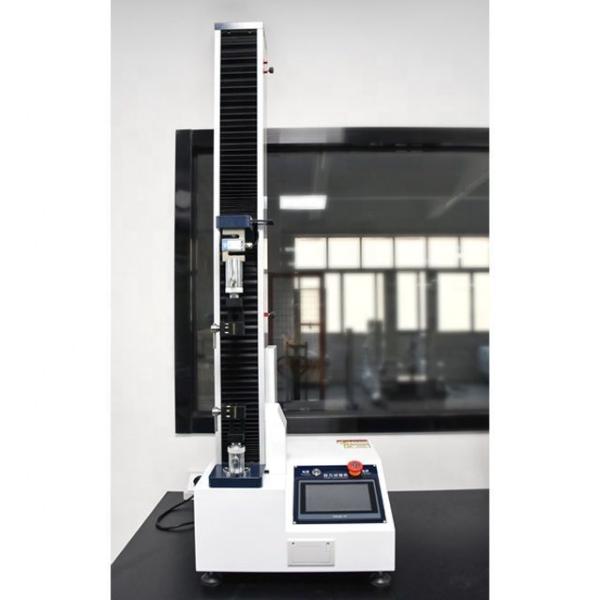

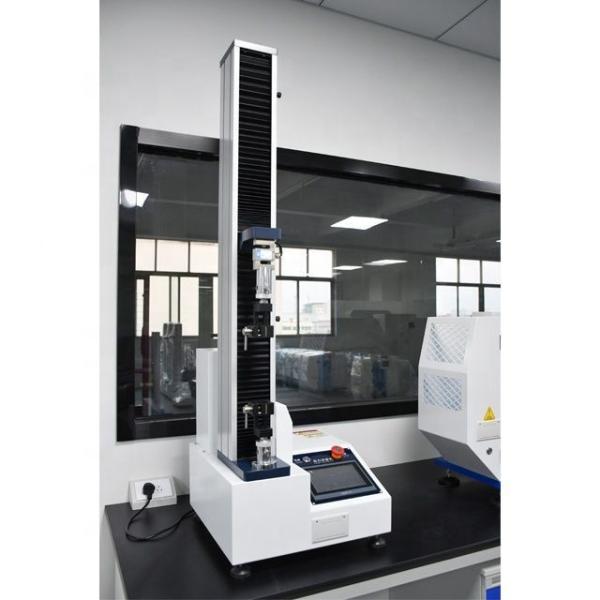

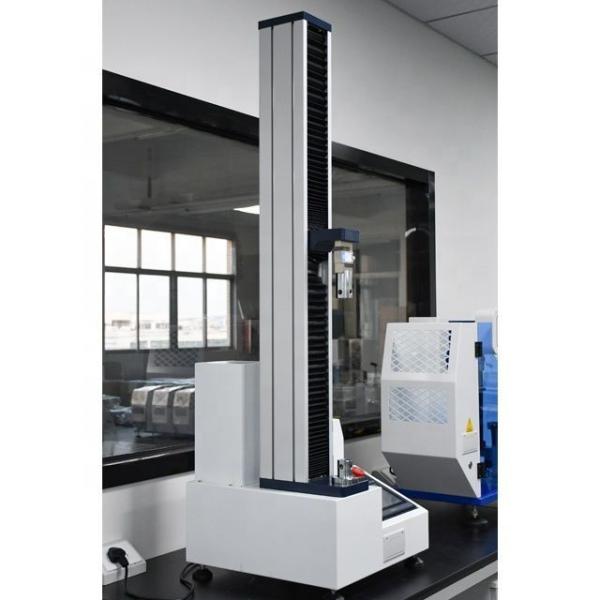

-The single-column universal tensile testing machine is a type of testing device used to measure the tensile strength of materials.
It consists of a single vertical column with a movable crosshead that applies a tensile force to a sample material.


-The machine is commonly used in materials testing laboratories to evaluate the mechanical properties of various materials such as metals, plastics, rubber, and composites. The test results obtained from the machine can be used to determine the material's tensile strength, elongation, and other mechanical properties.

ODM Single Column Digital Tensile Testing Machine Apparatus High Accuracy

Product Parameters
Model GC-WD-500S
Type Single column (gantry-type)
Load Range 0~50KN(0-500KG optional )
Control Motor AC servo motor
Servo drivers AC drive
Test Speed 0.01~500mm/min
Power Accuracy ≤0.5%
Resolution 1/250000
Power Unit N,kg,Lb,KN...
Extensometer Professional Large Deformation Extensometer (optional)
Extensometer accuracy ±0.01mm(optional)
Test Stroke 800mm(optional)
Test width 400mm(optional)
Control mode Computer software control
Fixture configuration Including a set of conventional limit test fixture
Proctective device Leakage protection, overload automatic shutdown protection, travel switch protection, etc
Protected mode Mirco printout
Power 220V/50HZ
