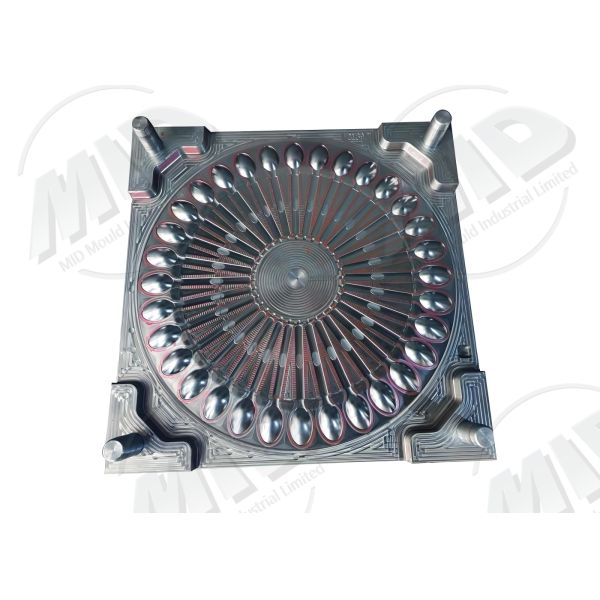

H13 S136 Steel Multi Cavity Molds 1M Cycles CNC Injection Mold For ABS PP PS
H13 S136 Steel Multi Cavity Molds 1M Cycles CNC Injection Mold For ABS PP PS
Specifications
Brand Name :
MID MOULD
Place of Origin :
Dongguan, China
MOQ :
1 set
Payment Terms :
50% deposit + 30% upon first sample + 20% after sample approval or before final mold shipment
Delivery Time :
25–45 working days (longer for complex tools)
Certification :
ISO9001,FDA,ISO13485
Price :
USD $3,000–$50,000 per set (depending on complexity)
Packaging Details :
Wooden case + anti-rust oil + protective film + packing list
Supply Ability :
20–35 sets per month, depending on structure
Product name :
Multi Cavity Molds
Shaping mode :
Plastic Injection Mould,Plastic injection molding,Compression Mould
Material :
STEEL,ps,PP,Steel and metal,aluminum
Product :
Vehicle Mould,Household Appliance,plastic injection mold,injection machine mold,Household Product
Mould life :
250000-300000shots,200~1 M available,300,000shots,000 times
Runner :
Hot Runner\ Cold Runner,cold/hot
Cavity :
Multi Cavity,as per client's requirement
Product material :
Plastic,Steel,PP,ABS,PS
Mold material :
NAK80,H13,50#,P20,45#
Design software :
CAD,CAD/ProE/UG/SOLIDWORKS,CAD UG Moldflow,Solidworks,PROE
Mould material :
P20/718/738/NAK80/S136,P20/718/2738/H13/S136/NAK80,718,SKD61 etc,H13
Application :
Home Appliance,Industrial,Automotive,various range,Machine
Mould base :
non-Standard plastic injection mould,World standard,European standard,LKM.HASCO,HASCO standard
Surface treatment :
sandblasted,Texture,anodizing black,clear painting,Polishing
Size :
as samples/drawings,customized accepted,Customized Size
Mold runner :
Hot&Cold runner you can choose,Hot runner and code runner
Mold life :
000 to 1,500000 shots,000 shots,100000-1000000,50
Plastic material :
Peek,ABS/PP/PS/PE/PVC/PA6/PA66..et,MC Nylon,Derlin,UHMW-PE
Description
Product Process

The multi-cavity design enables simultaneous injection molding of multiple plastic parts within the same mold, making it suitable for industries requiring the highest consistency.

Process Flow
  1. Product Requirements Analysis and Cavity Layout
  2. CAD Design of Runner and Gate Systems
  3. CNC Precision Machining
  4. Mold Assembly and Cooling System Testing
  5. Trial Molds to Verify Product Consistency in Each Cavity
Product Specifications
Item Parameter Description
Mold TypeMulti-Cavity Injection Mold
Mold MaterialH13 S136
Cavities2–48
Mold Life1 Million Cycles
Surface TreatmentPolishing, Nitriding
Applicable MaterialsABS, PC, PP, PS
Product Accuracy±0.015mm
Cooling SystemPrecision Water Cooling
Injection Molding Machine Compatibility150T–600T
Product Cycle45–65 Days
Product Applications
  • Medical Syringes
  • Small Electronic Components
  • Cosmetic Packaging Accessories
Product Advantages
  • High Precision and Consistency
  • Increase Production and Efficiency
  • Reduce Labor and Energy Consumption
  • Long Service Life
FAQ

Q1: Are multi-cavity molds suitable for small parts?

A1: Yes. Small parts are particularly well-suited for multi-cavity solutions.

Q2: How to ensure flow channel balance?

A2: Use CAE software for simulation optimization.

Q3: Does it support quick mold changes?

A3: Yes, we can design quick-change features based on customer needs.

Q4: Can multi-cavity molds be used for transparent parts?

A4: Yes, but the cavities must be polished.

Q5: Can mold life be extended?

A5: Regular maintenance and coating can extend mold life.

Customized Services

We support custom multi-cavity molds for special structures, transparent parts, and high-precision parts to meet diverse customer needs.
