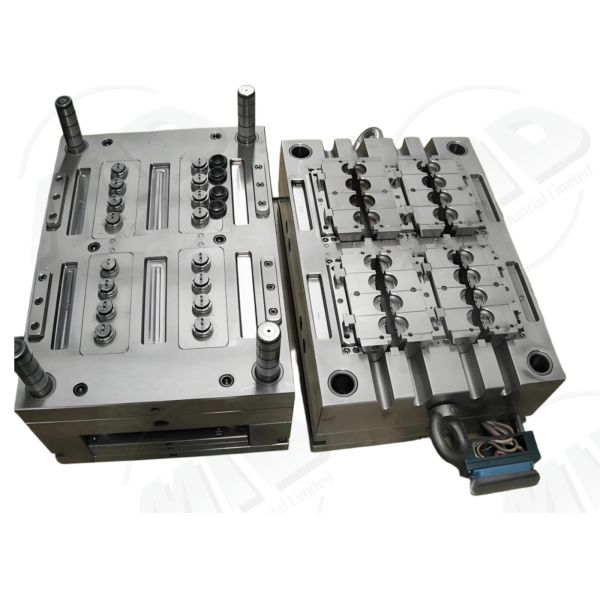

1 - 4 Cavities Unscrewing Molds M6 - M70 Threads Parts Injection Mold For Injection Molding
1 - 4 Cavities Unscrewing Molds M6 - M70 Threads Parts Injection Mold For Injection Molding
Specifications
Brand Name :
MID MOULD
Place of Origin :
Dongguan, China
MOQ :
1 set
Payment Terms :
50% deposit + 30% upon first sample + 20% after sample approval or before final mold shipment
Delivery Time :
25–45 working days (longer for complex tools)
Certification :
ISO9001,FDA,ISO13485
Price :
USD $3,000–$50,000 per set (depending on complexity)
Packaging Details :
Wooden case + anti-rust oil + protective film + packing list
Supply Ability :
20–35 sets per month, depending on structure
Product name :
Unscrewing Molds
Product :
Vehicle Mould,Household Appliance,plastic injection mold,injection machine mold,Household Product
Mould life :
250000-300000shots,200~1 M available,300,000shots,000 times
Runner :
Hot Runner\ Cold Runner,cold/hot
Shaping mode :
Plastic Injection Mould,Plastic injection molding,Compression Mould
Cavity :
Multi Cavity,as per client's requirement
Material :
STEEL,ps,PP,Steel and metal,aluminum
Product material :
Plastic,Steel,PP,ABS,PS
Mold material :
NAK80,H13,50#,P20,45#
Design software :
CAD,CAD/ProE/UG/SOLIDWORKS,CAD UG Moldflow,Solidworks,PROE
Mould material :
P20/718/738/NAK80/S136,P20/718/2738/H13/S136/NAK80,718,SKD61 etc,H13
Application :
Home Appliance,Industrial,Automotive,various range,Machine
Mould base :
non-Standard plastic injection mould,World standard,European standard,LKM.HASCO,HASCO standard
Surface treatment :
sandblasted,Texture,anodizing black,clear painting,Polishing
Size :
as samples/drawings,customized accepted,Customized Size
Mold runner :
Hot&Cold runner you can choose,Hot runner and code runner
Mold life :
000 to 1,500000 shots,000 shots,100000-1000000,50
Plastic material :
Peek,ABS/PP/PS/PE/PVC/PA6/PA66..et,MC Nylon,Derlin,UHMW-PE
Description
Product Technology

The unscrewing mold utilizes a precise rotating mechanism to ensure smooth demolding of threaded parts, preventing mold jams and ensuring high precision and efficiency.

Process Flow
  1. Thread Geometry Design and Analysis
  2. 3D Modeling and Simulation
  3. Precision Machining and Surface Polishing
  4. Installation of Rotating Mechanism and Cooling System
  5. Mold Trial, Debugging, and Verification
Product Specifications
Item Parameter Description
Mold Type Automatic Unscrewing Injection Mold
Mold Material S136 / H13 / P20
Number of Cavities 1–4
Thread Diameter M6–M70
Mold Life 700,000–1.2 Million Molds
Mold Release Method Automatic Unscrewing
Product Accuracy ±0.02–0.03mm
Cooling System Independent Cooling Channels
Drive Hydraulic / Motor
Production Cycle 50–75 Days
Product Applications
  • Suitable for small and medium-volume production of precision threaded parts
  • Can meet the needs of threaded products with different diameters
  • Widely used in products requiring high consistency
Product Advantages
  • Stable Thread Accuracy
  • Avoids Forced Ejection Damage
  • Automation Improves Efficiency
  • Reliable Mold Structure
FAQ
Q1: What is the thread diameter range?
A1: Generally between M6 and M70, customizable.
Q2: How many cavities can the mold have?
A2: 1–4 cavities, selectable based on production volume.
Q3: Is it suitable for different plastics?
A3: It is suitable for common materials such as ABS, PP, PA, and PC.
Q4: Will the threads get stuck?
A4: No. The rotary demolding design prevents jamming.
Q5: Is it customizable?
A5: We can provide customization of dimensions, drive type, and cooling system.
Personalized Customization Service

We offer flexible customization of thread diameter, number of cavities, and drive type, and support interface design with the customer's production line automation equipment.
