Transparent Plastic Thermoplastic Extrusion Machine With Bimetallic Screw Barrel
Transparent Plastic Thermoplastic Extrusion Machine With Bimetallic Screw Barrel
Specifications
Brand Name :
YUREFON
Model Number :
SJ120
Certification :
CE SGS
Place of Origin :
JIANGSU CHNA
MOQ :
1SET
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
20SETS/YEAR
Delivery Time :
120DAYS
Packaging Details :
WOOD BASE
Name :
Plastic Sheet Extrusion Line
Raw Material :
PET Flakes/Granules
Screw Barrel :
Bimetallic
Gearbox :
Guomao
Motor :
Siemens Original
Inverter :
ABB
Main Electrical Parts :
Siemens Schneider
After Sales Service :
Engineer Overseas Service
Motor power :
110kw
extrusion Capacity :
350kg/h
Description

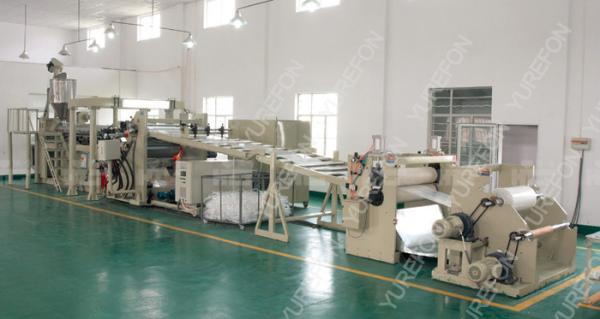

Thermoforming Transparent Plastic Sheet Extrusion making machine, APET/PETG/CPET/PLA sheet production line

APET / PETG / CPET/PLA Sheet Extrusion Making machine

It’s one of the most advanced production lines with matured technology and stability in China. Compared with other same kind equipment, it’s over 30% higher in overall efficiency. The line is also suitable for PS, PP, PE sheet production.

No Crystallizer &Dryer, Double Vents

Free of crystallization drying system, the new designed line can greatly reduce cost of production.

Machine Parts of Plastic Sheet Extrusion making machine, sheet production line:


1. PET Non-crystallization extruding system :The newest screw thread unit, low power consumption, high output, is suitable for PET sheet extruding.

2. Three roller calender: The high-precision three roller calender forming system, with servo control, hydraulic compress structure, is cuitable for the stable extrusion of sheet thickness at 0.15mm.

3. Precision die system:Can choose the self-regulation die to realize the change between extrusion mode and casting mode, is suitable for the sheet with different thickness.

4. Automatic rolling & cutting device:Easy to adjust, cuting straightness is high.Thickness:0.8-10mm,width:800-2000mm

Specification of Plastic Sheet Extrusion making machine, sheet production line

SPECIFICATIONS FOR Pet/PETG/Petc Precision Sheet Making Machine

Model

SJ120-GF1200 high exfficient

GP-75/40-GF1000 Non crystalline

Extruder Model

SJ120/35 single screw

GP75/40 parallel double screw

Main motor power

110KW

132KW

Products thickness

0.15-1.5mm

0.15-1.5mm

Capacity

500kg/h

600kg/h

PAR T1 THIS LINE CONSISTS OF (COMPULSORY)

1

Automatic vacuum feeding machine

1 set

2

High efficiency single screw extruder (65/33, 75/33,90/33,120/33)

1 set

3

Hydraulic exchanging unit

1 set

4

Melting gear pump

1 set

5

T-type /hanger type die head (JC-Times brand)

1 set

6

Three Roller Calendars (alloy steel material )

1 set

7

Rollers thermoforming machine

1 set

8

Cooling frame and edge cutting unit

1 set

9

Haul off machine

1 set

10

Plastic cutting machine-guillotine

1 set

11

Twin position sheet winder

1 set

12

Stacker

1 set

13

Electrical cabinet (ABB,Omron, RKC,Schneider, Siemens etc)

14

Spare parts

1 set

PART 2 ACCESSORY MACHINE PARTS (OPTIONAL)

1

Air compressor

1 set

2

Industrial water chiller

1 set

PART 3 SHEET SPECIFICATIONS

1

Sheet width

600-800mm

2

Sheet thickness

0.2-2mm

3

Type

Pet single layer/mono layer sheets

4

Raw material

1. Can be virgin plastic pet material
2. Can be recyclable material, like PET Bottle Flakes

PART 4 SHEET APPLICATIONS

1

Packing, printing, stationery, art works etc.

2

Main Products: Gift/ad/file bag/lamp cover/food packaging
