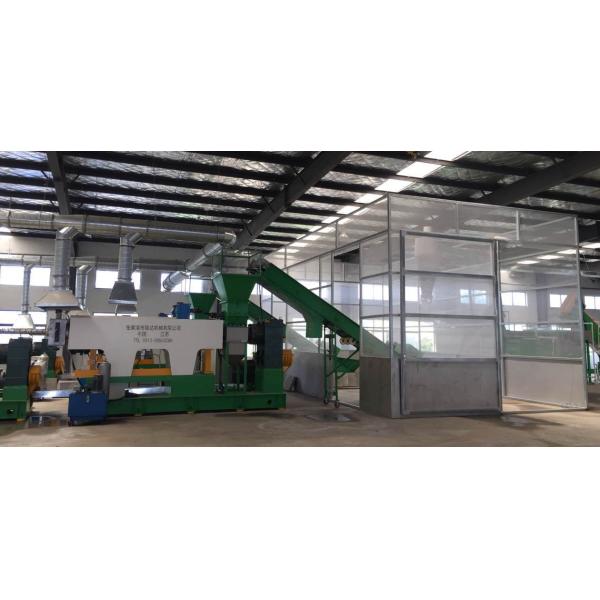

3Phase Film Plastic Pelletizing Machine 1000kg/H Plastic Granulating Machine
3Phase Film Plastic Pelletizing Machine 1000kg/H Plastic Granulating Machine
3Phase Film Plastic Pelletizing Machine 1000kg/H Plastic Granulating Machine
3Phase Film Plastic Pelletizing Machine 1000kg/H Plastic Granulating Machine
3Phase Film Plastic Pelletizing Machine 1000kg/H Plastic Granulating Machine
3Phase Film Plastic Pelletizing Machine 1000kg/H Plastic Granulating Machine
3Phase Film Plastic Pelletizing Machine 1000kg/H Plastic Granulating Machine
3Phase Film Plastic Pelletizing Machine 1000kg/H Plastic Granulating Machine
3Phase Film Plastic Pelletizing Machine 1000kg/H Plastic Granulating Machine
3Phase Film Plastic Pelletizing Machine 1000kg/H Plastic Granulating Machine
Specifications
Brand Name :
LIANDA
Model Number :
LDZL-800
Certification :
CE,SGS,ISO9001
Place of Origin :
CHINA
MOQ :
1set
Payment Terms :
T/T, L/C, Western Union
Delivery Time :
45 working days
Packaging Details :
Factory standard package or customized package
Voltage :
380V 50HZ 3Phase or customized
Warranty :
1 Year
Application :
Plastic Recycling
After-sales service provided :
Engineers available to service machinery overseas
Production capacity :
300-1000kg/h
Material processed :
Plastic PP PE BOPP LDPE HDPE Film, Greenhouse/Agricultural film,PP Woven bag, plastic bag, PP Jumbo bag etc
Plastic type :
Plastic film/bag
Final product :
Clean Plastic Granules
Product name :
plastic recycling machine,waste pp pe bags washing granulating recycle line,PP Jumbo bag recycling line,PP Raffia bag pelletizing line
Keywords :
Plastic bag recycling machine line, waste plastic recycling machine, PP Jumbo bag recycling machine, PP/PE Film recycling equipement
Material :
Plastic PP PE BOPP LDPE HDPE Film, Greenhouse/Agricultural film,PP Woven bag, plastic bag, PP Jumbo bag etc
Motor :
Wannan Motor,Siemens or customized
Description

Raffia bag/PP Jumbo bag/ Non-woven bag Granulating Line

3Phase Film Plastic Pelletizing Machine 1000kg/H Plastic Granulating Machine


LIANDA Design

1. Applied for

  • Plastic PP PE BOPP LDPE HDPE Film, Greenhouse/Agricultural film,PP Woven bag, plastic bag, PP Jumbo bag etc

  • The production line is made up of
No Machine Name Quatity (set)
1 Belt conveyor 1
2 Forced feeder 1
3

Single Screw Extruder

(Single or Double step )

 1
4 Hydraulic screen changer (Double working position no need stop machine while change the screen ) 1
5 Water-ring pelletizing system 1
6 Dewatering machine 1
7 Vibrating sieve 1
8 Air conveying system + storage 1
9 Control system 1
  • Machine model
Model LD-100/90 LD-120/100 LD150/120 LD200/160
SJ-100 SJ90 SJ120 SJ100 SJ150 SJ120 SJ200 SJ160

Screw diameter

(mm)

 100 90 120 100 150 120 200 160
L/D 25-33 8-10 25-33 8-10 25-33 8-10 25-28 8-10

Output

(kg/h)

 100-160 100-160 150-200 150-200 250-350 250-350 400-600 400-600


3.Working processing

Plastic Film Granulating Line Capacity (300-1000kg/h)
Detailed technical parameters, please contact us
1 Belt conveyor 1unit
Belt conveyor will convey the material to Forded feeder.
Motor brand: Siemens Bade

3Phase Film Plastic Pelletizing Machine 1000kg/H Plastic Granulating Machine
Frequency speed control
Install the anti-sliding partition bar on the surface of the adhesive tape
Adopt PVC Rubber belt

Adjust the belt elasticity freely
Install the shift truckle on base, it is flexible & convenient
2 Forced feeder 1unit

LIANDA patent design

3Phase Film Plastic Pelletizing Machine 1000kg/H Plastic Granulating Machine

Frequency speed control
3 Single Screw Extruder (First step ) 1unit

Screw material: adopt 38CrMoAlA,
With Nitrided treatment

3Phase Film Plastic Pelletizing Machine 1000kg/H Plastic Granulating Machine
Special design on screw structure especially for washed film ( wet film )
Feeding part adopt electrical magnetic heating
After feeding part adopt electrical heating
Adopt fan cooling
4 Hydraulic screen changer system 1set
Double working position

3Phase Film Plastic Pelletizing Machine 1000kg/H Plastic Granulating Machine

Hydraulic plate form screen changer
4 Single Screw Extruder (Second step) 1unit

Screw material: adopt 38CrMoAlA,
With Nitrided treatment

3Phase Film Plastic Pelletizing Machine 1000kg/H Plastic Granulating Machine
Special design on screw structure especially for washed film ( wet film )

Adopt electrical heating
5 Hydraulic screen changer system 1set
Double working position

3Phase Film Plastic Pelletizing Machine 1000kg/H Plastic Granulating Machine
Hydraulic plate form screen changer
6 Water-ring pelletizer system (2 types for choosen) 1set
Vertical pelletizer system

3Phase Film Plastic Pelletizing Machine 1000kg/H Plastic Granulating Machine
Horizontal pelletizer system

3Phase Film Plastic Pelletizing Machine 1000kg/H Plastic Granulating Machine
7 Vertical dewatering machine 1unit

To dry Pellets

3Phase Film Plastic Pelletizing Machine 1000kg/H Plastic Granulating Machine
8 Air conveying system + Storage 1unit

High pressure blower

3Phase Film Plastic Pelletizing Machine 1000kg/H Plastic Granulating Machine
9 Electrical cabinet 1set

Adopt independent operation panel for easy operation
With English vertion

3Phase Film Plastic Pelletizing Machine 1000kg/H Plastic Granulating Machine
With cooling fan inside
Temperature contoller: Omron
Current protective of motor
Over temperature protective of motor
Over pressure protective of screw


3Phase Film Plastic Pelletizing Machine 1000kg/H Plastic Granulating Machine

3Phase Film Plastic Pelletizing Machine 1000kg/H Plastic Granulating Machine
