Specifications
Brand Name :
DSTHERM & Customized LOGO
Model Number :
20-63mm
Certification :
ISO9001/CE
Place of Origin :
Zhejiang China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
L/C,T/T
Supply Ability :
20days /20 feet container , 35days/40 HQ
Delivery Time :
20 days
Packaging Details :
carton
Product Name :
PPR Ball Valve With Waving Handle and Brass Ball
Working Temperature :
0-70°C
Pressure :
PN25
Standard :
ISO9001/CE
Specification :
DN20 25 32 40 50 63
Color :
Green/White/Customizable
Trade Model :
OEM/ODM/OBM
material :
PPR Body+Brass ball+Plastic Handle
Feature :
Ergonomic Waving Handle/Customization Options,etc
Application :
Residential & Commercial Plumbing/Agricultural Irrigation,etc
Description

Specification


PPR Ball Valve With Waving Handle and Brass Ball Specification
PPR Ball Valve With Waving Handle and Brass Ball For Plumbing System 20-63MM Customizable 20mm
25mm
32mm
40mm
50mm
63mm


What is PPR Ball Valve?


A PPR ball valve is a type of valve used in piping systems, the body made from PPR material. It features a rotating ball with a hole to control flow. It is known for its corrosion resistance, durability, and suitability for hot and cold water applications, commonly in residential and industrial plumbing.




Product Highlights


  • Hybrid Construction: Combines the corrosion resistance of a PPR body with the durability and smooth operation of a brass ball core.

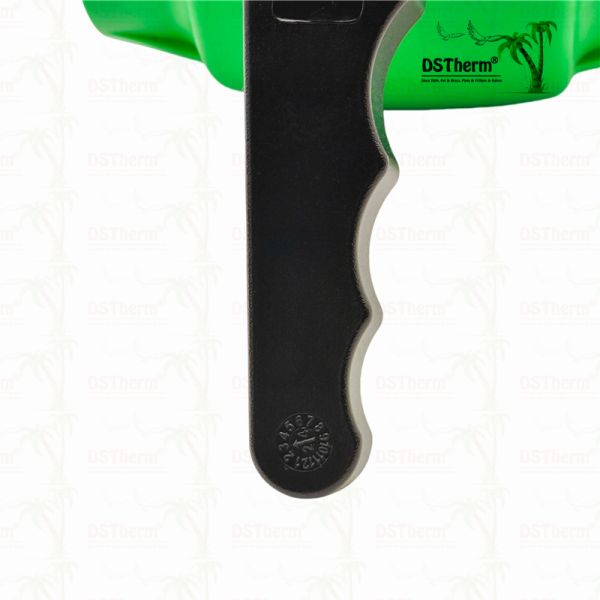

  • Ergonomic Waving Handle: Features a specially designed plastic waving handle for a comfortable, non-slip grip and easy manual operation.
  • High-Pressure Rating: Certified for PN25, making it suitable for high-pressure water systems.
  • Wide Size Range: Available in diameters from 20mm to 63mm, catering to various pipeline dimensions.
  • Customization Options: Offers color and logo customization for brand consistency or project identification.
  • Quality Assurance: Manufactured under ISO9001 certified processes, ensuring consistent quality and reliability.



Working Principle


The waving handle is connected to the brass ball inside, which has a through-hole. Turning the handle 90 degrees aligns the hole with the pipe to allow full flow (OPEN) or positions it perpendicular to block the flow completely (CLOSE). The PPR body and integrated seals ensure a tight shut-off.




Feature DSTHERM PPR Ball Valve with Brass Ball Standard Plastic Ball Valve (e.g., all-PP/PVC)
Ball Material Brass. Superior durability, better wear resistance, smoother rotation, and less prone to deformation. Plastic. Can be more susceptible to wear, scoring, or deformation over time, especially with frequent use.
Sealing & Life Brass-to-plastic seal typically offers tighter shut-off and longer service life. Plastic-to-plastic seal may wear faster, potentially leading to earlier leakage.
Pressure Rating Higher rating (PN25), suitable for high-pressure applications. Generally lower pressure rating (e.g., PN16 or less).
Handle Design Ergonomic waving handle for improved grip and comfort. Usually a simple, straight plastic lever without ergonomic shaping.
Customization Offers color and logo customization. No customization.
Temperature & Durability PPR body resists scaling; brass core handles thermal stress well. Suitable for hot water. May have lower overall thermal and mechanical stress tolerance.



APPLICATION


  1. Residential & Commercial Plumbing: Hot and cold water systems.
  2. Heating Systems: Radiant floor heating, radiator connections, and other HVAC applications.
  3. Industrial Piping: For conveying water, compressed air, and certain compatible chemicals in factories.
  4. Agricultural Irrigation: Mainline and sectional control in pressurized water networks.


Our advantages


1). Over 20 Years' Experience in production

2). Accept OEM Order

3). ISO9001 approved

4). We use All New raw material in products

5). Sufficient products with complete specifications for your choice


We will be your better choice!
