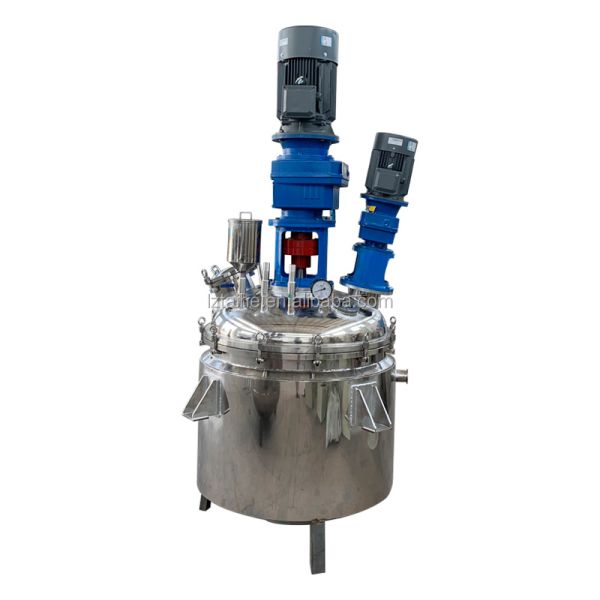

63 Stirring Speed 1000L Stainless Steel Reactor for Pharmaceutical Manufacturing

Specifications

Capacity :

1000l

Automatic Grade :

Automatic

Type :

Reaction Kettle

Condition :

New

Video outgoing-inspection :

Provided

Machinery Test Report :

Provided

Marketing Type :

Ordinary Product

Warranty of core components :

1 Year

Core Components :

Motor

Place of Origin :

Shandong, China

Brand Name :

SANWEI

Voltage :

Customer Required

Power :

4kw

Weight :

2000kg

Warranty :

1 Year

Key Selling Points :

Long Service Life

Applicable Industries :

Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, other, Advertising Company

Showroom Location :

None

After-sales Service Provided :

Engineers available to service machinery overseas, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support

Material :

SS304 ; SS316 ; Carbon steel ; Lined PTFE

Product name :

reactors

Heating method :

electric heating, steam heating, oil circulation heating

Machine type :

stainless steel reactor

Keywords :

1000l reactor

Sealing Type :

mechanical seal

Agitator :

anchor, paddle, anchor

Vacuum Degree :

Max: -0.098 Mpa

Stirring speed :

63, 85rpm or customized

After Warranty Service :

Video technical support, Online support, Spare parts, Field maintenance and repair service

Local Service Location :

None

Certification :

CE ISO

Packaging Details :

Suitable Delivery And Protect The Machine

Port :

QINGDAO

Supply Ability :

100 Set/Sets per Quarter

Price :

$2,650.00/sets 1-4 sets

Description

1000l stainless steel reactor reactors

1. Volume: 50 ~ 30000L
2. Material: SS304 , SS316 ; Carbon steel , Lined PTFE
3. Agitator: anchor , frame , paddle , multifunction etc.
4. Optional: heating or cooling
5. Type: single layer, double layer (jacketed type), external coil-pipe type
6. Heating method: electric heating, steam heating, circulation oil heating, infrared heating etc.
7. Warranty: 1 year
8. We support customization.

Model

50L

100L

300L

500L

1000L

2000L

3000L

5000L

Mixing Motor Power

0.75KW

1.1KW

2.2KW

4KW

5.5KW

7.5KW

15KW

Heating Motor Power

8KW

12KW

24KW

36KW

48KW

60KW

75KW

90KW

Inner Plate Thickness

5mm

6mm

8mm

Jacket Plate Thickness

5mm

6mm

8mm

Material

SS304, SS316L, Carbon Steel; It also can lined PTFE. It can be customized to meet your requirement.

Heating Type

electric heating, steam heating, oil circulation heating etc.

Agitator

anchor, paddle, frame etc.

Sealing Method

packing seal or mechanical seal (vacuum)

Model

We still have more models. (6000l, 8000l, 10000l, 15000l, 20000l, 30000l etc.)

Remarks

We support OEM

More Type

Electric Heating Reactor

Steam Heating Reactor

Multifunctional Reactor

Limpet Coil Reactor

Project Show Case

Details Images

Mirror polished curved head

The upper cover of reactor (customizable)

Anchor agitator

Paddle agitator

Cooling coil-pipe in inner cylinder
