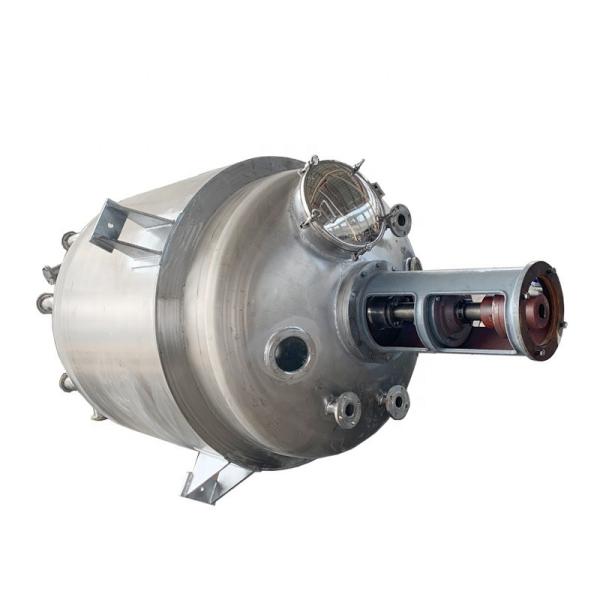

Single Layer or Jacketed Structure Agitator Reactor for 500L Batch Chemical Reaction
Single Layer or Jacketed Structure Agitator Reactor for 500L Batch Chemical Reaction
Single Layer or Jacketed Structure Agitator Reactor for 500L Batch Chemical Reaction
Single Layer or Jacketed Structure Agitator Reactor for 500L Batch Chemical Reaction
Single Layer or Jacketed Structure Agitator Reactor for 500L Batch Chemical Reaction
Single Layer or Jacketed Structure Agitator Reactor for 500L Batch Chemical Reaction
Single Layer or Jacketed Structure Agitator Reactor for 500L Batch Chemical Reaction
Single Layer or Jacketed Structure Agitator Reactor for 500L Batch Chemical Reaction
Single Layer or Jacketed Structure Agitator Reactor for 500L Batch Chemical Reaction
Single Layer or Jacketed Structure Agitator Reactor for 500L Batch Chemical Reaction
Single Layer or Jacketed Structure Agitator Reactor for 500L Batch Chemical Reaction
Single Layer or Jacketed Structure Agitator Reactor for 500L Batch Chemical Reaction
Specifications
Capacity :
10~30000L, 10L~30000L
Automatic Grade :
Automatic
Type :
Reaction Kettle
Condition :
New
Video outgoing-inspection :
Provided
Machinery Test Report :
Not Available
Marketing Type :
Ordinary Product
Warranty of core components :
1 Year
Core Components :
Motor
Place of Origin :
Shandong, China
Brand Name :
SANWEI
Voltage :
Customer Required
Warranty :
1 Year
Key Selling Points :
Long Service Life
Applicable Industries :
Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Food & Beverage Shops, Other, Advertising Company
Showroom Location :
None
Product name :
Reactor
Material :
SS304 ; SS316 ; Carbon steel ; Lined PTFE
Working pressure :
Ordinary pressure
Machine type :
stainless steel reactor
Structure :
single layer or with jacket
Heating method :
electric heating, steam heating, oil circulation
Sealing Type :
packing seal, mechanical seal
Discharge Valve :
ball valve
Others :
we support OEM
After-sales Service Provided :
Video technical support, Online support
After Warranty Service :
Video technical support, Online support
Local Service Location :
None
Certification :
CE ISO
Packaging Details :
Suitable Delivery And Protect The Machine
Port :
QINGDAO
Supply Ability :
100 Set/Sets per Quarter
Price :
$1,200.00 - $12,500.00/sets
Description
Product Description

500l batch reactor price stainless steel agitated tank agitator reactor

1. Volume: 10 ~ 30000L
2. Material: SS304 , SS316 ; Carbon steel , Lined PTFE
3. Agitator: anchor , frame , paddle , multifunction etc.
4. Optional: heating or cooling
5. Type: single layer, jacketed type, external coil-pipe type
6. Heating method: electric heating, steam heating, circulation oil heating, infrared heating etc.
7. Warranty: 1 year
8. We support customization.
Single Layer or Jacketed Structure Agitator Reactor for 500L Batch Chemical Reaction
Single Layer or Jacketed Structure Agitator Reactor for 500L Batch Chemical Reaction
Single Layer or Jacketed Structure Agitator Reactor for 500L Batch Chemical Reaction
Single Layer or Jacketed Structure Agitator Reactor for 500L Batch Chemical Reaction
Single Layer or Jacketed Structure Agitator Reactor for 500L Batch Chemical Reaction
Single Layer or Jacketed Structure Agitator Reactor for 500L Batch Chemical Reaction
Single Layer or Jacketed Structure Agitator Reactor for 500L Batch Chemical Reaction
Single Layer or Jacketed Structure Agitator Reactor for 500L Batch Chemical Reaction
Single Layer or Jacketed Structure Agitator Reactor for 500L Batch Chemical Reaction
Single Layer or Jacketed Structure Agitator Reactor for 500L Batch Chemical Reaction
Model
50L
100L
300L
500L
1000L
2000L
3000L
5000L
Mixing Motor Power
0.75KW
1.1KW
2.2KW
2.2KW
4KW
5.5KW
7.5KW
15KW
Heating Motor Power
8KW
12KW
24KW
36KW
48KW
60KW
75KW
90KW
Inner Plate Thickness
5mm
5mm
5mm
5mm
6mm
6mm
8mm
8mm
Jacket Plate Thickness
5mm
5mm
5mm
5mm
6mm
6mm
8mm
8mm
Material
SS304, SS316L, Carbon Steel; It also can lined PTFE.
It can be customized to meet your requirement.
Heating Type
electric heating, steam heating, oil circulation heating etc.
Agitator
anchor, paddle, frame etc.
Sealing Method
packing seal or mechanical seal (vacuum)
Model
We still have more models. (6000l, 8000l, 10000l, 15000l, 20000l, 30000l etc.)
Remarks
We support OEM
Project Show Case
Single Layer or Jacketed Structure Agitator Reactor for 500L Batch Chemical Reaction
Details Images
Single Layer or Jacketed Structure Agitator Reactor for 500L Batch Chemical Reaction
Single Layer or Jacketed Structure Agitator Reactor for 500L Batch Chemical Reaction
Single Layer or Jacketed Structure Agitator Reactor for 500L Batch Chemical Reaction
Single Layer or Jacketed Structure Agitator Reactor for 500L Batch Chemical Reaction
Single Layer or Jacketed Structure Agitator Reactor for 500L Batch Chemical Reaction
Single Layer or Jacketed Structure Agitator Reactor for 500L Batch Chemical Reaction
Single Layer or Jacketed Structure Agitator Reactor for 500L Batch Chemical Reaction
Single Layer or Jacketed Structure Agitator Reactor for 500L Batch Chemical Reaction
Single Layer or Jacketed Structure Agitator Reactor for 500L Batch Chemical Reaction
Single Layer or Jacketed Structure Agitator Reactor for 500L Batch Chemical Reaction
