150 Grams PET Injection Blow Molding Machine 1000 Tons Charger Vertical Injection Equipment
150 Grams PET Injection Blow Molding Machine 1000 Tons Charger Vertical Injection Equipment
150 Grams PET Injection Blow Molding Machine 1000 Tons Charger Vertical Injection Equipment
150 Grams PET Injection Blow Molding Machine 1000 Tons Charger Vertical Injection Equipment
150 Grams PET Injection Blow Molding Machine 1000 Tons Charger Vertical Injection Equipment
150 Grams PET Injection Blow Molding Machine 1000 Tons Charger Vertical Injection Equipment
150 Grams PET Injection Blow Molding Machine 1000 Tons Charger Vertical Injection Equipment
150 Grams PET Injection Blow Molding Machine 1000 Tons Charger Vertical Injection Equipment
150 Grams PET Injection Blow Molding Machine 1000 Tons Charger Vertical Injection Equipment
150 Grams PET Injection Blow Molding Machine 1000 Tons Charger Vertical Injection Equipment
Specifications
Brand Name :
LIZHU
Model Number :
LZ-C
Certification :
CE, CSA
Place of Origin :
CHINA
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
T/T, L/C
Supply Ability :
10 pcs/month
Delivery Time :
7-10days
Packaging Details :
Carton packing
Name :
Precision Injection Molding Machine
Max Clamping Force :
1000tons
Injection Weight :
0-150Grams
Injection Speed :
500mm/s
Production Capacity :
10
Colour :
Customized
Description

PET Blow Moulding Machine Vertical Injection Equipment

1. Description:

Vertical injection using a screw type and four sturdy vertical columns.
A hydraulic injection cylinder ensures a balanced and smooth injection.
All types of engineering plastics require a large LID ratio for a uniform, ideal melt.
For an appropriate insert molding technique, programmable single sliding is available.
After moving the table out of the way, a hydraulic ejector.
sophisticated PLC HMI for programming and controlling functions.
features that safeguard the hands.
hydraulic system that uses less energy.

2. Sepcifications:

Item Unit LZ-C
Injection Unit Screw Diameter mm Ø25 Ø30 Ø35
Injection Pressure Kg/cm2 2320 2138 1328
Theoretical Shot Volume cm3 212 260 314
Shot Weight(PS) g 177 218 234
oz 6.1 7.6 9.9
Injection Rate cm3/sec 165 211 245
Screw Stroke mm 150
Screw Rate rpm 0-250
Injection speed mm/s 127
Nozzle Stroke mm 340
Clamping Force Clamping Force tons 64
Opening Force tons 17
Sliding Plate Size mm 550*540
Plate Size mm 535*1150
Rotary Table Diameter mm Ø1600
Sliding Table Stroke mm -
Max Mold Size mm 530*360
Min Mold Thickness mm 300(50+50)
Opening Stroke mm 250
Max Opening Stroke mm 550(50+50)
Position tolerance mm ±0.02
Ejector Unit Ejector Stroke mm 50/110
Ejector Force Tons 8
Ejector Diameter mm 25
Ejector PCS. pcs 1
Hybrid Unit Oil Tank Volume liters 168
Cold Water Volume Liters/min 160
Servo Motor kw 20
Heating Volume kw 18
Total Wattage kw 36
Others Machine Weight tons 6.3
Machine Size m -

3. Machine Features:

Vertical screw type with four sturdy vertical columns Low pressure and high speed clamping ensure the safety of the mold.
injector unit that is rigid and has two balancing cylinders.
a little oil tank with a quiet repair pump.

Mobile injection unit for sprue center matching.
hydraulic force in the center for improved clamping
durable, maintenance-free equipment.

4. Pictures:

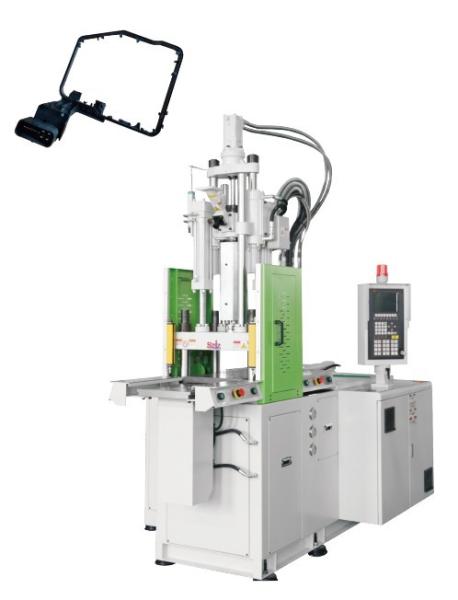

150 Grams PET Injection Blow Molding Machine 1000 Tons Charger Vertical Injection Equipment

5. FAQ:

1) Are you a manufacturer or a trading company?

We are professional vertical injection molding machine manufacturer in China.

2) Why Choose you?

We have high quality, professional team, good service, and competitive prices.

3) How can you guarantee quality?

Our professional team will give good suggestion and designing before start production, and always final Inspection before shipment.

4) Do you accept my own design?

We can provide OEM/ODM service.

5)When can I get my machine after I paid?

We will deliver the machines on time as the date we decided.
