Hybrid Injection Molding Machine 45 Ton 3000 Grams Vertical Injection Machine
Hybrid Injection Molding Machine 45 Ton 3000 Grams Vertical Injection Machine
Hybrid Injection Molding Machine 45 Ton 3000 Grams Vertical Injection Machine
Hybrid Injection Molding Machine 45 Ton 3000 Grams Vertical Injection Machine
Hybrid Injection Molding Machine 45 Ton 3000 Grams Vertical Injection Machine
Hybrid Injection Molding Machine 45 Ton 3000 Grams Vertical Injection Machine
Hybrid Injection Molding Machine 45 Ton 3000 Grams Vertical Injection Machine
Hybrid Injection Molding Machine 45 Ton 3000 Grams Vertical Injection Machine
Specifications
Brand Name :
LIZHU
Model Number :
LZ-YD
Certification :
CE,CSA
Place of Origin :
CHINA
MOQ :
1 Piece
Price :
Negotiation
Payment Terms :
T/T, L/C
Supply Ability :
10 pcs/month
Delivery Time :
7-10days
Packaging Details :
Carton Packing
Name :
Hybrid vertical Injection Molding Machine
Clamping Force :
40-1000Tons
Shot Volume :
38-188m3
Injection Weight :
30-150g
Condition :
New
Style :
Vertical
Description

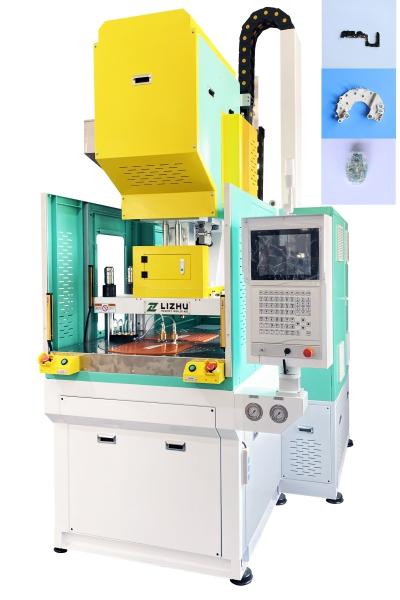

45t Hybrid Vertical Injection Molding Machine With Rotary Table

1. Description:

Despite being inclined to operate on the vertical axis, horizontal injection molding machines nonetheless function similarly to them. For a variety of client needs, this equipment is offered in hydraulic, electric, and hybrid kinds. Vertical injection molding machines use very little floor space because of their location. For insert molding applications, vertical injection molding machines are perfect. Components can be inserted into the mold without overmolding and kept there by gravity. In order for loading and demolding to take place within the machine's cycle time, vertical injection molding machines frequently include a shuttle or rotary table.

2. Sepcifications:

Specification
Model
Unit
LZ-YD
Injection Unit
Screw diameter
mm
Ф50
 Ф55
Ф60
Maximum injection pressure
Kg/cm2
 2150 1780
1490
Theoretical shot volume
cm3
392
 475
565
Maximum shot weight(PS)
g/Oz

346/12.2

 420/14.8
500/ 17.6
Injection rate
cm3/sec
196
 237
282
Clamping Unit
Clamping Force
ton
45
Rotary Table Diameter
mm
-
Minimum mold thickness
mm
200/300 (customization)
Others
Machine Weight (approx.)
T
5.6

Machine dimensions(approx.)
m
3.4×2.4× 4.6

3. Machine Features:

1) The screw rod and nuts used in the clamping unit's design, which reduces the clamping cylinder stroke, improves performance.

2) Lower working height than in conventional designs.

3) Applicable to all insert component types.

4. Pictures:

Hybrid Injection Molding Machine 45 Ton 3000 Grams Vertical Injection Machine

5. FAQ:

1) Are you a manufacturer or a trading company?

We are professional vertical injection molding machine manufacturer in China.

2) Why Choose you?

We have high quality, professional team, good service, and competitive prices.

3) How can you guarantee quality?

Our professional team will give good suggestion and designing before start production, and always final Inspection before shipment.

4) Do you accept my own design?

We can provide OEM/ODM service.

5) When can I get my machine after I paid?

We will deliver the machines on time as the date we agreed.
