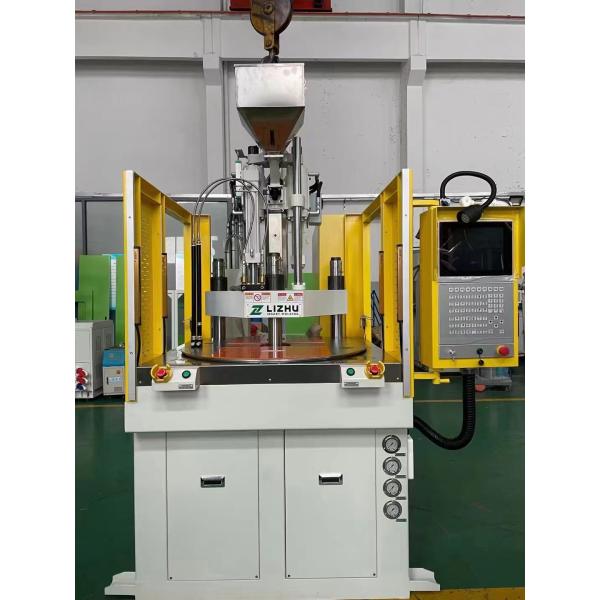

Rotary Table Injection Molding Machine Thermoplastic Industrial
Rotary Table Injection Molding Machine Thermoplastic Industrial
Rotary Table Injection Molding Machine Thermoplastic Industrial
Rotary Table Injection Molding Machine Thermoplastic Industrial
Specifications
Brand Name :
LIZHU
Model Number :
LZ - 2R
Certification :
CE, CSA
Place of Origin :
CHINA
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
T/T, L/C
Supply Ability :
10 pcs/month
Delivery Time :
7-10days
Packaging Details :
Carton Packing
Name :
Vertical Injection Molding Machine Rotary Table
Max Clamping Force :
1000tons
Max Volume :
6000grams
Machine Type :
Vertical Injection
Plastic type :
All kinds
Max Table Size :
2.5 Metre
Description

Rotary Table Injection Molding Machine Thermoplastic Industrial

1. Description:

Horizontal injection molding machines and vertical injection molding machines both execute the same operations despite being set up to work on the vertical axis. This equipment is available in hydraulic, electric, and hybrid forms, allowing it to fulfill a wide range of customer needs. Because of their location, vertical injection molding machines require extremely minimal floor area. Vertical injection molding machines are suited for insert molding applications. Components can be simply positioned in the mold to be held in place by gravity prior to over molding. A shuttle or rotating table is usually employed in vertical injection molding machines to accommodate loading and demolding within the machine's cycle time.

2. Sepcifications:

Item Unit LZ-350
Injection Unit Screw Diameter mm Ø25 Ø28 Ø30
Injection Pressure Kg/cm2 2150 1715 1495
Theoretical Shot Volume cm3 49 62 70
Shot Weight(PS) g 44 55 62
oz 1.5 1.9 2.2
Injection Stroke mm 100
Clamping Force Clamping Force tons 35
Opening Force tons 3.8
Sliding Plate Size mm 345*350
Double Sliding Size mm 345*700
Plate Size mm 480*330
Rotary Table Diameter mm 700
Max Mold Size mm 2500*2500
Min Mold Thickness mm 140
Max Opening Stroke mm 320+(50+50)
Opening Stroke mm 180
Position tolerance mm ±0.02
Ejector Unit Ejector Stroke mm 37/100
Ejector Force Tons 1.5
Ejector Diameter mm 20
Ejector PCS. pcs 1
Hybrid Unit Oil Tank Volume liters 110
Cool Water Volume Liters/min 50
Servo Motor kw 5.5/10.5
Heating Volume kw 4.5
Total Wattage kw 3/5
Others Machine Weight tons 1.2/1.4/1.6
Machine Size m **

3. Machine Features:

1) Injection and clamping vertically.

2) A rotating table that oscillates 180 degrees and revolves back and forth improves efficiency by making it easier to load and pick up finished objects.

3) A rotating table with a pin for positioning, automation, and accurate alignment of the mold.

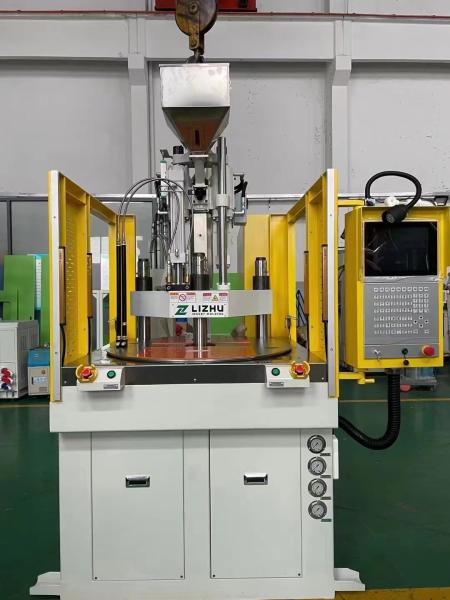

4. Pictures:

Rotary Table Injection Molding Machine Thermoplastic Industrial

5. FAQ:

1) Are you a manufacturer or a trading company?

We are professional vertical injection molding machine manufacturer in China.

2) Why Choose you?

We have high quality, professional team, good service, and competitive prices.

3) How can you guarantee quality?

Our professional team will give good suggestion and designing before start production, and always final Inspection before shipment.

4) Do you accept my own design?

We can provide OEM/ODM service.

5) When can I get my machine after I paid?

We will deliver the machines on time as the date we agreed.
