120 Tons Plastic Chair Barless Extruder Molding Machine Rotary
120 Tons Plastic Chair Barless Extruder Molding Machine Rotary
Specifications
Brand Name :
LIZHU
Model Number :
LZ-800-3V2R
Certification :
CE,CSA
Place of Origin :
China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
T/T, L/C
Supply Ability :
10 pcs/month
Delivery Time :
7-10days
Packaging Details :
Carton Packing
Name :
Rotary Table Vertical Injection Molding Machine
Clamping Force :
160Tons
Max Volume :
2000Grams
Max Mold Size :
2.5*2.5Metre
Machine Color :
Customized
Machine Structure :
Vertical Injection
Description

Rotary 120 Tons Plastic Chair Moulding Machine Barless Extruder Molding Machine

Rotary Table Vertical Injection Molding Machine

1. Description:

Clamping time is reduced by the original design of the Platen Lift System. As a result, the toggle works less frequently and lasts longer.
In contrast to hydraulic clamping, our toggle clamping design accommodates the requirements of various molds and achieves high-speed, smooth clamping.
A dual injection system offers high-speed and high-pressure injection.
The innovative injection unite design makes material tube replacement simpler by allowing the hydraulically charging motor to rotate 180 degrees from its initial position.
The robust injection structure keeps the injection union stable during hydraulic motor charging.
An alternative for increasing productivity and safety is a slide or revolving table.

2. Sepcifications:

Item Unit LZ-800-3V2R
Injection Unit Screw Diameter mm Ø25 Ø30 Ø35
Injection Pressure Kg/cm2 2216 1892 1145
Theoretical Shot Volume cm3 213 264 319
Shot Weight(PS) g 174 212 239
oz 6.3 7.3 9.5
Injection Rate cm3/sec 161 212 242
Screw Stroke mm 145
Screw Rate rpm 0-250
Injection speed mm/s 122
Nozzle Stroke mm 335
Clamping Force Clamping Force tons 120
Opening Force tons 18
Sliding Plate Size mm 550*521
Plate Size mm 585*1270
Rotary Table Diameter mm -
Sliding Table Stroke mm -
Max Mold Size mm 590*350
Min Mold Thickness mm 300(50+50)
Opening Stroke mm 230
Max Opening Stroke mm 550(50+50)
Position tolerance mm ±0.03
Ejector Unit Ejector Stroke mm 50/110
Ejector Force Tons 6
Ejector Diameter mm 25
Ejector PCS. pcs 1
Hybrid Unit Oil Tank Volume liters 153
Cold Water Volume Liters/min 166
Servo Motor kw 20
Heating Volume kw 15
Total Wattage kw 30
Others Machine Weight tons 6.4
Machine Size m ---

3. Machine Features:

1) The clamping unit's screw rod and nuts, which reduce clamping cylinder stroke, improve performance.

2) Compared to conventional designs, the working height is lower.

3) It can be used with any kind of insert component.

4. Pictures:

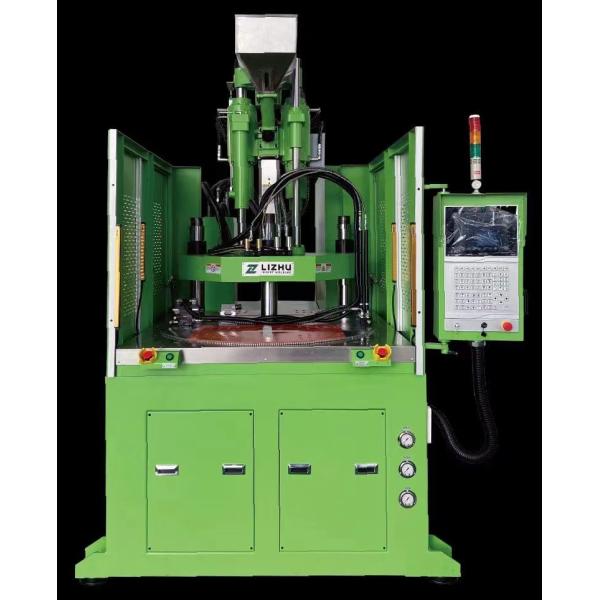

120 Tons Plastic Chair Barless Extruder Molding Machine Rotary

5. FAQ:

1) Are you a manufacturer or a trading company?

We are professional vertical injection molding machine manufacturer in China.

2) Why Choose you?

We have high quality, professional team, good service, and competitive prices.

3) How can you guarantee quality?

Our professional team will give good suggestion and designing before start production, and always final Inspection before shipment.

4) Do you accept my own design?

We can provide OEM/ODM service.

5) When can I get my machine after I paid?

We will deliver the machines on time as the date we agreed.
