8mm Feeding Size 250-450kg/H Plastic Milling Machine
8mm Feeding Size 250-450kg/H Plastic Milling Machine
8mm Feeding Size 250-450kg/H Plastic Milling Machine
8mm Feeding Size 250-450kg/H Plastic Milling Machine
8mm Feeding Size 250-450kg/H Plastic Milling Machine
8mm Feeding Size 250-450kg/H Plastic Milling Machine
8mm Feeding Size 250-450kg/H Plastic Milling Machine
8mm Feeding Size 250-450kg/H Plastic Milling Machine
8mm Feeding Size 250-450kg/H Plastic Milling Machine
8mm Feeding Size 250-450kg/H Plastic Milling Machine
8mm Feeding Size 250-450kg/H Plastic Milling Machine
8mm Feeding Size 250-450kg/H Plastic Milling Machine
Specifications
Place of Origin :
CN;JIA
Brand Name :
BEISU
Certification :
ISO
Supply Ability :
200 Set/Sets per Year for plastic pulverizer machine
Packaging Details :
Film packing or wood package as customer requirements
MOQ :
1 - 4 Sets
Price :
$7,800.00
Output (kg/h) :
250 - 450kg/h
Feeding Size (mm) :
8 - 10 mm
Output Size (mesh) :
20 - 40 mesh
Power (kW) :
45
Range of Spindle Speed(r.p.m) :
2900 - 3700 r.p.m
Application :
Food Processing, Food Processing, Food Processing, Food Processing
Condition :
New
Type :
Pulverizer
Product Type :
other
Voltage :
220V/380V/415V/440V
Dimension(L*W*H) :
2000mm*2800mm*3200mm
Weight (KG) :
1800 KG
Warranty :
1 Year
Key Selling Points :
Automatic
After Warranty Service :
Field maintenance and repair service, Field maintenance and repair service, Field maintenance and repair service, Field maintenance and repair service
Applicable Industries :
Manufacturing Plant
Local Service Location :
Bangladesh, Bangladesh, Bangladesh
Showroom Location :
Uzbekistan, Uzbekistan, Uzbekistan, Uzbekistan, Uzbekistan, Uzbekistan, Uzbekistan
Marketing Type :
Hot Product 2019
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
Core Components :
Blade, Blade, Blade
Raw material :
PVC flakes
Motor power :
45Kw
Blade type :
Knife blade
Off fan blower motor power :
0.75Kw
Fan blower motor power :
7.5Kw
Bearing brand :
NSK or SKF or Wafandian
OIL filling system :
Oil pump
Dust collection type :
Bag
Contactor brand :
SIEMENS
Port :
SHANGHAI or NINGBO PORT
Description
8mm Feeding Size 250-450kg/H Plastic Milling Machine
Application of high speed mill: The high-speed and high-efficiency pulverizer manufactured by Beisu Machinery is especially suitable for TPU, LLDPE, PVC, PE, PET, EVA, PP, PA, rubber, and various rigid, soft, elastomer, low-temperature materials, and film materials. , Sheet thermoplastic materials. According to the classification of the grinding materials, the mills are mainly divided into two categories: rotor (turbine) mills and disc mills.
The working principle of the high-speed mill: The high-speed rotation of the grinding disc driven by the main shaft of the plastic pulverizer collides with the fixed cutter disc, cutting the material into powder (without sieve). The ground fine powder is brought into the vibrating screen along with the circulating air of the blower for sorting. The coarse material falls back to regrind, and the qualified fine powder enters the finished product storage with the cyclone and is discharged through the powder outlet pipe. That is the finished product. The air is discharged from the dust collector.
8mm Feeding Size 250-450kg/H Plastic Milling Machine
PVC Pipe /Ceiling/ Board/ Films/ Sheets Pulverizer milling:
8mm Feeding Size 250-450kg/H Plastic Milling Machine
8mm Feeding Size 250-450kg/H Plastic Milling Machine
8mm Feeding Size 250-450kg/H Plastic Milling Machine
PE/PET/ABS/PA/TPE/LLDPE/EVA Puverizer:
8mm Feeding Size 250-450kg/H Plastic Milling Machine
8mm Feeding Size 250-450kg/H Plastic Milling Machine
8mm Feeding Size 250-450kg/H Plastic Milling Machine
8mm Feeding Size 250-450kg/H Plastic Milling Machine
8mm Feeding Size 250-450kg/H Plastic Milling Machine
8mm Feeding Size 250-450kg/H Plastic Milling Machine
PVC/WPC Pulverizer:
Model
MF400
MF500
MF600
MF800
Rotary blade QTY
18
24
26
40
Fixed blade QTY
10
12
15
20
Main motor power
30kw
45kw
55kw
75kw
Blade material
high chromium alloy
high chromium alloy
high chromium alloy
high chromium alloy
Capacity
100-150kg/h
250kg/h
350kg/h
500kg/h
PE/PET/ABS/PA/TPE/LLDPE/EVA Puverizer:
Model
MF400
MF500
MF600
MF800
Diameter of blade
400mm
500mm
600mm
800mm
Main motor power
30kw
37kw
45kw
75kw
Blade material
SKD-11 or D53
SKD-11 or D53
SKD-11 or D53
SKD-11 or D53
Capacity
100-150kg/h
250kg/h
350kg/h
500kg/h
8mm Feeding Size 250-450kg/H Plastic Milling Machine
8mm Feeding Size 250-450kg/H Plastic Milling Machine
The core patents of the high-speed pulverizer milling machine:
A1: Grinding chamber; Cutter head and grinding disc are air-cooled and water-cooled, especially suitable for processing thermoplastic materials;
A2: Transmission device of the pulverizer; Adopts European-style belt wheel, high-speed operation is not loose, and it is more convenient for daily maintenance;

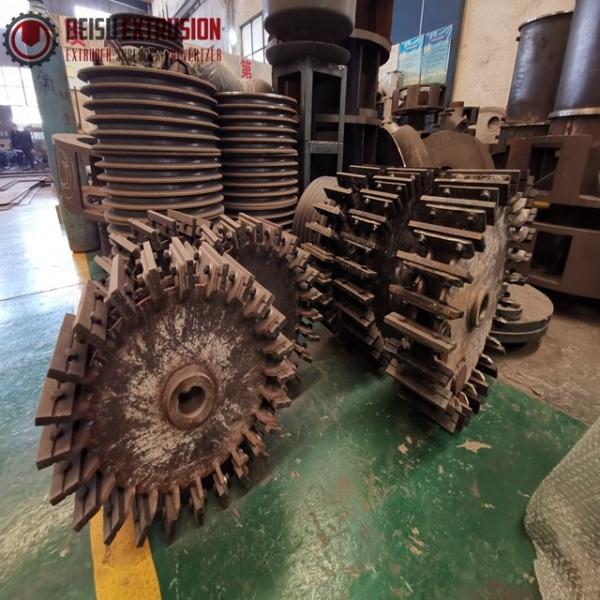

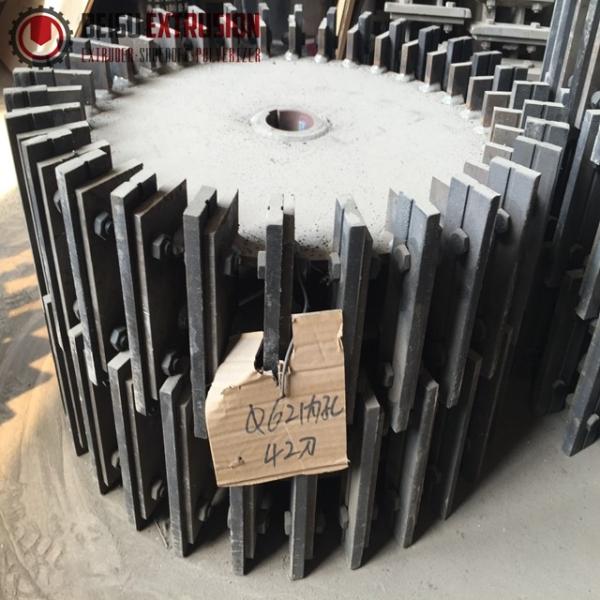

A3: Pulverizer blade; PVC cutter head is made of wear-resistant steel material, special tooth shape design, double the service life; the frequency of use of the cutter head is determined according to the material, usually grinding to 400 tons needs to be replaced. (Depending on the blade wear condition); PE/PET/LDPE/ABS/EVA/PC/FIBER grinding disc adopts SKD-11; tungsten steel;stainless steel whole plate material, special tooth shape design, double service life; cutter head The frequency of use is determined according to the material, and usually the grinding powder to 400 tons needs to be replaced. (It depends on the wear of the blade);
A4: Mill knife adjustment system; Combined with German technology, taking into account the convenience of customers, the knife adjustment of the cutter needs to remove the movable cutter disc, add or subtract washers, and adjust the disc clearance to ensure that there is no abnormal noise; The adjustment knife is distributed outside the grinding disc. According to the thickness of different materials, the bolts outside the grinding disc are adjusted at the same time. After the nuts are locked, the gap between the four bolts can be ensured.
A5: Refueling device for the mill; especially an oil pump refueling device is added, which is convenient for users to refuel daily work without stopping the machine;
A6: The mill is externally exhausted; The air volume reaches 1704 m3/h, and most of the heat is taken away by the temperature difference between the inlet and outlet air. A small part of the heat is solved by water cooling.The inlet temperature of cold water is required to be no more than 25°C, and the outlet water temperature is no more than 45°C. In summer, the cooling tower can be used to circulate water to lower the temperature.
A7: Fully automatic, automatic feeding, discharging and sorting;
8mm Feeding Size 250-450kg/H Plastic Milling Machine
8mm Feeding Size 250-450kg/H Plastic Milling Machine8mm Feeding Size 250-450kg/H Plastic Milling Machine8mm Feeding Size 250-450kg/H Plastic Milling Machine
