Specifications
Name :
WPC Decking Board Machine
plastic processed :
PE, PP, WPC
application :
Profile
Screw Design :
Double-screw
twin screw type :
Counter-rotating conical Twin-screw
Screw Material :
38CrMoALA
screw diameter (mm) :
65 mm
screw l/d ratio :
Unapplicable
Screw Speed (rpm) :
55 rpm
place of origin :
Shandong, China
brand name :
Deerma
voltage :
380V/3P/50HZ or as local voltage
dimension(l*w*h) :
L22000*W1600*H2600mm
power (kw) :
90
warranty :
1 Year
key selling points :
High Productivity
video outgoing-inspection :
Provided
core components :
motor, Pump, Gear, Pressure vessel, Engine, Gearbox
machinery test report :
Provided
Extrusion machine for making pvc profile :
PE PP PVC WPC deck / flooring / fence making machine
Output Capacity :
180-250 kg/ hr
wpc Profiles :
decking, Wall panel, ceiling , windows ,doors,rolling shutters......
Production Line speed :
1-5m/min
Drive Motor :
s Made in germany
Operator :
1-2 persons per shift
Guarantee :
12 month
Output (kg/h) :
180 - 250 kg/h
Automatic Grade :
Automatic
Power :
90kw/ 70kw
Condition :
New
Showroom Location :
Peru, Saudi Arabia, Indonesia, Russia, Spain, Thailand, South Korea, Chile, UAE
Applicable Industries :
Garment Shops, Farms, Restaurant
Warranty of core components :
1 Year
Weight :
10 KG
Port :
Qingdao
Packaging Details :
PE PP PVC WPC deck / flooring / fence making machine
1.Mold package:Wooden package.
2.Outside package:Stretch film
Supply Ability :
5 Set/Sets per Month PE PP PVC WPC deck / flooring / fence making machine
Price :
CN¥216,450.00-288,600.00/sets
Description

PE PP PVC WPC Deck / Flooring / Fence Making Machine Extrusion Machine For PVC Profile Production Line Speed 1-5m/Min

Product Description

Profiles for the building industry

--windows
--door frame and board
--rolling shutters
--gutters
--fencing
--ceiling
--deck
--floor
Profiles for furnishing
--furniture edge bands
--coatings

1) PP,PE WPC profiles extrusion craft

100% recycled PP,PE,etc+wood power ( from wood dust, rice husk, wheat straw,etc)+ additives → mixing → granulating → conical twin-screw extruder → profile extrusion die → profile moulds→ vacuum calibration platform →(haul-off) → cutter →stacker → finished product → surface finish processing, like embossing, sandng, brushing,etc

2) PVC WPC profiles extrusion craft

pvc powder+wood powder+additives → mixing → extrusion line ( conical twin-screw extruder → profile extrusion die → profile moulds→ vacuum calibration platform →haul-off → cutter →stacker → finished product) → surface finish processing ( like heat transfer,sanding, embossing,etc)

Technical parameter for wpc decking machine

Model YF180 YF300 YF600 YF800 YF1000
Max.width of product(mm) 180 300 600 800 1000
Extruder mode SJZ51/105 SJZ65/132 SJZ80/156 SJZ80/156 SJZ92/188
Extrusion capacity(kg/h) 150 180 360 360 600
Motor power(kw) 18.5 37 55 55 110
Total length(m) 18 22 26 28 32

Main Composition

Item Quantity

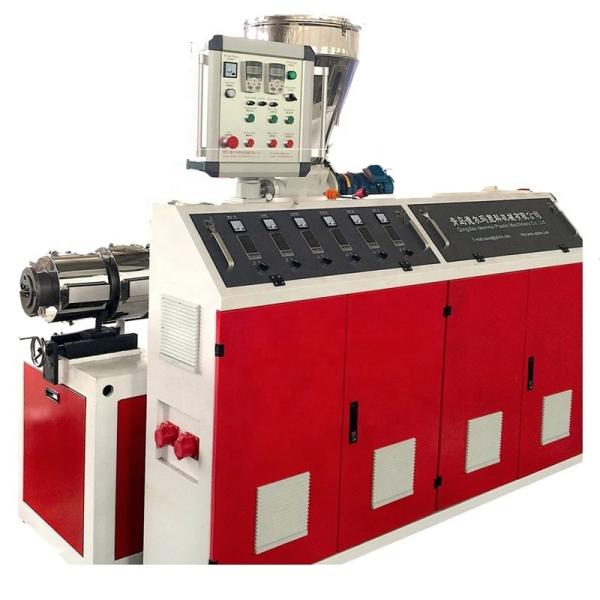

1.SJSZ- XX Twin Screw Extruder with Automatic Feeding System One set
2.Die Mold & Stock Mold One set
3.Vacuum Calibrarion Table One set
4.Haul-off and Cutter Unit One set
5.Stacker One set
6.Electric Control System One set

Pictures

180kg/h - 250kg/h WPC Decking Board Machine 55Rpm WPC Flooring Extrusion Machine Speed 1-5m/Min

180kg/h - 250kg/h WPC Decking Board Machine 55Rpm WPC Flooring Extrusion Machine Speed 1-5m/Min

180kg/h - 250kg/h WPC Decking Board Machine 55Rpm WPC Flooring Extrusion Machine Speed 1-5m/Min

180kg/h - 250kg/h WPC Decking Board Machine 55Rpm WPC Flooring Extrusion Machine Speed 1-5m/Min

180kg/h - 250kg/h WPC Decking Board Machine 55Rpm WPC Flooring Extrusion Machine Speed 1-5m/Min

180kg/h - 250kg/h WPC Decking Board Machine 55Rpm WPC Flooring Extrusion Machine Speed 1-5m/Min

Packaging & Shipping

180kg/h - 250kg/h WPC Decking Board Machine 55Rpm WPC Flooring Extrusion Machine Speed 1-5m/Min

Certifications

Certification

Certified By

Certificate No.

Business Scope Expiry Dat

Expiry Date

ISO 9001:2008

Beijing Hangxie Certification
Center Co., Ltd.,
CNAS


03413Q21640R1M

Design and Production of
Single-Screw Plastic Extruders
and Conical Twin-Screw
Plastic Extruders

17/Sep./2013
16/Sep./2016

CE

European
Inspection and
Certification
Company S.A.

CN.CE.0680-10/10

Plastic Extrusion Machinery &
SJ-30, SJ-45, SJ-65, SJ-90,
SJ-120, SJ-150, SJ-180,
SJ-200, SJSZ-51/105,
SJSZ-65/132, SJZS-80/156,
SJSZ-92/188

29/Oct./2010
28/Oct./2015

TUV

TÜV Rheinland

7467484_P+T

Production & Trade Assessment

15/Jan./2014 14/Jan./2015

Main Product Lines Verification Report

TÜV Rheinland

7467487_P+T

Main Product Lines Verification

15/Jan./2014 14/Jan./2015

SGS

SGS-CSTC Standards Technical Services Co.,Ltd

Focus Technology Co., Ltd

QIP-ASR155278

Extrusion Machine, Pipe Machine ,profile Machine, Roof Machine…

15/Ma
