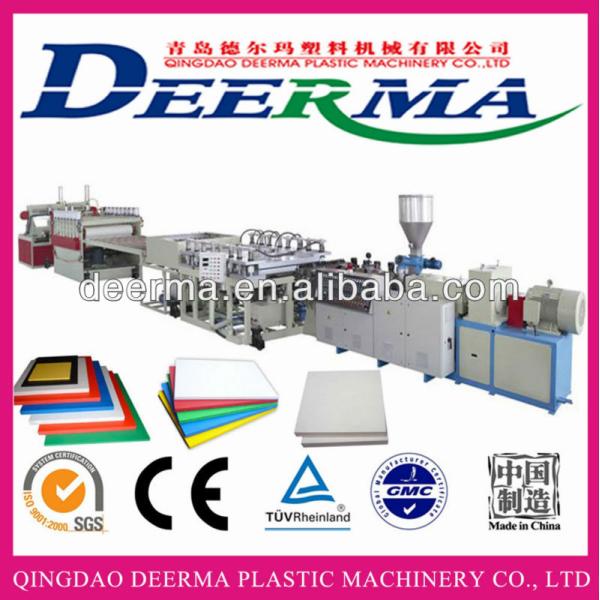

160kw PVC Foam Board Machine 200kg/h - 500kg/h Foam Sheet Making Machine
160kw PVC Foam Board Machine 200kg/h - 500kg/h Foam Sheet Making Machine
160kw PVC Foam Board Machine 200kg/h - 500kg/h Foam Sheet Making Machine
160kw PVC Foam Board Machine 200kg/h - 500kg/h Foam Sheet Making Machine
160kw PVC Foam Board Machine 200kg/h - 500kg/h Foam Sheet Making Machine
160kw PVC Foam Board Machine 200kg/h - 500kg/h Foam Sheet Making Machine
Specifications
Packaging Details :
wooden case worthy for packing PVC hard surface foam sheet making machine
Supply Ability :
5 Set/Sets per Month PVC hard surface foam sheet making machine
Price :
CN¥901,875.00/sets 1-3 sets
Name :
PVC Foam Board Machine
plastic processed :
PVC
application :
Plates
Screw Design :
Double-screw
twin screw type :
Counter-rotating conical Twin-screw
Screw Material :
38CrMoALA
screw diameter (mm) :
80
screw l/d ratio :
28:1
Screw Speed (rpm) :
45 rpm
place of origin :
Shandong, China
brand name :
Deerma
voltage :
380V/3P/50HZ
dimension(l*w*h) :
25*25*3m
power (kw) :
160
warranty :
1 Year
key selling points :
Multifunctional
video outgoing-inspection :
Provided
core components :
Bearing, motor, Pump, Gear, PLC, Engine, Gearbox, Screw
machinery test report :
Provided
Plastic Processed :
PVC resin
Product Thickness :
10-25mm
Product Width :
1220-2050mm
Output :
200-500kg/h
Machine Control :
PLC
Guarantee Time :
12months
Power :
motor power-75kw
orginal place :
qingdao
Usage :
Door
Marketing Type :
Ordinary Product
Condition :
New
Showroom Location :
Turkey, Germany, Indonesia, Thailand, UAE, South Africa, Tajikistan
Applicable Industries :
Building Material Shops, Machinery Repair Shops, Construction works
Warranty of core components :
1 Year
Weight :
13 KG
Port :
Qingdao
Description

High Capacity PVC Hard Surface Foam Sheet Making Machine Featuring 38CrMoALA Screw Material And 28 1 Screw L/D Ratio

Production Description
160kw PVC Foam Board Machine 200kg/h - 500kg/h Foam Sheet Making Machine
  • High efficiency conical twin screw extruder.
  • It can produce rigid pvc wpc crust/skinning foam board machine.
  • The thickness is from 3mm to 45mm, width is from 1220mm to 2050mm.
  • This sheet is mostly used in transportation , advertisement,construction furniture industry ect.

Production Line

Main Composition of PVC Hard Surface Foam Sheet Making Machine

Item Quantity
SJSZ80/156 conical twin screw extruder one set
Electric cabinet one set
Nose and die mold one set
Forming machine one set
Water chiller one set
Cooling bracket one set
Tractor machine one set

Longitudinal cutter

 one set
Dust vacuuming device one set
Traverse cutter one set
Automatic discharge one set
Other auxiliary tools and parts one set

1.SJSZ80/156 Conical Twin Screw Extruder

160kw PVC Foam Board Machine 200kg/h - 500kg/h Foam Sheet Making Machine

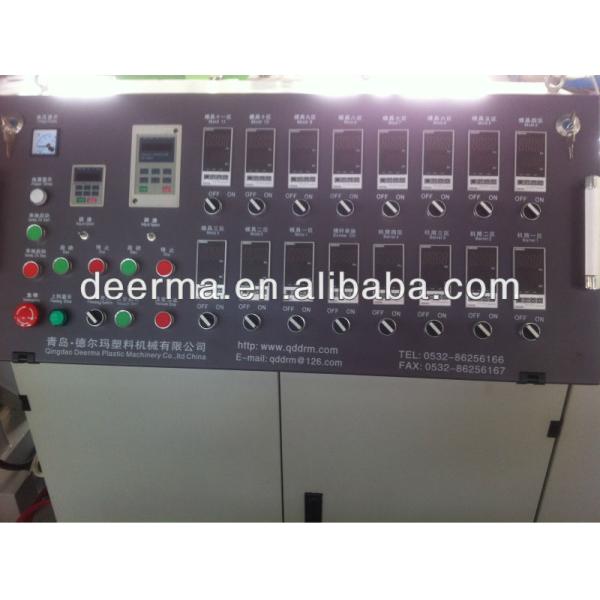

2.Electric Cabinet

160kw PVC Foam Board Machine 200kg/h - 500kg/h Foam Sheet Making Machine

3.Die Mold

160kw PVC Foam Board Machine 200kg/h - 500kg/h Foam Sheet Making Machine

4.5.Forming machine with water chiller

160kw PVC Foam Board Machine 200kg/h - 500kg/h Foam Sheet Making Machine

6.Cooling bracket

160kw PVC Foam Board Machine 200kg/h - 500kg/h Foam Sheet Making Machine

7.8.Tractor machine with Longitudinal cutter

160kw PVC Foam Board Machine 200kg/h - 500kg/h Foam Sheet Making Machine

9.Traverse cutter

160kw PVC Foam Board Machine 200kg/h - 500kg/h Foam Sheet Making Machine

Application
  • These pvc foam board is mostly used in transportation , advertisement, funiture industry and so on.
  • Products characteristics

  • 1) Water proof, anti-flaming, damp proof, rot proof, mothproof, light weight, keep temperature, sound and heat insulation and shock proof etc.

  • 2) Color-way is not changed long time and not easy to aging under radiation resistance;

  • 3) This product can be manufactured by general wood processing tools; It can be drilled, sawed, nailed and dig It is the same as wood manufacture processing, even better than wood. It is the best substitute to wood, aluminum and composite product.

  • 4) It can be welded as per general welding stipulation and also stick to other PVC materials;

  • 5) Smooth surface and easy to print.

160kw PVC Foam Board Machine 200kg/h - 500kg/h Foam Sheet Making Machine

Certification
160kw PVC Foam Board Machine 200kg/h - 500kg/h Foam Sheet Making Machine
160kw PVC Foam Board Machine 200kg/h - 500kg/h Foam Sheet Making Machine
After Services

1.Our company will provide relevant information on various technology and business consulted by customers. If clients want to visit our company, we will offer all they need for convenience.

2.After signing contract, company designs groundsill installation chart for water, electricity and gas of equipment basing on real condition and customers’ requirements and provides detail order list and matching manufacturer for reference for customer.

3.After equipment arrival, our service personnel will arrive at posted locale for installation, debugging, training and technology transfer till customers can operate independently and manufactures eligible product. Service personnel have to arrive at customer’s locale in time when we provide service for client again.
