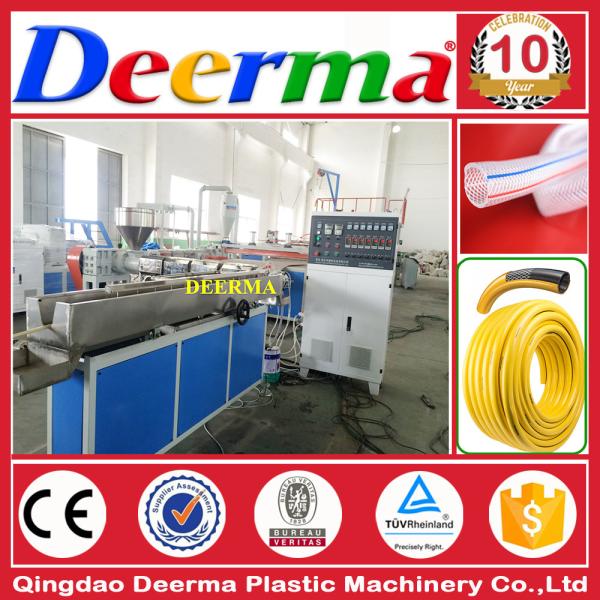

380V 3P 50HZ Plastic Extrusion Machine 15kw Hose Pipe Making Machine 65mm Screw Diameter
380V 3P 50HZ Plastic Extrusion Machine 15kw Hose Pipe Making Machine 65mm Screw Diameter
380V 3P 50HZ Plastic Extrusion Machine 15kw Hose Pipe Making Machine 65mm Screw Diameter
380V 3P 50HZ Plastic Extrusion Machine 15kw Hose Pipe Making Machine 65mm Screw Diameter
380V 3P 50HZ Plastic Extrusion Machine 15kw Hose Pipe Making Machine 65mm Screw Diameter
380V 3P 50HZ Plastic Extrusion Machine 15kw Hose Pipe Making Machine 65mm Screw Diameter
380V 3P 50HZ Plastic Extrusion Machine 15kw Hose Pipe Making Machine 65mm Screw Diameter
380V 3P 50HZ Plastic Extrusion Machine 15kw Hose Pipe Making Machine 65mm Screw Diameter
380V 3P 50HZ Plastic Extrusion Machine 15kw Hose Pipe Making Machine 65mm Screw Diameter
380V 3P 50HZ Plastic Extrusion Machine 15kw Hose Pipe Making Machine 65mm Screw Diameter
380V 3P 50HZ Plastic Extrusion Machine 15kw Hose Pipe Making Machine 65mm Screw Diameter
380V 3P 50HZ Plastic Extrusion Machine 15kw Hose Pipe Making Machine 65mm Screw Diameter
Specifications
Name :
Plastic Extrusion Machine
plastic processed :
PVC Granule
application :
PIPE, Profile, Plates
Screw Design :
Single-screw
Screw Material :
38CrMoALA
screw diameter (mm) :
65 mm
screw l/d ratio :
30:1
Screw Speed (rpm) :
60 rpm
place of origin :
Shandong, China
brand name :
Deerma
voltage :
380V 3P 50HZ or as your local demand
dimension(l*w*h) :
16000x4000x2400
power (kw) :
15
warranty :
1 Year
key selling points :
Energy saving
video outgoing-inspection :
Provided
core components :
Bearing, Pump, Gear, Engine
machinery test report :
Provided
Machine Name :
PVC braided hose pipe machine
Raw Material :
pvc granule
Output Capacity :
60-120kg/h
Line Speed :
10m/min
Hose Diameter :
10-50mm
Motor :
Germany S Motor
Temperature Controller :
OMRON
Inverter :
ABB Frequency Controller
Warranty :
12months
Automatic Grade :
Fully automatic
Condition :
New
Showroom Location :
Egypt, Peru, India, Russia, Thailand, Kenya, South Korea, Algeria, South Africa, Nigeria
Applicable Industries :
hotels, Farms, Home Use
Warranty of core components :
1 Year
Weight :
4 KG
Price :
CN¥180,375.00/sets >=1 sets
Description
65mm Screw Diameter PVC Braided Hose Pipe Machine With 60rpm Screw Speed For Flexible And Durable Hose Production
Product Description

What is the feature of our PVC Hose Machine

1. High efficiency singel screw extruder

2. It can produce PVC garden hose or pvc soft hose

3. The thickness is from 2mm to 6mm, diameter is from 10mm to 50mm

4. This pvc hose is mostly used as home, garden,farm, lawn and so on.

Flow Progress

Material mix inner --layer extrusion inner-- layer forming→ spray cooling→ haul off→ fibre winding→ oven dryness→ outer layer extrusion→ outer layer forming→ spray cooling→ haul-off→ printer→ winder

Technical Parameters

Model L/D Ratio Screw Material Screw diameter Output Total Power Production Scale
SJ45/30 30:1 Separative style 38crmnal 45mm 60kg/hr 35kw Φ6-16mm
SJ65/30 30:1 Separative style 38crmnal 65mm 120kg/hr 50kw

Φ16-50mm

Main Composition

Item Quantity
SJ65/30 Single Screw Extruder Two sets
Die and Mold One set
TSG-B Stainless steel cooling tank Two sets
TSG-A Kinking Machine One set
Traction Engine Two set
Winder One set

Machine Pictures

1.SJ-65/30 Single Screw Extruder

380V 3P 50HZ Plastic Extrusion Machine 15kw Hose Pipe Making Machine 65mm Screw Diameter

2.Die and Mould

380V 3P 50HZ Plastic Extrusion Machine 15kw Hose Pipe Making Machine 65mm Screw Diameter

3.Cooling Tank

380V 3P 50HZ Plastic Extrusion Machine 15kw Hose Pipe Making Machine 65mm Screw Diameter

4.Fiber Kinking Machine

380V 3P 50HZ Plastic Extrusion Machine 15kw Hose Pipe Making Machine 65mm Screw Diameter

5.Haul-off Device

380V 3P 50HZ Plastic Extrusion Machine 15kw Hose Pipe Making Machine 65mm Screw Diameter

Company Information

Certifications

Certification

Certified By

Certificate No.

Business Scope Expiry Dat

ISO 9001:2008

Beijing Hangxie Certification
Center Co., Ltd.,
CNAS


03413Q21640R1M

Design and Production of
Single-Screw Plastic Extruders
and Conical Twin-Screw
Plastic Extruders

CE

EuropeanInspection and
Certification
Company S.A.

CN.CE.0680-10/10

Plastic Extrusion Machinery &
SJ-30, SJ-45, SJ-65, SJ-90,
SJ-120, SJ-150, SJ-180,
SJ-200, SJSZ-51/105,
SJSZ-65/132, SJZS-80/156,
SJSZ-92/188

TUV

TÜV Rheinland

7467484_P+T

Production & Trade Assessment

Main Product Lines Verification Report

TÜV Rheinland

7467487_P+T

Main Product Lines Verification

SGS

SGS-CSTC Standards Technical Services Co.,Ltd
Focus Technology Co., Ltd

QIP-ASR155278

Extrusion Machine, Pipe Machine ,profile Machine, Roof Machine…

Company review

380V 3P 50HZ Plastic Extrusion Machine 15kw Hose Pipe Making Machine 65mm Screw Diameter

380V 3P 50HZ Plastic Extrusion Machine 15kw Hose Pipe Making Machine 65mm Screw Diameter

380V 3P 50HZ Plastic Extrusion Machine 15kw Hose Pipe Making Machine 65mm Screw Diameter

380V 3P 50HZ Plastic Extrusion Machine 15kw Hose Pipe Making Machine 65mm Screw Diameter

After-Sales Service

1.Our company will provide relevant information on various technology and business consulted by customers. If clients want to visit our company, we will offer all they need for convenience.

2.After signing contract, company designs groundsill installation chart for water, electricity and gas of equipment basing on real condition and customers’ requirements and provides detail order list and matching manufacturer for reference for customer.

3.After equipment arrival, our service personnel will arrive at posted locale for installation, debugging, training and technology transfer till customers can operate independently and manufactures eligible product. Service personnel have to arrive at customer’s locale in time when we provide service for client again.

We have three this production lines in our showroom for other customer , welcome to visit our factory
