High Productivity PE Pipe Extrusion Machine 65mm PE Pipe Production Machine 20kw
High Productivity PE Pipe Extrusion Machine 65mm PE Pipe Production Machine 20kw
High Productivity PE Pipe Extrusion Machine 65mm PE Pipe Production Machine 20kw
High Productivity PE Pipe Extrusion Machine 65mm PE Pipe Production Machine 20kw
High Productivity PE Pipe Extrusion Machine 65mm PE Pipe Production Machine 20kw
High Productivity PE Pipe Extrusion Machine 65mm PE Pipe Production Machine 20kw
High Productivity PE Pipe Extrusion Machine 65mm PE Pipe Production Machine 20kw
High Productivity PE Pipe Extrusion Machine 65mm PE Pipe Production Machine 20kw
High Productivity PE Pipe Extrusion Machine 65mm PE Pipe Production Machine 20kw
High Productivity PE Pipe Extrusion Machine 65mm PE Pipe Production Machine 20kw
High Productivity PE Pipe Extrusion Machine 65mm PE Pipe Production Machine 20kw
High Productivity PE Pipe Extrusion Machine 65mm PE Pipe Production Machine 20kw
Specifications
Price :
CN¥180,375.00/sets >=1 sets
Name :
PE Pipe Extrusion Machine
plastic processed :
PE
application :
PIPE, Profile, Plates
Screw Design :
Single-screw
Screw Material :
38CrMoALA
screw diameter (mm) :
65
screw l/d ratio :
30:1
Screw Speed (rpm) :
55 rpm
place of origin :
Shandong, China
brand name :
Deerma
voltage :
380V/3P/50HZ or as local voltage
dimension(l*w*h) :
L25000*W2100*H2600mm
power (kw) :
20
warranty :
1 Year
key selling points :
High Productivity
video outgoing-inspection :
Provided
core components :
Bearing, Pump, Gear, Engine
machinery test report :
Provided
Plastic Machine :
pe pipe extrusion machine
Model :
SJ65/30
Product Application :
Water supply
PE Pipe Diameter :
16-63mm
Output Capacity :
40-80 kg/h
Tractor speed :
0-10 m/min
Drive Motor :
s
Temperature Controller :
Omron
Operator :
1-2 persons per shift
Power :
installed power80kw;consumption power55kw
Condition :
New
Showroom Location :
Egypt, Peru, India, Russia, Thailand, Kenya, South Korea, Algeria, Romania, South Africa
Applicable Industries :
hotels, Farms, Restaurant, Food Shop, Construction works
Warranty of core components :
1 Year
Weight :
5 KG
Description

High Productivity Pe Pipe Extrusion Machine Featuring 65mm Screw Diameter And Long Lifespan


What is the feature of our Pe Pipe Mahcine
1.High efficiency single screw extruder.
2.It can produce PPR water pipes.
3.The pipe diameter range: 16-63mm / 20-110mm / 50-160mm or customes request.
4.This PPR hoes is mostly used as city water and Hot/cold water pipe so on.
Technical Parameters

ModelSJ65/30SJ65/30SJ75/30
Max Dia(mm)16-6320-11050-160
Motor power(kw)373755
Drawing speed(m/min)0-100-80-8
Total Length(m)252528
Putput(kg/hr)40-8060-12080-160

Main Composition (the list of one of PE Pipe Production Line)

ItemQTY
SJ65/30 Single screw extruder Equiped with Vacum feeding machine & Drying Machine1set
SJ25/25 Single screw extruder for marking line1set
Die and Mould1set
Vacuum Calibration Device1set
Spray Cooling Tank1set
Tractor1set
No Dust Cutting Device1set
Stacker1set

Machines's Pictures
1.SJ65/30 Single screw extruder Equiped with Vacum feeding machine & Drying Machine (S MOTOR)
High Productivity PE Pipe Extrusion Machine 65mm PE Pipe Production Machine 20kw
2.Die and Mould
High Productivity PE Pipe Extrusion Machine 65mm PE Pipe Production Machine 20kw
4.Vacuum Calibration Device
High Productivity PE Pipe Extrusion Machine 65mm PE Pipe Production Machine 20kw

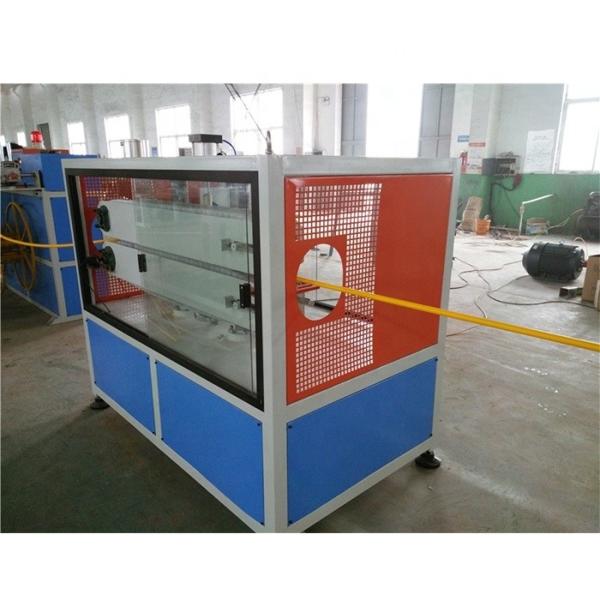

5.Spray Cooling Tank
High Productivity PE Pipe Extrusion Machine 65mm PE Pipe Production Machine 20kw
6.Tractor
High Productivity PE Pipe Extrusion Machine 65mm PE Pipe Production Machine 20kw
7.No Dust Cutting Device
High Productivity PE Pipe Extrusion Machine 65mm PE Pipe Production Machine 20kw

We have SIX this production lines in our showroom for other customer , welcome to visit our factory

...
