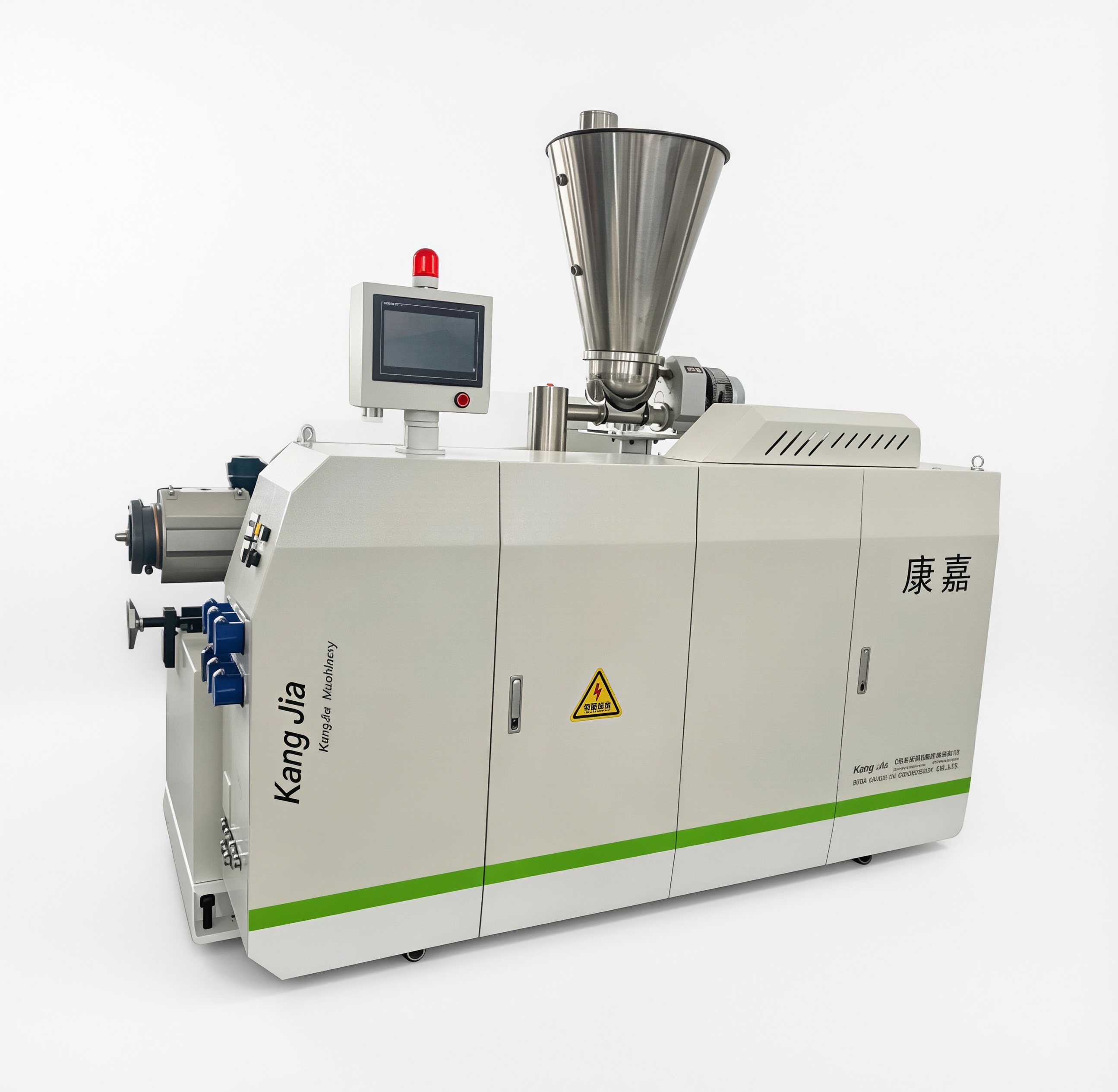

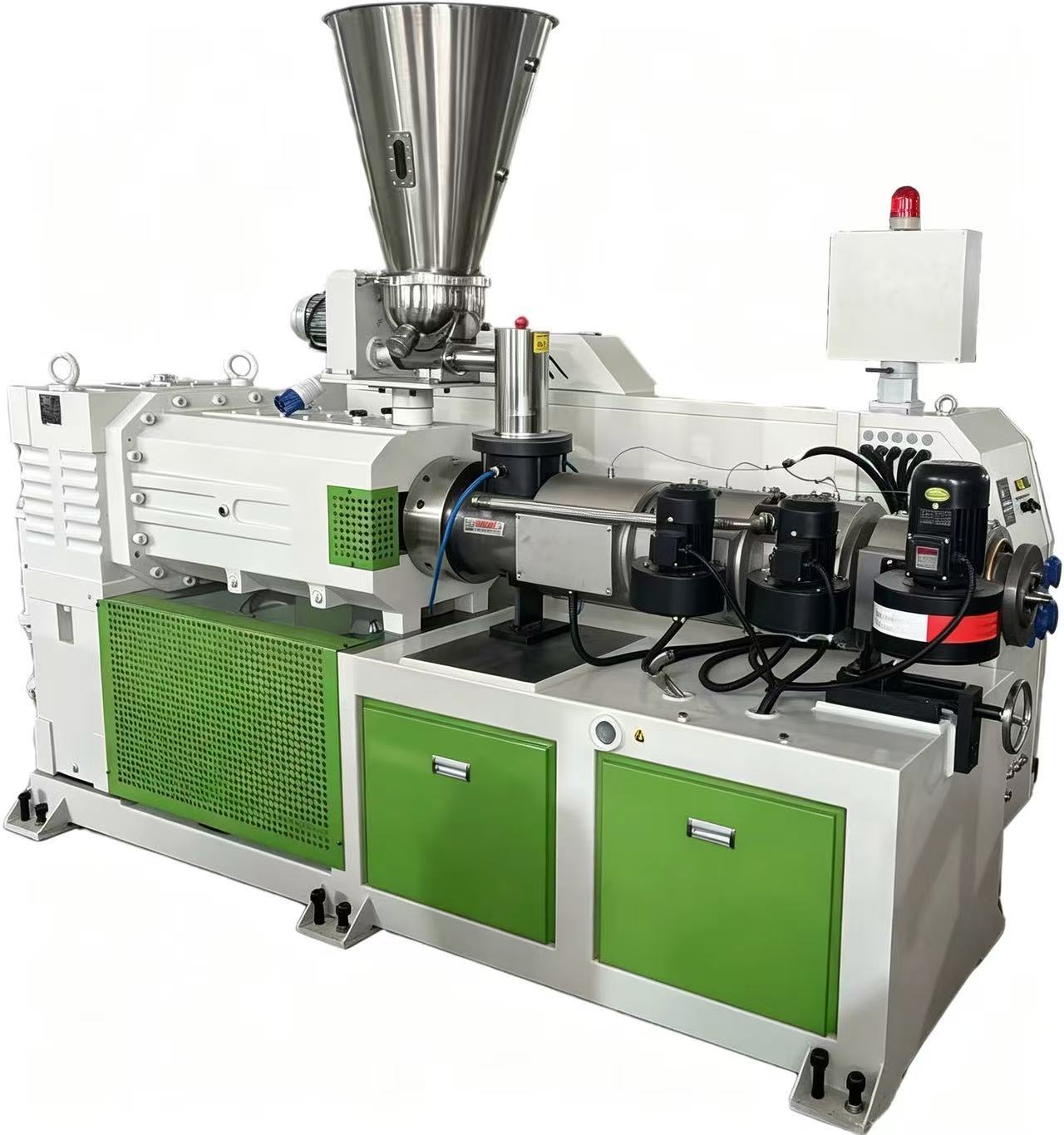

65/132 mm Screw Diameter Conical Twin Screw Extruder with Touch Screen Control and 150-250 kg/h Output Capacity
65/132 mm Screw Diameter Conical Twin Screw Extruder with Touch Screen Control and 150-250 kg/h Output Capacity
65/132 mm Screw Diameter Conical Twin Screw Extruder with Touch Screen Control and 150-250 kg/h Output Capacity
65/132 mm Screw Diameter Conical Twin Screw Extruder with Touch Screen Control and 150-250 kg/h Output Capacity
Specifications
Inverter Brand :
ABB/Delta
Gearbox Brand :
Jiangyin Deling
Feeding Type :
Twin Screw Feeding
Machine Type :
Conical Twin Screw Extruder
Main Motor Power :
45 kW
Screw Material :
38CrMoAlA
Control System :
Touch Screen + PLC
Heating Power :
24 kW
Model Number :
SJSZ65/132
Screw Diameter :
65/132 mm
Output Capacity :
150-250 kg/h
Description
Excellent Plasticizing Effect Energy Saving 65 Conical Twin Screw Extruder Touch Screen Control

Our 65 Conical Twin Screw Extruder is specially designed for high-quality PVC processing, featuring advanced touch screen control technology for easier operation and more accurate production management. The machine combines powerful extrusion performance, excellent plasticizing effect, and stable running performance, making it an ideal choice for PVC pipe, profile, ceiling panel, and wall panel production.

Technical Specifications
Output Capacity 150-250 kg/h
Overall Dimensions 3300mm * 1550mm * 2460mm
Machine Weight 3300 kg
Main Motor Power 45 kW
Feeding Motor Power 0.75 kW
Gearbox Deling integrated gearbox, adopting hardened helical gear transmission
Distribution Gear Material 38CrMoAlA, nitrided and gear-ground treated
Heating Method Cast aluminum heating rings (covered with stainless steel housing)
Temperature Control Zones Barrel: 4 zones; Confluence core: 1 zone; Die: 5 zones
Heating Power 24kW
Barrel Cooling Fan Power 250W/unit * 2 units; 550W/unit * 1 unit
