Plastic PVC Core Sheet 0.1mm Thickness Low Vicat 72 Degree For Credit Cards
Plastic PVC Core Sheet 0.1mm Thickness Low Vicat 72 Degree For Credit Cards
Plastic PVC Core Sheet 0.1mm Thickness Low Vicat 72 Degree For Credit Cards
Plastic PVC Core Sheet 0.1mm Thickness Low Vicat 72 Degree For Credit Cards
Plastic PVC Core Sheet 0.1mm Thickness Low Vicat 72 Degree For Credit Cards
Plastic PVC Core Sheet 0.1mm Thickness Low Vicat 72 Degree For Credit Cards
Plastic PVC Core Sheet 0.1mm Thickness Low Vicat 72 Degree For Credit Cards
Plastic PVC Core Sheet 0.1mm Thickness Low Vicat 72 Degree For Credit Cards
Specifications
Brand Name :
ZL
Model Number :
ZL-PVC core-bank
Place of Origin :
China
MOQ :
1000KGS
Price :
Negotiable
Payment Terms :
L/C,D/P,T/T,Western Union,MoneyGram
Supply Ability :
500 tons per month
Delivery Time :
10-15 working days
Packaging Details :
Plastic film and wood pallet
Product :
White PVC core sheet
Material :
PVC
Color :
White or colored
Thickness :
0.1-0.87mm
Size :
As all the requirements
Surface :
Matt
Application :
For producing the credit card and other plastic cards
Vicat :
72 degree
Printing :
Offset printing and silk screen printing
Dynes :
38
Description

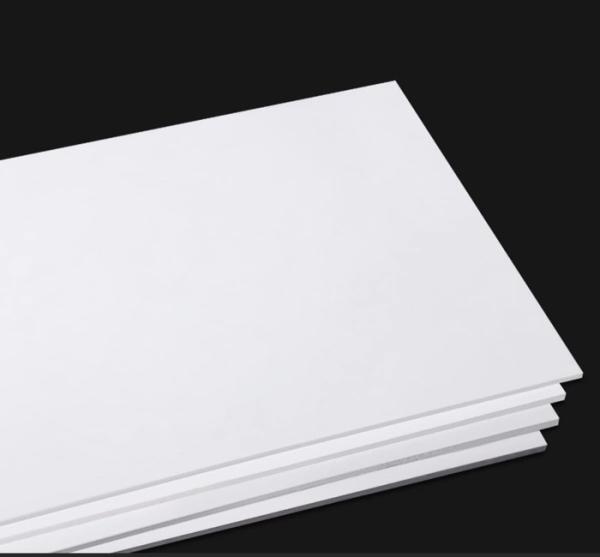

White PVC Core Sheet 0.1mm Thickness Low Vicat 72 Degree For Credit Cards

Our White PVC Core Sheet for Credit Cards is a top-quality material specifically designed for the production of durable, long-lasting credit cards. Made from 100% virgin PVC, this core sheet offers superior strength, excellent print quality, and exceptional durability, making it the ideal choice for manufacturing credit cards, banking cards, debit cards, loyalty cards, and more.
For manufacturers looking to optimize their card production processes, this PVC Centre Laminate provides a cost-effective solution with its efficient material usage and consistent performance. The ability to produce cards with precision and reliability makes this PVC Core Sheet a preferred choice among industry professionals.

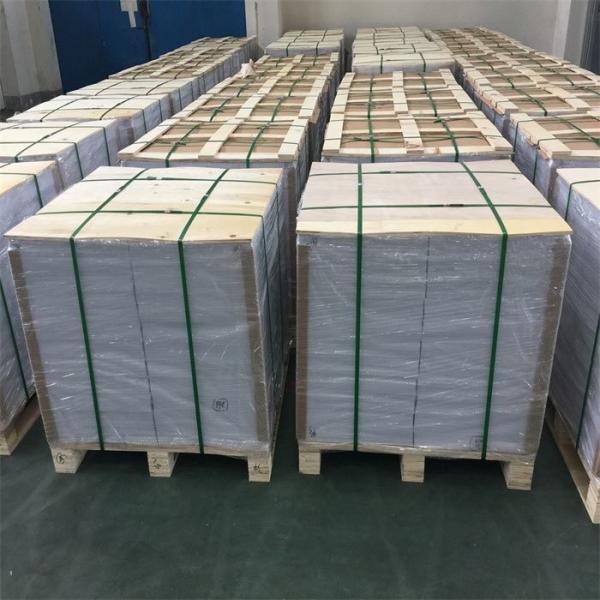

Each PVC Core Sheet is packaged meticulously, with options for 50, 100, or 200 sheets per bag. These bags are further piled up and firmly fixed on solid plywood pallets for secure transportation.
Key Features:
  • Material: 100% Virgin White PVC
  • Size Options: Standard sheets (e.g., 310mm × 480mm) and customizable dimensions available
  • Thickness Range: 0.10mm – 0.80mm (custom thickness upon request)
  • Surface Finish: Matt, dust-free, and printable
  • Compatibility: Suitable for offset, screen, and digital printing
  • Applications: Used as the middle layer in laminated plastic cards (PVC card core)
Why Choose Our PVC Core Sheet?
  • High bonding strength with overlay films
  • Excellent thermal and dimensional stability during lamination
  • Consistent whiteness and uniform thickness
  • Free from impurities, ensuring sharp and vivid print results
Applications Include:
  • ID cards
  • Bank cards
  • RFID smart cards
  • Transportation cards
  • Gift cards and more
If you’re looking for a high-quality white PVC sheet for card production, our core sheets are your ideal solution for consistency, printability, and long-term performance.

When selecting PVC core sheets for PVC card production, several factors should be taken into consideration:

• Opt for core sheets that provide excellent printability, enabling high-quality printing of graphics, text, and other design elements on the card.

• Consider the resistance of the PVC core sheet to chemicals, as cards may come into contact with substances like solvents or cleaning agents.

• Choose a thickness that aligns with the intended use of the card. Thicker core sheets offer more durability, while thinner ones provide increased flexibility.

• Ensure that the core sheet strikes the right balance between rigidity and flexibility, allowing the card to withstand bending without breaking.

PVC core sheets are widely used in the production of various types of cards, including ID cards, access cards, bank cards, smart cards, business cards, IC cards, Contactless cards, SIM cards, royal cards and other plastic cards.

Serial

Item

Unit

Standard

number

PVC core sheet

1

Width

mm

As your requirements

2

Length

mm

As your requirements

3

Thickness

mm

0.1-0.8

4

Surface Roughness Ra (4#)

μm

0.7-1.8

5

Surface Roughness Rz (5#)

μm

4-12

6

Tensile Strength

MD

MPa

≥45

7

Tensile Strength

CD

MPa

≥43

8

Heat Shrinkage MD

%

≥-6.0(140℃+-2

℃/10min)

9

Heat Shrinkage CD

%

≤+2.2(140℃+-2

℃/10min)

10

Surface

—

Mate/Mate

11

Surface Tension (4#)

Dynes/cm

≥38

12

Surface Tension (5#)

Dynes/cm

≥38

13

Density

g/cm3

1.42+-0.05

14

Vicat Softening Point

℃

72+-2(5KG)

Plastic PVC Core Sheet 0.1mm Thickness Low Vicat 72 Degree For Credit Cards

Plastic PVC Core Sheet 0.1mm Thickness Low Vicat 72 Degree For Credit Cards

Plastic PVC Core Sheet 0.1mm Thickness Low Vicat 72 Degree For Credit Cards

FAQ

Q1. Can I have a sample order ?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A: 1-5 days for Sample preparing ,10-15 working days for mass production.

Q3. Do you have any MOQ limit ?

A: Sample is available, Order MOQ is 1000KGS.

Q4. How do you ship the goods and how long does it take to arrive?

A: Ship by DHL, UPS, FedEx or TNT. It takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order ?

A: Firstly let us know your requirements or application.

Secondly We quote according to your requirements or our suggestions.

Thirdly customer confirms the samples and places deposit for formal order.

Fourthly We arrange the production.

Q6: Do you offer guarantee for the products?

A: Yes, we offer 5 years warranty to our products.

Q7: How to deal with the faulty?

A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.1%.

Secondly, during the guarantee period, we will send the new goods with good quality for the faulth. We can discuss the best solution together.
