Industrial Card Making Auxiliary Equipment Large Three - Axis Servo Robot Arm
Industrial Card Making Auxiliary Equipment Large Three - Axis Servo Robot Arm
Industrial Card Making Auxiliary Equipment Large Three - Axis Servo Robot Arm
Industrial Card Making Auxiliary Equipment Large Three - Axis Servo Robot Arm
Industrial Card Making Auxiliary Equipment Large Three - Axis Servo Robot Arm
Industrial Card Making Auxiliary Equipment Large Three - Axis Servo Robot Arm
Industrial Card Making Auxiliary Equipment Large Three - Axis Servo Robot Arm
Industrial Card Making Auxiliary Equipment Large Three - Axis Servo Robot Arm
Specifications
Brand Name :
CNJACKY
Model Number :
HTNW-1300
Certification :
CE
Place of Origin :
Hubei, China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram,PayPal
Supply Ability :
25 sets / Month
Delivery Time :
20 days after payment
Packaging Details :
Standard export wooden box packaging
Size (length*width *height) :
2580*1760*1850mm
Working Pressure :
5Kgf/cm 0.49Mpa
Max.AllowedPressure :
8Kgf/cm 0.8Mpa
Swivel :
90°Fixed Pneumatic
Control System :
CNC
Power Capacity :
4 KVA
Recommendedl.M.M. :
400-600ton
Max.Loading :
12Kg
Description

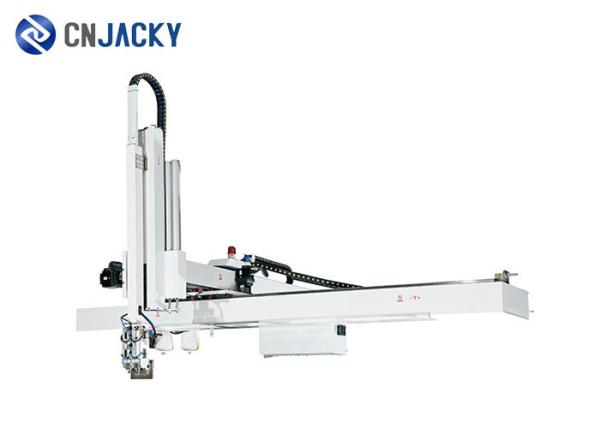

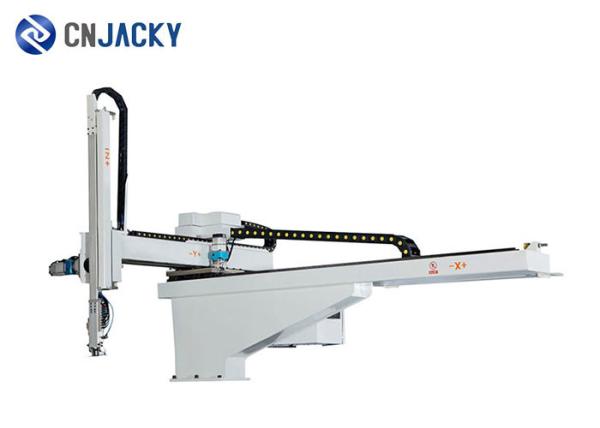

Industrial Large Handling Robot Arm / Large Three-axis Servo Robot Arm

Introduction:

The HTN series robots are used in 400T-4000T plastic horizontal injection molding machines with 3-axis and 5-axis AC servo drives. The finished arm is for taking out the product and the nozzle. The upper and lower arm structures are double-cut, the take-out time is 1.5sec, the full cycle time is 12sec, and the maximum load is 100kg (including finished products and fixtures). Used for quick removal or a variety of removal applications.

Parameter:

Model HTNW-1300
Size (length*width*high) 2580*1760*1850mm
Power Source AC220V±10V 50/60 HZ
Working Pressure 5Kgf/cm² 0.49Mpa
Max.AllowedPressure 8Kgf/cm² 0.8Mpa
Drive System AC Servo Motor
Swivel 90° Fixed Pneumatic
Control System CNC
Power Capacity 4KVA
Recommendedl.M.M. 400-600ton
Traverse Stroke 2000mm
Driven 3-axis AC servo motor drive
Crosswise Stroke 1300mm
Vertical Stroke 300-1200mm
Max.Loading 12Kg
Dry Take Out Time 1.5s
Dry Cycle Time 12s
Air Consumption 80 NI/cycle
Net Weight 580Kg
