Medium Traveling Robot Card Making Auxiliary Equipment Industrial Telescopic Robot
Medium Traveling Robot Card Making Auxiliary Equipment Industrial Telescopic Robot
Medium Traveling Robot Card Making Auxiliary Equipment Industrial Telescopic Robot
Medium Traveling Robot Card Making Auxiliary Equipment Industrial Telescopic Robot
Specifications
Brand Name :
CNJACKY
Model Number :
HBVD/V/WD/W-700
Certification :
CE
Place of Origin :
Hubei, China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram,PayPal
Supply Ability :
25 sets / Month
Delivery Time :
20 days after payment
Packaging Details :
Standard export wooden box packaging
Size (length*width *height) :
1845*1330*1500mm
Working Pressure :
5Kgf/cm 0.49Mpa
Max.AllowedPressure :
8Kgf/cm 0.8Mpa
Swivel :
90°Fixed Pneumatic
Control System :
HS80 HS48
Power Capacity :
1.5/2KVA
Recommendedl.M.M. :
80-200ton
Dry Cycle Time :
4.8s
Description

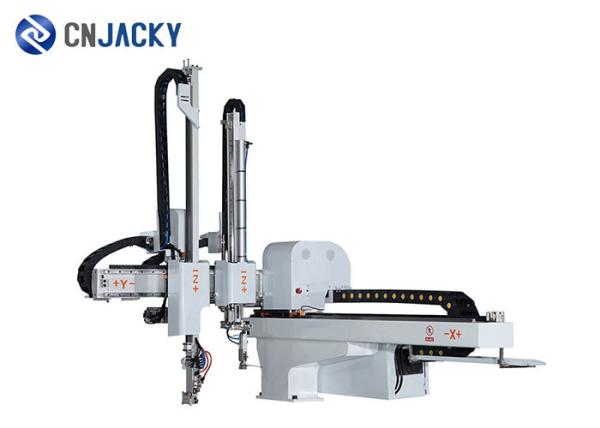

Custom Plastic Injection Molding Machine Medium-traveling Robot / Industrial Telescopic Robot

Introduction:

HB series robot arm is used for the removal of finished products and nozzles of various plastic horizontal molding machines of 50-500T. It adopts main arm and jib. The arm type has single-cut and double-cut type; at the same time, the finished product and the material head; Driven from 700-1000mm for cylinders. The horizontal axis standard is driven by a variable frequency motor and can be driven by an AC servo motor. Up and down, drawing for cylinder drive, saving costs. The installation of HB series robots can increase production capacity (20%-30%) and reduce product defect rate. Safeguard the safety of operators, reduce labor, accurately control production, and reduce waste.

Parameter:

Model HBVD/V/WD/W-700
Size (length*width*height) 1845*1330*1500mm
Power Source AC220V±10V 50/60 HZ
Working Pressure 5Kgf/cm² 0.49Mpa
Max.AllowedPressure 8Kgf/cm² 0.8Mpa
Drive System Z By model X.Y Pneumatic Cylinder
Swivel 90°Fixed Pneumatic
Control System HS80 HS48
Power Capacity 1.5/2KVA
Recommendedl.M.M. 80-200ton
Traverse Stroke 1300mm
Crosswise Stroke

S3:P:500R:100mm

S5:P:500R:300mm
Vertical Stroke 700mm
Max.Loading 5Kg
Dry Take Out Time 0.6s
Dry Cycle Time 4.8s
Air Consumption 3NI/cycle
Net Weight 185-235Kg
