CNC Control System Card Making Auxiliary Equipment
CNC Control System Card Making Auxiliary Equipment
CNC Control System Card Making Auxiliary Equipment
CNC Control System Card Making Auxiliary Equipment
Specifications
Brand Name :
CNJACKY
Model Number :
HTW-1500
Certification :
CE
Place of Origin :
Hubei, China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram,PayPal
Supply Ability :
25 sets / Month
Delivery Time :
20 days after payment
Packaging Details :
Standard export wooden box packaging
Size (length*width *height) :
3000*2030*1900mm
Working Pressure :
5Kgf/cm 0.49Mpa
Max.AllowedPressure :
8Kgf/cm 0.8Mpa
Swivel :
90°Fixed Pneumatic
Control System :
CNC
Power Capacity :
3/5KVA
Recommendedl.M.M. :
650-1000ton
Max.Loading :
15Kg
Description

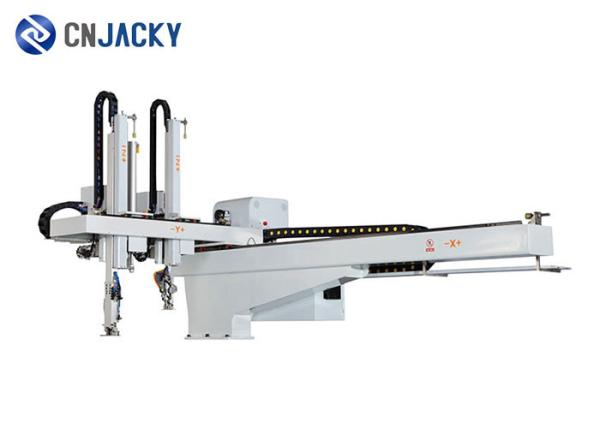

Factory Preferential Price New Design Large Five-axis Robotic Arm For Sale

Introduction:

The HT series robots are used in the 400T-4000T plastic horizontal injection molding machines with 3-axis and 5-axis AC servo drives. The finished arm is for taking out the product and the nozzle. The upper and lower arm structures are double-cut type, and the material clamping arm can be used for the water clamping port; the material head arm can be driven by a cylinder drive or an AC servo motor. The take-out time is 1.5 sec, the full cycle time is 12 sec, and the maximum load is 100 kg (including finished product and fixture). Used for quick removal or a variety of removal applications.

Parameter:

Model HTW-1500
Size (length*width*high) 3000*2030*1900mm
Power Source AC220V±10V 50/60 HZ
Working Pressure 5Kgf/cm² 0.49Mpa
Max.AllowedPressure 8Kgf/cm² 0.8Mpa
Drive System

S5-AC Servo Motor

S3-Auxiliary arm pneumatic
Swivel 90° Fixed Pneumatic
Control System CNC
Power Capacity 3/5KVA
Recommendedl.M.M. 650-1000ton
Traverse Stroke 2400mm
Crosswise Stroke

S3:P:1150

S5:P:1150R:900
Vertical Stroke 1500mm
Max.Loading 15Kg
Dry Take Out Time 1.8s
Dry Cycle Time 14s
Air Consumption 85 NI/cycle
Net Weight 520-585Kg
