Automatic Plastic Cup Lid Thermoforming Machine CE Standard Multisation
Automatic Plastic Cup Lid Thermoforming Machine CE Standard Multisation
Specifications
Brand Name :
ALLEPACK
Model Number :
XG-A
Certification :
CE,ISO
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T,L/C
Supply Ability :
2set/month
Delivery Time :
35 days
Packaging Details :
Standard Export Packing+BOPP streching film
automaticity :
full-automatic
forming method :
positive&negative
Operation :
SIEMENS PLC Control
Brand :
Allepack
Certificate :
ISO,CE
Sheet Thickness :
0.2-2.0mm
Sheet Material :
PP, BOPS, PE, PVC, Pet, ABS, HIPS, EPS etc.
Air Consumption :
6 bar
Cutting Pressure :
100ton
Automation type :
Servo motor
Weight :
12T
Description

Automatic Plastic Cup Lid Thermoforming Machine CE Standard Multisation

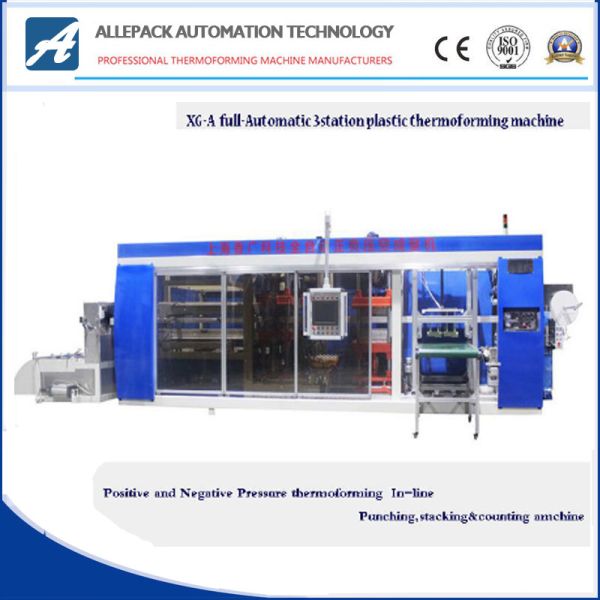

CE Standard Multisation Automatic Plastic Cup Lid Thermoforming Machine is fully automatic multi-stations thermoforming machine are designed and manufactured by our company, It absorbs the most advanced thermoforming technology from Germany, this full automatic production line combines sheet roll feeding, forming,cutting,stacking,conveying compleated on one machine. The whole system is fully-automatic and controlled by PLC through a touching screen. This machine is wide used in plastic containers/boxes/trays/bowls producing field.

Automatic Plastic Cup Lid Thermoforming Machine CE Standard Multisation

Technical parameters

Model XG-A-3
Power supply 380V 50/60Hz
Total Power 160 kw
Actual electrical consumption 20-60kw/H
Heating Oven with preheating Length of 1800mm,width of 800mm
Suitable sheet width 350-800mm
Max forming area 600*760mm
Min. forming area 350*410mm
Max forming depth 150mm
Maximum cutting force 100Ton
Output capacity 10-35cycles/min
Forming mold stroke 2x150mm
Cutting mold stroke 2x150mm
Parallel precision ofcutting table ±0.02MM
Precision of sheet pulling ±0.05MM
Cutting accuracy ±0.05MM
Suitable material PP PE PVC PS PETPS Foam(biodegraded material)etc.
Product thickness 0.15-2.0mm
Dimension 11000*2200*2500mm
Weight 12Tons without mold

Automatic Plastic Cup Lid Thermoforming Machine CE Standard Multisation

FAQ :

1:Are you manufacturer or trading company?

We are manufacturer with own factory and exporting department.

2: What’s the lead time of your machine?

Normally it’s about 30~45 working days.

3: What’s the payment terms?

30% deposit TT, 70% paid before shipment; or L/C, Western Union.

4: Can we check machine before order?

Yes, welcome to visit our factory and check machine anytime.

5: Is it difficult to install the machine ?

For standard small machines, the machines will be packed with no take apart, it comes to you to be a complete machine; you just need to connect power and compressed air to machine, then begin to operate the machine.

For large size machines, we will take the machine apart, on condition that we do our best to keep the machine easy to assembly.

Any problem pls contact Allepack sales team !
