Automatic Plastic Screen Changer Plastic Vertical Making Machine Easy Operation
Automatic Plastic Screen Changer Plastic Vertical Making Machine Easy Operation
Automatic Plastic Screen Changer Plastic Vertical Making Machine Easy Operation
Automatic Plastic Screen Changer Plastic Vertical Making Machine Easy Operation
Specifications
Brand Name :
LVDAO
Model Number :
LD-MD-05
Certification :
CE ISO
Place of Origin :
Ningbo, China
MOQ :
1 SET
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
30 sets per month
Delivery Time :
Received the advanced money 40 days
Packaging Details :
Customer-made
Voltage :
Customized
Filter area :
220*200
screw dia :
120
Condition :
New
Hole Number :
22
Warranty :
1 Year
Die cube :
0.5
Application :
Plastic Recycling
Color :
Customer Choice
Name :
plastic vertical making machine
Product name :
Plastic Electric Double screen changer
Screw design :
single or double
Advantage :
not have to stop the machine
Description

Direct Factory High Quality New Technology Double Hydraulic Screen Changer

Automatic Plastic Screen Changer Plastic Vertical Making Machine Easy Operation
Production description:

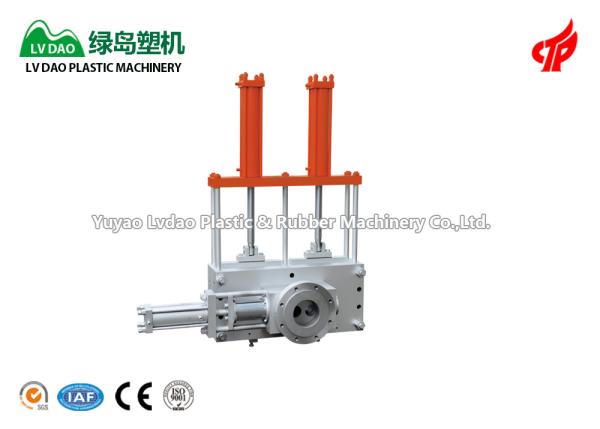

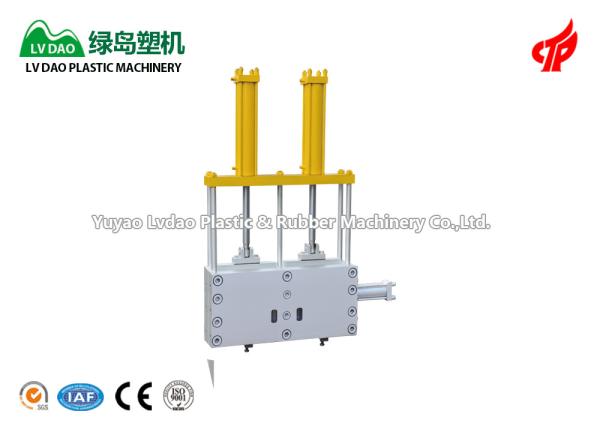

Double plate working station screen changer can automatically compensate the sealing clearance. It is widely used for high production devices. When it operates, two screen works concurrently. One screen operates, the other screen changes, thus the material flow will not stop and the screen changing can complete without machine halt. When two screen unit works simultaneously, the filter area is twice that of single screen unit. Since the screen changing process is continuous, it will not cause apparent pulsation for extruders, thus improves the stability of the products.

The structure:

1, two pieces of slide plate instead of one slide plate

2, one screen cavity on each slide plate instead two screen cavities on one slide plate.

3. The main body of the screen changer

4. Hydraulic unit with accumulator electrical controlling pack (This part is optional choice by customers)


Features:
1) Two round removable breaker plates on each slide plate.
2) "Continuous type" means operation of screen change without machine halt or disruption of melt flow.
3) Equipped with air venting system.
4) Fit for almost all kinds of polymers.
Modle:
LD-MD-04

ModleFiter areaScrew areaHole NumberDie cube
LD-MD-01160*16080140.35
LD-MD-02180*18090160.4
LD-MD-03200*200100200.45
LD-MD-04220*220120220.5
LD-MD-05240*240130260.55
LD-MD-06250*250135280.6
LD-MD-07280*280145300.65
LD-MD-08300*300150300.65
