350-400kg/hr 38CrMoAL Recycled Pet Drink Bottle Flake Extrusion and Pelleting Line
350-400kg/hr 38CrMoAL Recycled Pet Drink Bottle Flake Extrusion and Pelleting Line
350-400kg/hr 38CrMoAL Recycled Pet Drink Bottle Flake Extrusion and Pelleting Line
350-400kg/hr 38CrMoAL Recycled Pet Drink Bottle Flake Extrusion and Pelleting Line
350-400kg/hr 38CrMoAL Recycled Pet Drink Bottle Flake Extrusion and Pelleting Line
350-400kg/hr 38CrMoAL Recycled Pet Drink Bottle Flake Extrusion and Pelleting Line
350-400kg/hr 38CrMoAL Recycled Pet Drink Bottle Flake Extrusion and Pelleting Line
350-400kg/hr 38CrMoAL Recycled Pet Drink Bottle Flake Extrusion and Pelleting Line
350-400kg/hr 38CrMoAL Recycled Pet Drink Bottle Flake Extrusion and Pelleting Line
350-400kg/hr 38CrMoAL Recycled Pet Drink Bottle Flake Extrusion and Pelleting Line
Specifications
Brand Name :
Lvdao
Model Number :
LDC-SJP-140
Certification :
CE, IAF, SGS， ISO9001:2008
Place of Origin :
China
MOQ :
1 set
Price :
$34500-36800 USD/set
Payment Terms :
T/T
Supply Ability :
30sets/month
Delivery Time :
50 days upon confirmation of purchasing order and down payments arrival
Packaging Details :
film packaging
Recycling material :
PET flakes(water bottle, drink bottle)
Screw type :
Single-screw
Screw and barrel size :
140*190*4200mm(L*W*H)
Length to diameter ratio :
30:1
Exhaust :
Vacuum exhaust
Quantitative feeding :
Yes
Automatic :
Yes
Output :
400kg/hr(The amount of output depends on the operating process)
Description

Plastic PET Granulator Machine is designed for the pellet and re-pellet production obtained from plastic, especially forcused on PET granulation.

The granules that the LVDAO particle cutting machine produce are uniform and beautiful.

Advantages:
1) noodle water-cooling cutting , ensures good shape.
2) Complete degassing
3) fhaving 2 filtrations. ensuring the purity of final pellets
4) Extrude more evenly, having more stable output and better pellets

5) CE Certificate

6) Long service life

7)Customized

Manufacturing Process:
materials being preheated feeding materials onto the belt conveyor- being squeezed evenly in the extruder- coming out from the machine head after venting and filtering system hydraulic screen changer- being cut by pelletizing system- being transferred into the silo- the end

Model Screw dia(mm) Out put(kg/h) Power(kw)

LDC-SJP-110

110

150-200

37

LDC-SJP-120

120

200-250

45

LDC-SJP-130

130

250-300

55

LDC-SJP-140

140

300-350

75

LDC-SJP-150

150

350-400

90

LDC-SJP-160

160

450-500

110

specifications

Feeding belt conveyor
Extruder Single screw, One stage extrusion
Cutting Type Strand (noodle) type pelletizing
Cooling Type Water cooled

Product

 Plastic pellets/granules

Material Type

 PET(Polyethylene terephthalate)

Material Shape

 (pre-crushed)Flakes

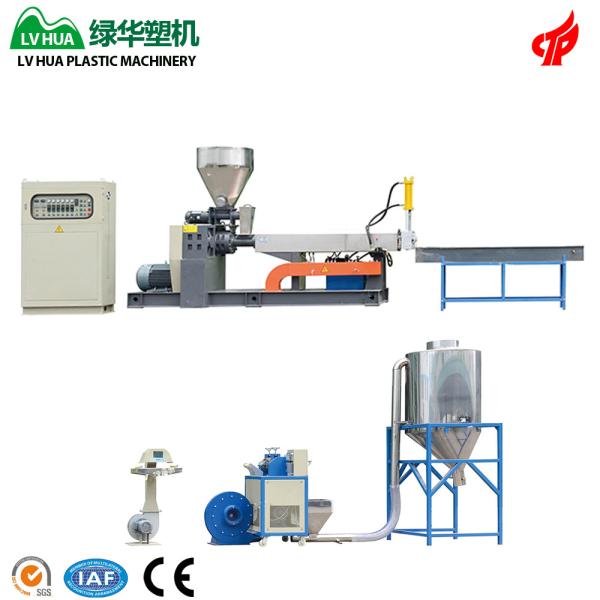

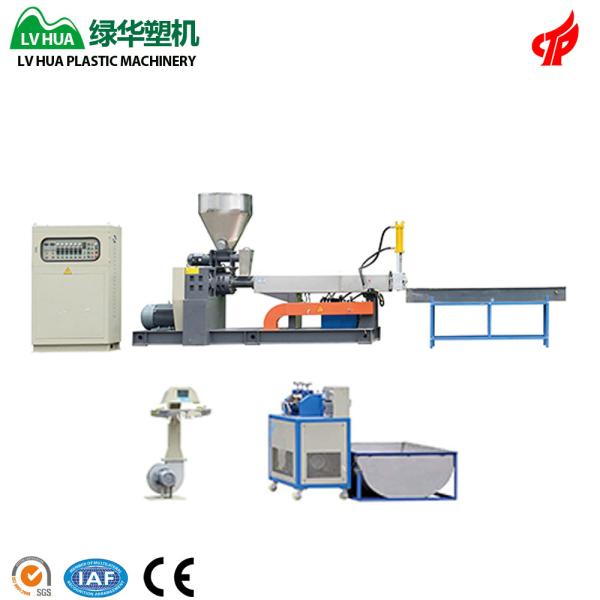

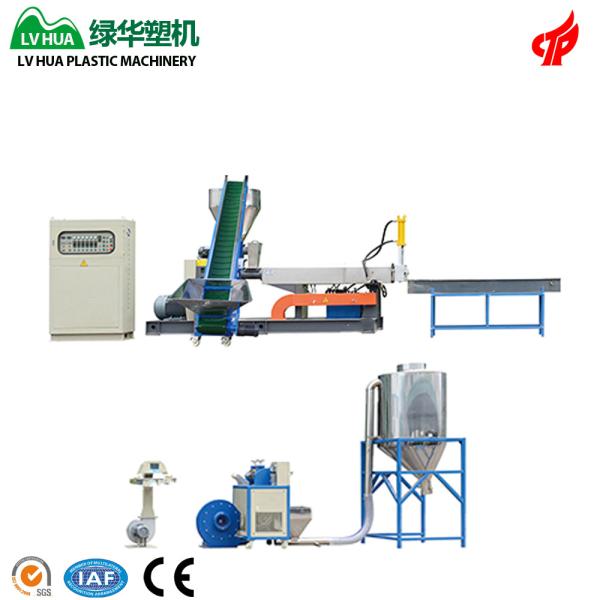

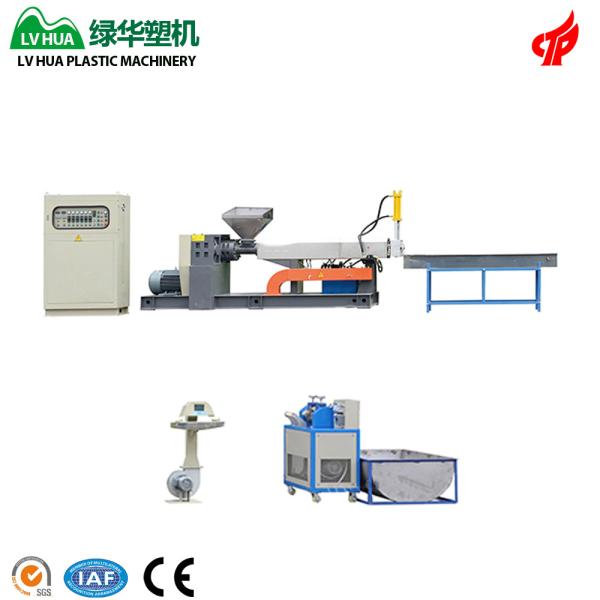

Machine Components

 Cabinet,extruder,water cooling tank,blower,cutter,silo
Output range 150kg~ 500 kg/hr
Screw Diameter 110~160mm (customized)
Screw L/D

30:1 (customized)
Screw Material

38CrMoAL
Voltage Customized based on request (For example: USA 480V 60Hz, Mexico 440V/220V 60Hz, Saudi Arabia 380V 60Hz, Nigeria 415V 50Hz...)
Optional Devices Conveyor,crusher,force feeder
Delivery Time 50days for customized machine.
Warranty 1 year
Technical Assistance Engineers available to service machinery overseas

350-400kg/hr 38CrMoAL Recycled Pet Drink Bottle Flake Extrusion and Pelleting Line

350-400kg/hr 38CrMoAL Recycled Pet Drink Bottle Flake Extrusion and Pelleting Line

350-400kg/hr 38CrMoAL Recycled Pet Drink Bottle Flake Extrusion and Pelleting Line

350-400kg/hr 38CrMoAL Recycled Pet Drink Bottle Flake Extrusion and Pelleting Line

350-400kg/hr 38CrMoAL Recycled Pet Drink Bottle Flake Extrusion and Pelleting Line350-400kg/hr 38CrMoAL Recycled Pet Drink Bottle Flake Extrusion and Pelleting Line350-400kg/hr 38CrMoAL Recycled Pet Drink Bottle Flake Extrusion and Pelleting Line350-400kg/hr 38CrMoAL Recycled Pet Drink Bottle Flake Extrusion and Pelleting Line350-400kg/hr 38CrMoAL Recycled Pet Drink Bottle Flake Extrusion and Pelleting Line

350-400kg/hr 38CrMoAL Recycled Pet Drink Bottle Flake Extrusion and Pelleting Line

FAQ

Q:Are you machinery factory or trading company?
A:We are machinery factory with 20 years experience in Ningbo. And we can export machines by ourselves.

Q: Which kind of machine do you make?
A: We mainly produce plastic recycling machine,pelletizing machine and other auxiliary machine , according to the different raw material, different output and different industrial voltage in working place,you can choose different machines.

Q: How can we visit your company and machines?
A: Our factory is located in Ningbo City,near Shanghai and Hangzhou. About 3 hours away from Shanghai International Airport.

Q:Can you customized machine?
We can make the products following the customers' requirement,like the shape,size,color,logo and other spec details.
