Specifications
Brand Name :
Lvdao
Model Number :
LDG-SJP-160-90
Certification :
CE, SGS, ISO9001:2008
Place of Origin :
Zhejiang, China(Mainland)
MOQ :
1 SET
Payment Terms :
L/C, T/T
Supply Ability :
30set/month
Delivery Time :
40 work days upon confirmation of purchasing order and down payments arrival
Packaging Details :
film packaging
Condition :
New
Type :
Granulating recycling machine
Capacity :
60-90kg/h (depend on material)
Recycle materials :
EPS/XPS foam board
Screw Design :
Single screw
Voltage :
Customized (220v/240v/415v/440v, 50hz/60hz)
Motor Power :
15Kw, 7.5Kw
Dimension :
APPROX. 8*2*3m(L*W*H)
Weight :
APPROX. 4500KG/SET
Warranty :
1 Year
After-sales service :
Engineer oversea
Usage :
Making EPS/XPS plastic pellets
Final Products :
EPS/XPS granules(reuse or resale)
Colour :
Customized
Stage type :
Double stages
Screw diameter :
160*193*640MM
Advantage :
Long service time
Description

Plastic EPS/XPS Granulator Machine is designed for the pellet and re-pellet production obtained from plastic, especially forcused on EPS/XPS granulation.

The granules that the LVDAO particle cutting machine produce are uniform and beautiful.

Advantages:
1) noodle water-cooling cutting , ensures good shape.
2) fhaving 2 filtrations. ensuring the purity of final pellets
3) Extrude more evenly, having more stable output and better pellets

4) CE, IAF, SGS, IOS9001:2008 Certificate

5) Long service life

6) Customized

7) Engineers available overseas

Parameter table:

Model Screw dia.(mm) long dia.ratio output(kg/h) screw rotate speed(r/min) power(kw)
LDG-SJP-160-90 160-90 4:1-8:1 60-90 560-65 15-5.5
LDG-SJP-185-105 185-105 4:1-8:1 100-150 560-65 22-7.5
LDG-SJP-220-120 220-120 4:1-8:1 150-180 560-65 30-11
LDG-SJP-250-135 250-135 4:1-8:1 200-250 560-65 45-15

Specifications

Feeding Bowler conveyor
Extruder Single screw, Two stage extrusion
Cutting Type Strand (noodle) type pelletizing
Cooling Type Water cooled

Product

Plastic pellets/granules

Material Type

EPX/XPS (Expandable Polystyrene/extruded polystyrene)

Material Shape

EPS/XPS FOAM BOARD

Machine Components

Cabinet,extruder,water cooling tank,blower,cutter,silo
Output range 60kg~ 250 kg/hr
Screw Diameter 160~250mm (customized)
Screw L/D

4:1 (customized)

Screw Material 45# steel
Voltage Customized based on request (For example: USA 480V 60Hz, Mexico 440V/220V 60Hz, Saudi Arabia 380V 60Hz, Nigeria 415V 50Hz...)
Delivery Time 50days for customized machine.
Warranty 1 year
Technical Assistance Engineers available to service machinery overseas

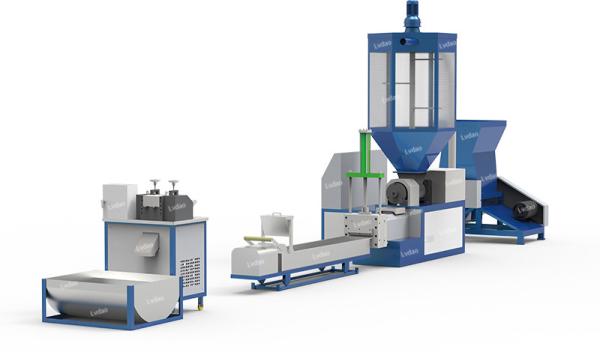

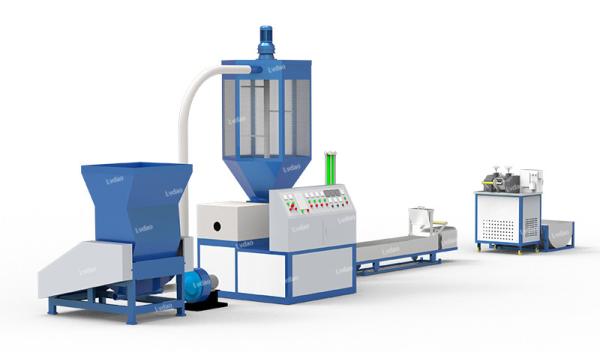

EPS / XPS Foam Board Plastic Recycling Machine 60 - 90KG/H Recycling Machine LineEPS / XPS Foam Board Plastic Recycling Machine 60 - 90KG/H Recycling Machine LineEPS / XPS Foam Board Plastic Recycling Machine 60 - 90KG/H Recycling Machine LineEPS / XPS Foam Board Plastic Recycling Machine 60 - 90KG/H Recycling Machine LineEPS / XPS Foam Board Plastic Recycling Machine 60 - 90KG/H Recycling Machine Line

EPS / XPS Foam Board Plastic Recycling Machine 60 - 90KG/H Recycling Machine Line

EPS / XPS Foam Board Plastic Recycling Machine 60 - 90KG/H Recycling Machine Line

EPS / XPS Foam Board Plastic Recycling Machine 60 - 90KG/H Recycling Machine Line

FAQ

Q:Are you machinery factory or trading company?
A:
We are machinery factory with 20 years experience in Ningbo. And we can export machines by ourselves.

Q: Which kind of machine do you make?
A:
We mainly produce plastic recycling machine,pelletizing machine and other auxiliary machine , according to the different raw material, different output and different industrial voltage in working place,you can choose different machines.

Q: How can we visit your company and machines?
A:
Our factory is located in Ningbo City,near Shanghai and Hangzhou. About 3 hours away from Shanghai International Airport.

Q:Can you customized machine?
We can make the products following the customers' requirement,like the shape,size,color,logo and other spec details.

WHY CHOOSE US

1.Since 1997, professional manufacturer of plastic recycling machinie and pelletizing machine ;
2.300 pcs quantity of recycling machine in one year.
3.Promise:We will provide technical support for all lifetime with over 20 years experiences.

More details, please contact us now! Your email address will not be published.

Features:

LDG series is used for EPS,XPS recycling and pelletizing,especially for sorting materials and transform rubbish into treasure. It is an ideal choice for environmental protecting of the supermarket and residential areas. This machine line adopt the fast compact ,fast melting, extruding with filter and one-step processing makes the plastic granules.
