Multi-channel Hot Air Staking Controller for Plastic Staking
Multi-channel Hot Air Staking Controller for Plastic Staking
Multi-channel Hot Air Staking Controller for Plastic Staking
Multi-channel Hot Air Staking Controller for Plastic Staking
Specifications
Brand Name :
meihaowelder
Model Number :
HF-800-2, HF-800-3, HF-800-4
Place of Origin :
suzhou china
MOQ :
1 set
Controller rated power :
1600W, 2400W, 3200W
Controller rated voltage :
AC 200V~240V 50Hz
Controller output voltage :
AC 220V
Heating temperature set range :
50~600℃
Program Storage Capacity :
Up to 5 program sets
Parameter password protection function :
Yes
Thermocouple type :
Type K
Communication Interface :
Ethernet
Parameter display and setting :
7-inch True Color Touch Screen
Language support :
Chinese，English
External dimensions(mm) :
225 x 295 x 210
Description

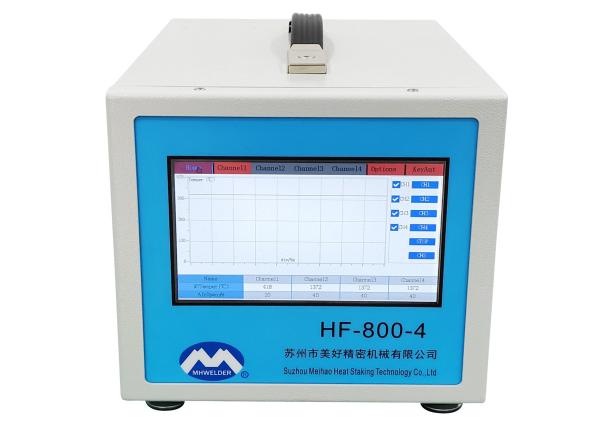

Multi-channel Hot Air Staking Controller for Plastic Staking

Our Multi-channel Hot Air Staking Controller is a great solution designed specifically for plastic staking applications. With its advanced technology and precise control, our Multi-channel Hot Air Staking Controller enables secure and efficient plastic staking production tasks.

This controller is specifically engineered to excel in "hot air cold staking" and "plastic staking" techniques. With multiple channels, it provides the flexibility to handle various plastic staking requirements simultaneously, enhancing productivity and reducing downtime.

Equipped with user-friendly interfaces and intuitive controls, our Multi-channel Hot Air Staking Controller simplifies operation and minimizes training time. The robust construction ensures durability and longevity, making it suitable for demanding industrial environments.

Specification Table for Hot Air Staking Controller

Model HF-800-2 HF-800-3 HF-800-4
Number of channels

2

 3 4
Rated power 1600W 2400W 3200W
Rated voltage AC 200V~240V 50Hz
Output voltage AC 220V
Heating temperature set range 50~600℃
Thermocouple type Type K
Communication interface Ethernet
Program storage capacity Up to 5 program sets
Channel count 4 channels
Parameter display and setting 7-inch true color touch screen
Parameter password Yes
External dimensions ( mm )
225 x 295 x 210
Weight ( excluding wiring )
 8 kg 10 kg 12 kg
Attention: Parameter changes caused by product upgrades or other factors will not be notified separately. The physical product shall prevail. Hereby declared!

Common Shapes of Plastic Staking Points

Multi-channel Hot Air Staking Controller for Plastic Staking Multi-channel Hot Air Staking Controller for Plastic Staking Multi-channel Hot Air Staking Controller for Plastic Staking
Multi-channel Hot Air Staking Controller for Plastic Staking Multi-channel Hot Air Staking Controller for Plastic Staking Multi-channel Hot Air Staking Controller for Plastic Staking

Examples of Hot Air Staking Controller Applications

Multi-channel Hot Air Staking Controller for Plastic StakingMulti-channel Hot Air Staking Controller for Plastic StakingMulti-channel Hot Air Staking Controller for Plastic Staking
