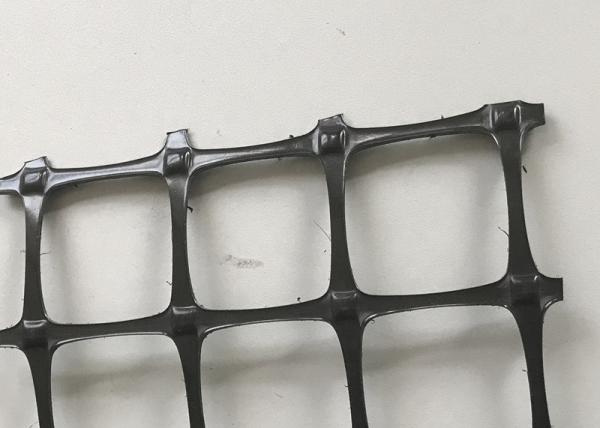

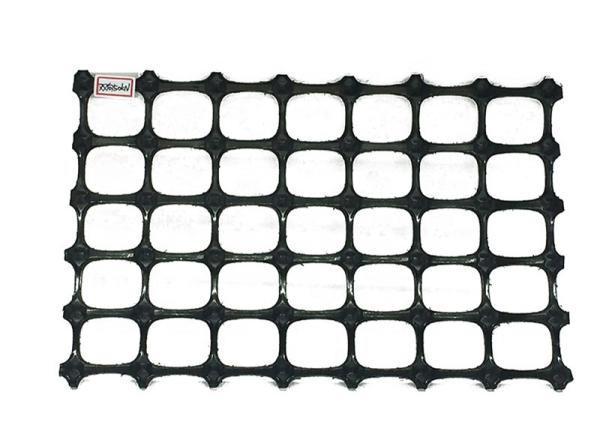

Iso Low Elongation Pp Biaxial Geogrid Dams Reinforcement
Iso Low Elongation Pp Biaxial Geogrid Dams Reinforcement
Iso Low Elongation Pp Biaxial Geogrid Dams Reinforcement
Iso Low Elongation Pp Biaxial Geogrid Dams Reinforcement
Iso Low Elongation Pp Biaxial Geogrid Dams Reinforcement
Iso Low Elongation Pp Biaxial Geogrid Dams Reinforcement
Iso Low Elongation Pp Biaxial Geogrid Dams Reinforcement
Iso Low Elongation Pp Biaxial Geogrid Dams Reinforcement
Iso Low Elongation Pp Biaxial Geogrid Dams Reinforcement
Iso Low Elongation Pp Biaxial Geogrid Dams Reinforcement
Iso Low Elongation Pp Biaxial Geogrid Dams Reinforcement
Iso Low Elongation Pp Biaxial Geogrid Dams Reinforcement
Iso Low Elongation Pp Biaxial Geogrid Dams Reinforcement
Iso Low Elongation Pp Biaxial Geogrid Dams Reinforcement
Iso Low Elongation Pp Biaxial Geogrid Dams Reinforcement
Iso Low Elongation Pp Biaxial Geogrid Dams Reinforcement
Iso Low Elongation Pp Biaxial Geogrid Dams Reinforcement
Iso Low Elongation Pp Biaxial Geogrid Dams Reinforcement
Specifications
Brand Name :
Hengquan
Model Number :
TGSG15,TGSG20,TGSG25,TGSG30,TGSG35,TGSG40,TGSG45,TGSG50
Certification :
ISO 9001
Place of Origin :
China
MOQ :
1000m2
Price :
Deliberation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
40000 squre meters per week
Delivery Time :
5-8 days
Packaging Details :
packing belt
Product Name :
Plastic geogrid
Elongation :
20%
Roll Width :
3.95/5.95m
Tensile Strength :
30 KN X 30 KN
MOQ :
1000M2
Mesh Size (mm) :
12.7*12.7/ 25.4*25.4/ 40*40
Features :
UV resistance / Cost effective/Flexible and durable
deliver time :
about 10 days after order was confirmed
Description

Reinforcement of dams retaining walls reinforcements ISO certification low elongation biaxial geogrid

About Hengquan

We have experience for more than 7 years. There are two product lines for geogrid and geocell. Factory work 24hours a day, we sold more than 100,000,000rmb last year(2020). Our customers are all over the world.

Iso Low Elongation Pp Biaxial Geogrid Dams Reinforcement

Brief Introduction of Geocell Confinement System

Geogrid is a new type of synthetic material with many technical advantages. This paper introduces the application of geogrid in soft soil foundation, filling road section, pavement construction, and backfill soil, points out the key points of construction technology, and analyzes it in combination with engineering cases. It is hoped to provide experience and reference for similar projects, improve the construction quality of highway projects, and obtain economic and social benefits.

Geogrid System Characteristic

When the external force acts on the grid unevenly, the mesh will deform due to the transverse tensile stress, which shows the restraint effect and has strong adaptability to the non-uniform distributed load. The geogrid has high friction resistance. When used as reinforcement, it can enhance the shear strength of the structural layer and improve the overall stability.

Laying method

2. The construction method of the second layer of geogrid is the same as that of the first layer. Finally, 0.3m of medium (coarse) sand is filled. The filling method is the same as that of the first layer. After static pressing twice with a 25T road roller, the roadbed will be The base reinforcement is done.
3. After the third layer (coarse) sand is rolled, lay two geogrids on both sides of the slope along the longitudinal direction of the line, overlap 0.16m, and connect them in the same way, and then start the earthwork construction operation, laying For slope protection of geogrids, the laid side lines must be measured on each layer, and each side must ensure that the geogrids are buried within 0.10m of the slope after the slope is repaired.

Factory and Equipment:

Iso Low Elongation Pp Biaxial Geogrid Dams Reinforcement

Product inventory:

Iso Low Elongation Pp Biaxial Geogrid Dams Reinforcement

Application:

1. If used in road construction, geogrid can not only help the foundation increase the bearing capacity, effectively prolong the service life of the foundation, but also effectively prevent the ground from cracking or collapse, so as to ensure that the ground can remain beautiful and smooth .
2. If used in culvert construction, geogrid can effectively prevent cracks in culverts and prevent culverts from collapsing. If used in soil slope construction, geogrid can effectively prevent soil loss from soil slope.

Iso Low Elongation Pp Biaxial Geogrid Dams Reinforcement

Specifications
Specifications: Biaxial geogrid
Item Properties Units MD Values1 XMD Values1
1 Aperture dimensions2 mm (in.) 25 (1.0) 33 (1.3)
2 Minimum rib thickness2 mm (in.) 0.76 (0.03) 0.76 (0.03)
3 Tensile strength at 2% strain3 kN/m (lb/ft.) 4.1 (280) 6.6 (450)
4 Tensile strength at 5% strain3 kN/m (lb/ft.) 8.5 (580) 13.4 (920)
5 Ultimate tensile strength3 kN/m (lb/ft.) 12.4 (850) 19.0 (1,300)
Structural Properties
6 Junction efficiency4 % MD Values1
7 Flexural stiffness5 mg-cm 250.000
8 Aperture stability6 m-N/deg 0.32
Durability
9 Resistance to installation damage7 %SC/%SW/%GP 95/93/90
10 Resistance to long term degradation8 % 100
11 Resistance to UV degradation9 % 100
Dimensions
12 Roll sizes m (ft.) 3.0 × 75.0 (9.8 × 246); 4.0 × 75.0 (13.1 × 246)
Certifications
Our Company

Year of Registration: 2014

Place of Registration: China

Registrated Capital: CNY105,000,000.00

Briture Co., Ltd

was approved by Chinese Bureau of Commerce

Contact

Leo

Tel: +8615031817097

Whatsapp/Wechat: +8615031817097

Email: leocui2017@hotmail.com

Website: www.plastic-geogrid.com

Download PDF: Catalog of Hengquan -plastic geogrid.pdf
