25kn/M-300kn/M Biaxial Plastic Geogrid Pp For Workshop
25kn/M-300kn/M Biaxial Plastic Geogrid Pp For Workshop
25kn/M-300kn/M Biaxial Plastic Geogrid Pp For Workshop
25kn/M-300kn/M Biaxial Plastic Geogrid Pp For Workshop
25kn/M-300kn/M Biaxial Plastic Geogrid Pp For Workshop
25kn/M-300kn/M Biaxial Plastic Geogrid Pp For Workshop
25kn/M-300kn/M Biaxial Plastic Geogrid Pp For Workshop
25kn/M-300kn/M Biaxial Plastic Geogrid Pp For Workshop
25kn/M-300kn/M Biaxial Plastic Geogrid Pp For Workshop
25kn/M-300kn/M Biaxial Plastic Geogrid Pp For Workshop
25kn/M-300kn/M Biaxial Plastic Geogrid Pp For Workshop
25kn/M-300kn/M Biaxial Plastic Geogrid Pp For Workshop
Specifications
Brand Name :
HENGQUAN
Model Number :
Z01
Certification :
CE /ISO9001
Place of Origin :
China
MOQ :
5000 sqm
Price :
0.46usd/㎡
Payment Terms :
T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability :
10,000 squre meters per week
Delivery Time :
5 days after 100% payment
Packaging Details :
PP Bags
After-sale Service :
Online technical support, Onsite Installation
Application :
Workshop, Highway Road
Length :
50m/100m/roll (as Requested)
Tensile strength :
15-60KN
Project Solution Capability :
graphic design, 3D model design
Raw Material :
Polypropylene
MESH SIZE :
12.7*12.7mm. 25.4*25.4mm
Sample :
Freely
Description

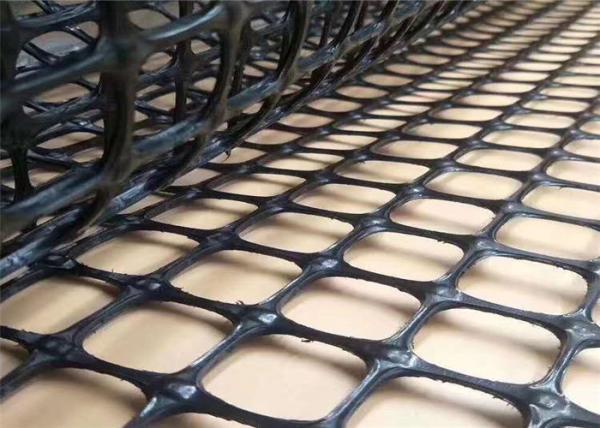

High Tear Strength Cost Effective Tensile Strength 25Kn/M--300Kn/M PP Biaxial Plastic Geogrid

1. PP Biaxial Plastic Geogrid is made from PP resin as its raw material, produced through extruding, punching, heating, longitudinal stretching, transverse stretching.

2. Performance: High tensile strength at both longitudinal & transverse dire.

3. Main type: 15-15, 20-20, 25-25, 30-30, 40-40, 50-50

Feature:

PP Geogrid advangages:

•High Tear Strength

•Flexible and durable

•Excellent Creep Resistance

•UV resistance

•Cost effective

Item
TGSG 15-15
TGSG 20-20
TGSG 25-25
TGSG 30-30
TGSG 40-40
TGSG 45-45
TGSG
50-50
Vertical Tensile Strength (KN/m) ≥
15
20
25
30
40
45
50
Horizontal Tensile Strength (KN/m)
15
20
25
30
40
45
50
cVertical elongation ration (%) ≤
13
Horizontal elongation ration (%) ≤
13
Vertical stretching force at 2% elongation(KN/m) ≥
5
7
9
10
14
16
17.5
Horizontal stretching force at 2% elongation(KN/m) ≥
5
7
9
18
14
16
17.5
Vertical stretching force at 5% elongation(KN/m) ≥
7
14
17
21
28
32
35
Horizontal stretching force at 2% elongation(KN/m) ≥
7
14
17
21
28
32
35
Length (m)
50
Width (m)
1-6m

Packaging & delivery

Packaging Details of Biaxial Geogrid for Civil Engineering

Standard Export Packing. Or Packed as customers' requests.

Delivery Time of Biaxial Geogrid for Civil Engineering

within 15 days after receiving the deposit payment& Delivery

Application

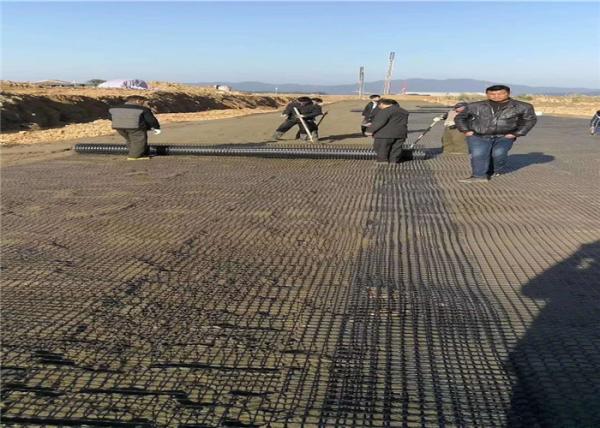

Plastic biaxial geogrid is the ideal geotechnical material in situations where stresses are applied in two directions, it is the ideal geotechnical product used to reinforce the pavement base and improve the subgrade for any soil stabilization and reinforcement applications such as municipal roads, highways railway, access roads, parking lots industrial shipping yards, etc. provides high strength, high performance, longer life, ensured reliability and quick installation for base reinforcement of paved roads, construction haul roads, foundation reinforcement, permanent unpaved roads, working platforms on weak soils, parking areas, etc.

Applications

· Mine roof and rib control

· Long wall shield recovery screens

· Soft bottom reinforcement

· Haul road stabilization

· Mine stoppings

· Ventilation control

· Heap leach and tailings

· General earthwork constructio
