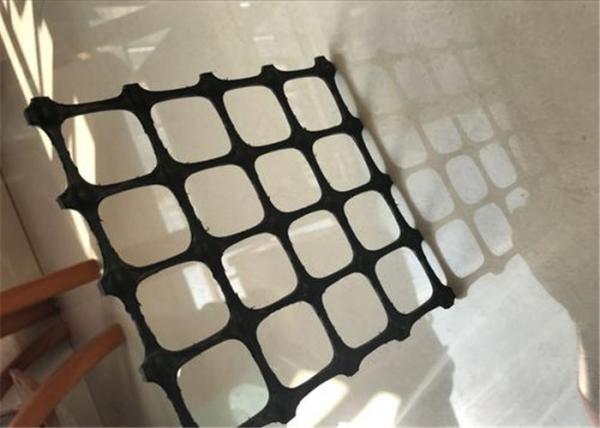

3030 60kn Biaxial Plastic Geogrid Civil Engineering Construction
3030 60kn Biaxial Plastic Geogrid Civil Engineering Construction
3030 60kn Biaxial Plastic Geogrid Civil Engineering Construction
3030 60kn Biaxial Plastic Geogrid Civil Engineering Construction
3030 60kn Biaxial Plastic Geogrid Civil Engineering Construction
3030 60kn Biaxial Plastic Geogrid Civil Engineering Construction
Specifications
Brand Name :
HENGQUAN
Model Number :
Z01
Certification :
CE /ISO9001
Place of Origin :
China
MOQ :
5000 sqm
Price :
0.46usd/㎡
Payment Terms :
T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability :
10,000 squre meters per week
Delivery Time :
5 days after 100% payment
Packaging Details :
PP Bags
Coating :
Bitumen
Raw Material :
HDPE Plastic
Width :
2m-8m
Roll Length :
50-100m
Certificate :
CE/ISO9001 ISO14001
Tensile strength :
25Kn/m--300Kn/m
After-sale Service :
Onsite Installation, Onsite Inspection, Return and Replacem
Application :
road， Road Railway Construction
Color :
Black
MESH SIZE :
12.7*12.7mm/ 25.4*25.4mm/ 50.8*50.8mm
Description

PP Biaxial Geogrid Plastic Civil Engineering Construction Geogrids for Reinforcement Road

Plastic soil reinforcement biaxial geogrid

Plastic geogrid can be used to enhancement of permanent bearable soft including roads and railways embankment, slopes, tunnel, airfields, and ground which cargo lays on and their main usage are as follows:


1.Enhance the bearing capacity of road foundation and extend the duration of roads.
2.Prevent road surface from collapse, crack and being dirty.
3.Be convenient for construction, timesaving and cut down the cost of maintenance.
4.Prevent tunnel from crack occurring.
5.Further solidity slopes to proof water and soil from losses.
6.Reduce the surface thickness of the ground.
7.Consolidate the net for growing grass on the slopes so as to stabilization surrounding virescence.

Features


1. Strengthen soil slopes to prevent soil erosion.

2. Can replace metal mesh, used in coal mine underground false roof network.

3. Supporting the stability of grass slope mats, greening environment.

Geogrid usage

1. Reinforcement of road beds of various highways, railways and airports.

2. Reinforcement of permanent bearing road beds of large parking area and dock goods yard.

3. Slope protections and culvert reinforcement of railway and highway.

4. Secondary reinforcement of soil slope after unidirectional tension geotechnical grid reinforcement and further reinforcement of soil slope sp as to avoid soil erosion.

5. Reinforcement of mile and gallery.


Index Properties
Units
MD Values
XMD Values
Aperture Dimensions
mm (in)
38 (1.5)
38 (1.5)
Minimum Rib Thickness
mm (in)
1.1 (0.04)
0.8 (0.03)
Tensile Strength @ 2% Strain
kN/m (lb/ft)
6.5 (450)
6.5 (450)
Tensile Strength @ 5% Strain
kN/m (lb/ft)
13 (890)
13 (890)
Ultimate Tensile Strength
kN/m (lb/ft)
20 (1370)
20 (1370)
Structural Integrity
Junction Efficiency
%
93
Overall Flexural Rigidity
mg-cm
700,000
Aperture Stability
m-N/deg
0.45
Durability
Resistance to Installation Damage
%SC / %SW / %GP
95 / 93 / 90
Resistance to Long Term Degradation
%
100
Resistance to UV Degradation
%
100

Biaxial Fiberglass Geogrid
item
Specification
Type
EGA
30-30
EGA
50-50
EGA
80-80
EGA
100-100
EGA
120-120
EGA
150-150
EGA
200-200
EGA
300-300
Grid size (mm)
12.5*12.5 or 25.4*25.4 or 50.8*50.8
Latitude and longitude breaking strength ≥(KN/M)
30
50
80
100
120
150
200
300
Elongation at break in warp and weft ≤(%)
4

Packed in woven geotextile and strength belt or PE film Or packed according to customers' requirements such as mark the company Logo (Export standard package).

Packaging size and container capacity vary according to product specifications.
