Specifications
Place of Origin :
China
Brand Name :
Hengquan
Certification :
ISO 9001
Model Number :
100 - 800 G/㎡
MOQ :
1000m2
Price :
Deliberation
Packaging Details :
packing belt
Delivery Time :
5-8 days
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
40000M2 per week
Material :
Polyester
Thickness :
0.9 - 4.0 mm
color :
Black , White , Grey, Green
Weight :
100 - 800 g
width :
1-5.95 meters
length :
50 or 100 meters
Application :
Resistant To Corrosion Acids And Alkalis
Description

Resistant To Corrosion Acids And Alkalis High Strength Polyester Non Woven Geotextile Fabric

Non woven Geotextile Fabric Description

Material: Polyester(PET)

Weight / Mass: 100gsm ~ 800gsm

Width: 1m ~ 6m

Length: 50m or 100m/roll

Thickness: 0.9mm ~ 5.0mm

Temperature range: -60℃ ~ +60℃

Color: Black , white , grey, green

PET Long fiber geotextile was made from virgin polyester chips, the continous filament was extruded from polyester chip by machine directly by spunbond process. Pet Long Fiber Non woven Geotextile punch together to get the stable 3D with higher strength fabric . so Non woven Geotextile Fiber has high strength , good creep property excellent and erosion resistance, aging-resistance and heat resistance.

Non woven Geotextile Fabric Specification

Gram weight Thickness(mm) Breaking strength(kn/m) CBR burst strength(KN) Elongation at break(% Tear Strength(KN) Sieve size O99(O35)mm
100 0.9 2.5 0.3 25-100 0.08 0.07-2.0
150 1.3 4.5 0.6 25-100 0.12 0.07-2.0
200 1.7 6.5 0.9 25-100 0.16 0.07-2.0
250 2.1 8.0 1.2 25-100 0.20 0.07-2.0
300 2.4 9.5 1.5 25-100 0.24 0.07-2.0
350 2.7 11.0 1.8 25-100 0.28 0.07-2.0
400 3.0 12.5 2.1 25-100 0.33 0.07-2.0
450 3.3 14.0 2.4 25-100 0.38 0.07-2.0
500 3.6 16.0 2.7 25-100 0.42 0.07-2.0
600 4.1 19.0 3.2 25-100 0.46 0.07-2.0
800 5.0 25.0 4.0 25-100 0.60 0.07-2.0

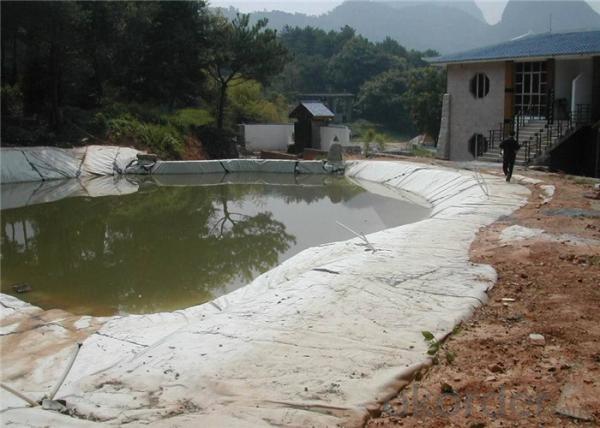

Non woven Geotextile Fabric Application

Widely used in geotechnical engineering such as water conservancy, electricity,mines,roads and railways.

1.Filter material for soil separation;

2.Drainage material for the beneficiation of reservoirs & mines, and foundations of high-rise buildings;

3.Anti-scouring materials for river dykes and slope protection;

4.Reinforcing materials for railways,highways, and airport running road foundations and etc

Quality Control

We have established a national-standard laboratory for in-house quality control and built a strict quality control system in all aspects from raw materials testing and production processes to final product quality testing.

Not only is stringent internal quality control carried out at OBOR, but regular testing and analyzing of our product performance is implemented by authoritative testing organizations in Europe and the United States.
