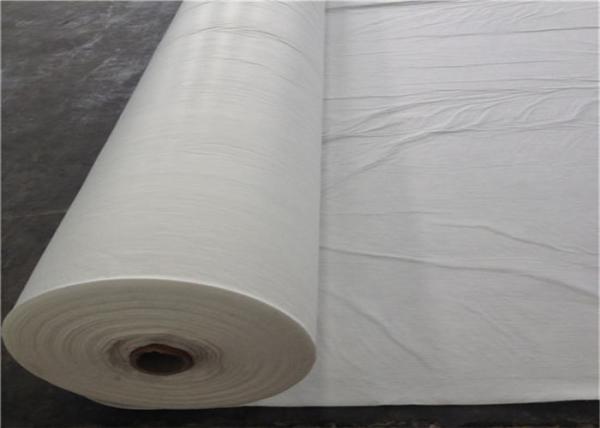

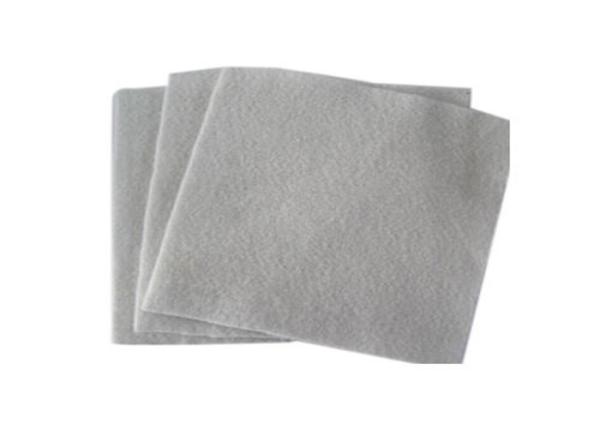

River Bank Protection PET 100m Non Woven Geotextile Fabric
River Bank Protection PET 100m Non Woven Geotextile Fabric
River Bank Protection PET 100m Non Woven Geotextile Fabric
River Bank Protection PET 100m Non Woven Geotextile Fabric
River Bank Protection PET 100m Non Woven Geotextile Fabric
River Bank Protection PET 100m Non Woven Geotextile Fabric
River Bank Protection PET 100m Non Woven Geotextile Fabric
River Bank Protection PET 100m Non Woven Geotextile Fabric
River Bank Protection PET 100m Non Woven Geotextile Fabric
River Bank Protection PET 100m Non Woven Geotextile Fabric
River Bank Protection PET 100m Non Woven Geotextile Fabric
River Bank Protection PET 100m Non Woven Geotextile Fabric
River Bank Protection PET 100m Non Woven Geotextile Fabric
River Bank Protection PET 100m Non Woven Geotextile Fabric
River Bank Protection PET 100m Non Woven Geotextile Fabric
River Bank Protection PET 100m Non Woven Geotextile Fabric
River Bank Protection PET 100m Non Woven Geotextile Fabric
River Bank Protection PET 100m Non Woven Geotextile Fabric
Specifications
Place of Origin :
China
Brand Name :
Hengquan
Certification :
ISO 9001
Model Number :
100 - 800 G/㎡
MOQ :
1000m2
Price :
Deliberation
Packaging Details :
packing belt
Delivery Time :
5-8 days
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
40000M2 per week
Material :
Polyester
Thickness :
0.9 - 4.0 mm
color :
Black , White , Grey, Green
Weight :
100 - 800 g
width :
1-5.95 meters
length :
50 or 100 meters
Application :
River Bank Protection
Description

River Bank Protection And Tunnel High Strength Polyester Non Woven Geotextile Fabric

Non woven Geotextile Fabric Description

Material: Polyester(PET)

Weight / Mass: 100gsm ~ 800gsm

Width: 1m ~ 6m

Length: 50m or 100m/roll

Thickness: 0.9mm ~ 5.0mm

Temperature range: -60℃ ~ +60℃

Color: Black , white , grey, green

PET Long fiber geotextile was made from virgin polyester chips, the continous filament was extruded from polyester chip by machine directly by spunbond process. Pet Long Fiber Non woven Geotextile punch together to get the stable 3D with higher strength fabric . so Non woven Geotextile Fiber has high strength , good creep property excellent and erosion resistance, aging-resistance and heat resistance.

Non woven Geotextile Fabric Specification

Gram weight Thickness(mm) Breaking strength(kn/m) CBR burst strength(KN) Elongation at break(% Tear Strength(KN) Sieve size O99(O35)mm
100 0.9 2.5 0.3 25-100 0.08 0.07-2.0
150 1.3 4.5 0.6 25-100 0.12 0.07-2.0
200 1.7 6.5 0.9 25-100 0.16 0.07-2.0
250 2.1 8.0 1.2 25-100 0.20 0.07-2.0
300 2.4 9.5 1.5 25-100 0.24 0.07-2.0
350 2.7 11.0 1.8 25-100 0.28 0.07-2.0
400 3.0 12.5 2.1 25-100 0.33 0.07-2.0
450 3.3 14.0 2.4 25-100 0.38 0.07-2.0
500 3.6 16.0 2.7 25-100 0.42 0.07-2.0
600 4.1 19.0 3.2 25-100 0.46 0.07-2.0
800 5.0 25.0 4.0 25-100 0.60 0.07-2.0

Non woven Geotextile Fabric Features

1,Make the focus proliferate, deliver and decompose efficiently and prevent the soil from destruction from outside factor.

2, Prevent the top and bottom layer’s gravel, soil and concrete from mixer.

3,The mesh cannot be plugged easily – for the strain and moving quality of the network that formed by the antitype fiber.

4,High soaking quality—at the pressure of soil, it also can keep good soaking quality.

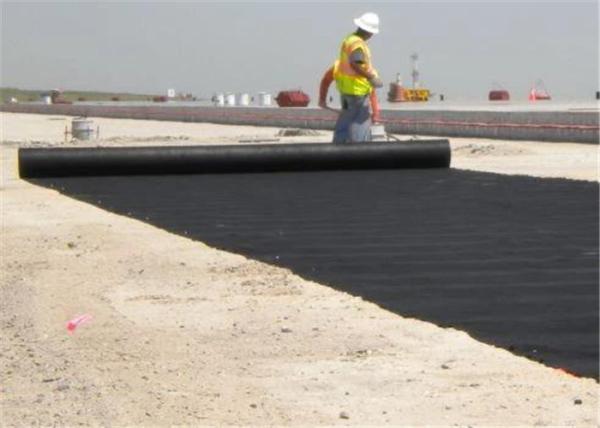

Non woven Geotextile Fabric Application

Retaining Wall

To stiffen a retaining wall in backfill or to anchor a retaining wall. Construction of wraparound retaining walls or abutments.

Road

Strengthen flexible pavement, repair cracks in the road, prevent reflection cracks.

Slope

To increase the stability of gravel slope and reinforced soil, prevent soil erosion and freezing damage of soil at low temperature.
