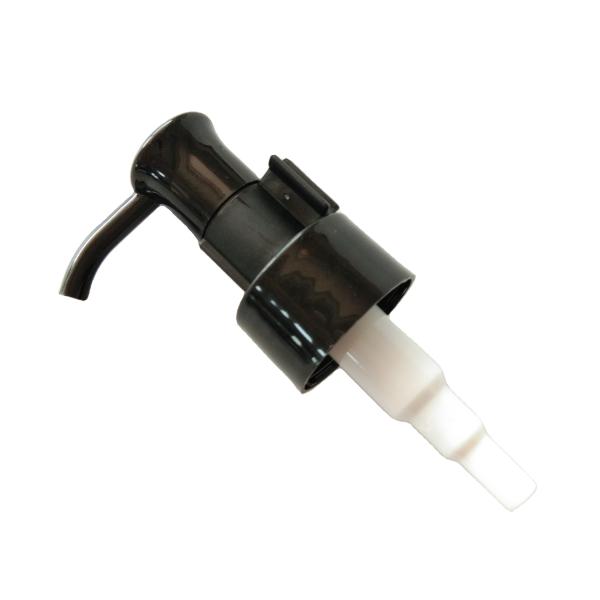

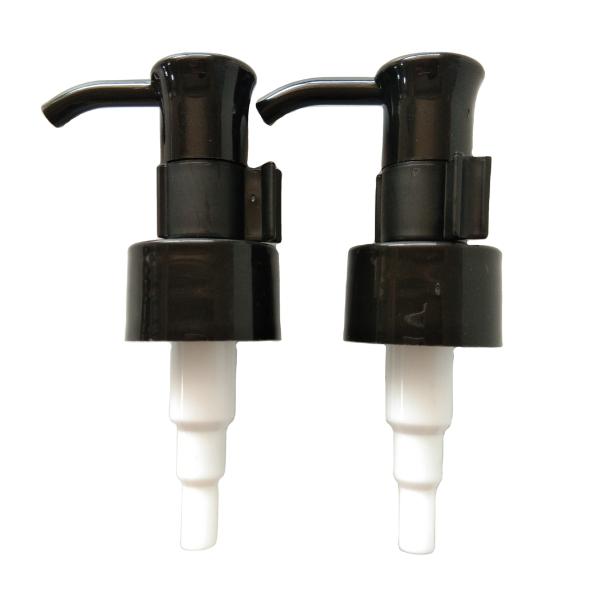

Lotion pump sare suitable for: Hand Sanitizer, Gel Paste, etc.. Each pump volume has 1.0 CC and 2.0 CC available for selection; Just Press 3-4 times can be out of liquid; left-right rotation can open or close the pump head. It’s easy to use; sealed design, leak-proof; Good Corrosion Resistance of Spring: The use of travel pump head products, convenient, worry-free.

Working principle of lotion pump

1. Press — press the head, press the head through the main column connected with the vice column together with compression spring, in the compression spring process, the Piston Wall through the inner wall friction with the body, forcing the Piston to open the vice column discharge hole; When the Piston slides down, the air in the body is discharged through the discharge hole of the sub-column which has been opened;

2. To and fro many times to press — press the air in the body completely;

3. Suction –press the head by hand through the main column, vice column, Piston, joint compression spring will be the body of the air out, loose head spring due to the loss of pressure, back(up) movement, at this time the Piston is also moving down through the friction of body wall, the discharge hole of the Auxiliary Column Is Closed; at this time, the liquid storage cavity in the body forms avacuum suction state, and the glass ball is sucked up, and the liquid in the bottle is sucked into the liquid storage cavity of the body through a suction pipe.

4. Storage of liquid — Press the head several times, and store the liquid to the body through several times of suction until the liquid is fully stored.

5. Discharge –when the liquid in the body liquid storage cavity is full, the liquid is directly ejected from the nozzle through the discharge hole by pressing the head again.

The Clip Lock

Clip lock pumps come in an array of lock up, twist lock and lock down styles. The clip lock lotion pump comes complete with a plastic clip attached to the neck of the pump. This is used to detect any tampering with the product (Tamper Evident) and can also be used as a child safety device.

All the lotion pumps mentioned can be used for a wide variety of liquid products. These include soaps, hand creams, antibacterial foams, body lotions or body wash and hair products.

Still, need some help with the lotion pump options available? Why not give one of our account managers a call today. They will be happy to discuss any information in great detail for you.
