Portable 1500-3000mm CNC Laser Gantry Cutter AutoCAD DXF Compatible for Sheet Metal & Motor Gear Core BMP & AI Features

Specifications

Place of Origin :

Anhui, China

Brand Name :

Toploong

Model Number :

1530/1630/1215

MOQ :

1 set

Price :

$3,600-3,980 / set

Certification :

motor type :

Servo motor

voltage :

220v/380v

rated power :

6.5kw

dimension(l*w*h) :

4200*2280*1600mm

weight (kg) :

350

warranty :

2 years

key selling points :

High Productivity

machinery test report :

Provided

video outgoing-inspection :

Provided

core components :

Gear, motor, Other

Cutting mode :

Laser Cutting

Product name :

CNC laser Metal Cutting Machine

Application :

Sheet Metal Industry

Name :

Cnc Cutting Machine Table

Type :

Metal Cutting Tools

Cutting material :

Multiple Materials

Control system :

TPL5100HC

Cutting thickness :

12mm

Function :

Cutting Steel Cnc Plasma Cutter

After-sales Service Provided :

Video technical support

Description

Product Description

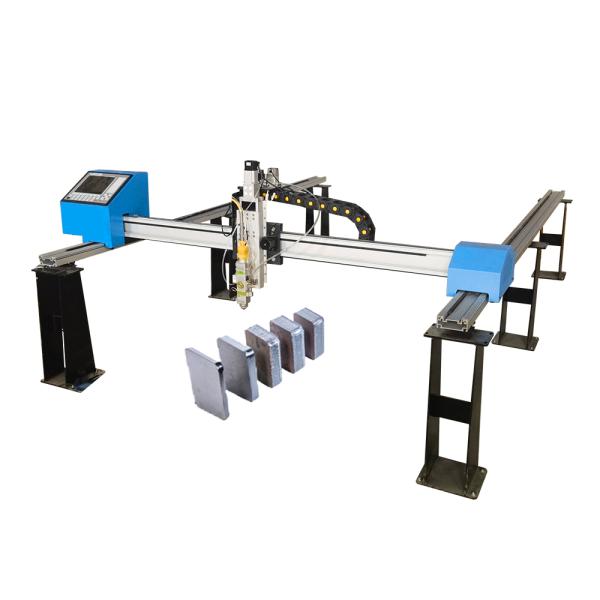

CNC LASER CUTTING MACHINE PORTABLE LIGHT GANTRY TYPE

Machine features: 1. High precision,Smooth and burr-free, especially suitable for Metal Designs advertising companies. 2. Integrated TOPLOONG cutting system, delivering precise and consistent cutting performance. 3. Machine adopt Detachable design structural, smaller size 1cbm only, cheaper shipping cost. https://youtube.com/shorts/EaGW6cDq7KA?feature=share

Specification

Main configuration
1	Model	1530 2040 3060
2	Effective cutting range(mm)	16003000/ 20006000/16003000/18003000 /3000*6000 etc.
3	Machine Input Voltage	110V/220V, 50HZ/60HZ
	Plasma power input voltage	3 PHASE 380V / 220v / 110V
4	motor	3	sets	LEADSHINE SERVO
5	driver	2	sets	LEADSHINE SERVO
	CNC system	1	sets	TOPLOONG
6	Plasma interface	1	sets	Top CNC Technology Co., Ltd.
7	The electromagnetic valve	1	sets	Ningbo
8	Secondary development software	1	sets	Wuhan Zhige Professional Edition
9	package	1	sets	Self-locking wooden box

Packing & Delivery

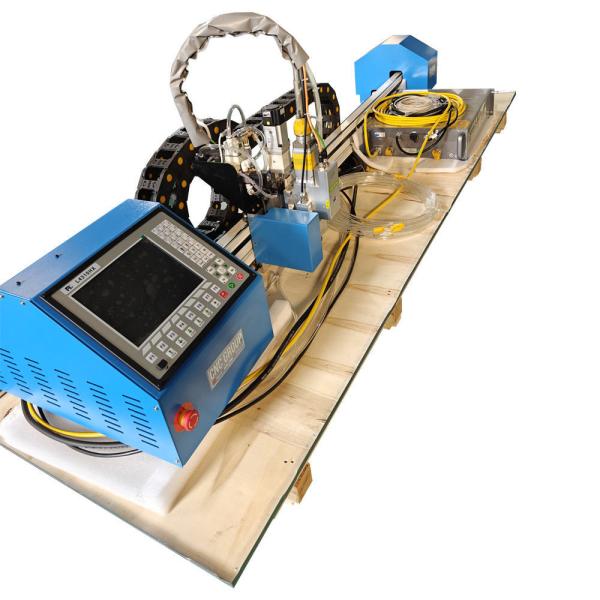

Packing By sea: 1, CNC BEAMS 2600*450*600mm 120kg 2, RAILS 3580*280*185mm 100kg 3, Water chiller 510*410*500 60KG Total 3pkgs 280kg 1cbm Packing By air 1, CNC and rails 2600*450*600mm 220kg 2, Water chiller 510*410*500 60KG Total 2pkgs 280kg 0.8cbm

Company Profile

FAQ

Cut thickenss Gas options 1200W(220v single phase): 1. >13bar air compressor (cut carbon steel 0.3-4mm , stainless steel,aluminum 0.3-4mm) 2. oxygen cylinder (cut carbon steel 0.3-12mm), 40L bottle can use 6.5hrs 3. Nitrogen cylinder(cut fine quality stainless steel , aluminum 0.3-4mm) Average power consumption 3-4KW Peak 6KW Cut thickenss Gas options 1500W(220v single phase): 1. >13bar air compressor (cut carbon steel 0.3-6mm , stainless steel,aluminum 0.3-6mm) 2. oxygen cylinder (cut carbon steel 0.3-16mm), 40L bottle can use 6.5hrs 3. Nitrogen cylinder(cut fine quality stainless steel , aluminum 0.3-6mm) Average power consumption 4.5-5KW Peak 7.5KW Cut thickenss Gas options 2000W(220v single phase): 1. >13bar air compressor (cut carbon steel 0.3-10mm , stainless steel,aluminum 0.3-8mm) 2. oxygen cylinder (cut carbon steel 0.3-20mm), 40L bottle can use 6.5hrs 3. Nitrogen cylinder (cut fine quality stainless steel , aluminum 0.3-8mm) Average power consumption 6-7KW Peak 9KW Cut thickenss Gas options 3000W(380v 3phase): 1. air compressor (cut carbon steel 0.3-12mm , stainless steel,aluminum 0.3-10mm) 2. oxygen cylinder (cut fine quality carbon steel 0.3-22mm), 40L bottle can use 6.5hrs 3. Nitrogen cylinder(cut fine quality stainless steel , aluminum 0.3-10mm) Average power consumption 9-10KW Peak 15KW Cut thickenss Gas options 6000W(380v 3phase): 1. air compressor (cut carbon steel 0.3-18mm , stainless steel,aluminum 0.3-18mm) 2. oxygen cylinder (cut fine quality carbon steel 0.3-24mm), 40L bottle can use 6.5hrs 3. Nitrogen cylinder(cut fine quality stainless steel ,aluminum 0.3-20mm) Cut thickenss Gas options 12000W(380v 3phase): 1. air compressor (cut carbon steel 0.3-25mm , stainless steel,aluminum 0.3-30mm) 2. oxygen cylinder (cut fine quality carbon steel 0.3-40mm), 40L bottle can use 6.5hrs 3. Nitrogen cylinder(cut fine quality stainless steel ,aluminum 0.3-40mm)
