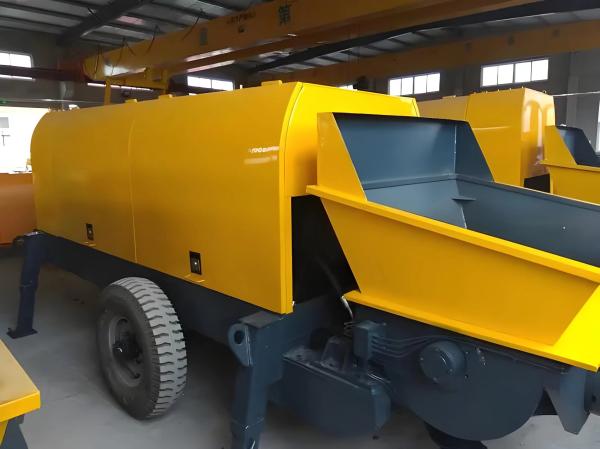

Trailer Mounted Mini Portable Cement Pump 60m3/H For Concrete Placement Custom
Trailer Mounted Mini Portable Cement Pump 60m3/H For Concrete Placement Custom
Trailer Mounted Mini Portable Cement Pump 60m3/H For Concrete Placement Custom
Trailer Mounted Mini Portable Cement Pump 60m3/H For Concrete Placement Custom
Specifications
Brand Name :
Sunny
Model Number :
HBT60
Place of Origin :
Hunan
MOQ :
1 set
Price :
USD5000-7000 PER SET
Payment Terms :
L/C, D/P, T/T, Western Union
Supply Ability :
500 SET PER MONTH
Delivery Time :
20-35DAYS
Packaging Details :
FULL CONTAINER
Application :
concrete pump,Trailer Pump
Warranty :
3 years
Model :
HBT60
Legs :
hydraulic cylinder legs
Output :
60 cube meter per hour
Feature :
Easy Operation
Pipe Diameter :
100 or 125mm
Power :
186kw
Hopper Capacity :
800L
Wheel Number :
4
Hydraulic System Type :
Open Loop
Concrete Cylinder Diameter :
200mm
Generator Power :
50kw
Max. Theoretical Horizontal Conveying Distance :
800m
Overall Dimensions :
6500mm x 2000mm x 2200mm
Loader Type :
ZL12
Color :
Customized
Max. Theoretical Vertical Conveying Distance :
200m
Description

Factory Price Cheap Trailer-mounted Concrete Pump 60m3/h

Product Description

The HBT series concrete pump is a type of trailer-mounted concrete pump that is widely used in construction projects for efficient and reliable concrete placement. It is designed to transport liquid concrete from the mixing site to the desired location, offering high performance, versatility, and ease of operation.

Key features and components of the HBT series concrete pump include:

  1. Trailer-Mounted Design: The HBT series concrete pump is mounted on a trailer, providing mobility and ease of transportation between different job sites. The trailer design allows for quick and convenient setup, as well as easy movement within the construction site.

  2. Pumping System: The pumping system of the HBT series concrete pump consists of a hydraulic piston or a rotary pump. This system generates the necessary pressure to transport the concrete through the delivery pipeline. The pumping system ensures a smooth and consistent flow of concrete, enabling precise placement.

  3. Hopper: The HBT series concrete pump features a hopper that receives the concrete from a mixer truck or other source. The hopper acts as a temporary storage space for the concrete before it is pumped into the delivery pipeline. It is equipped with a stirring device to prevent the concrete from settling or segregating during the pumping process.

Trailer Mounted Mini Portable Cement Pump 60m3/H For Concrete Placement Custom

Parameters
Unit
HBT30.6.35S
HBT40.8.45S
HBT50.10.55S
HBT60.13.90S
HBT80.16.110S
Type of Power Machine
/
Electric/Diesel engine
Electric/Diesel engine
Electric/Diesel engine
Electric/Diesel engine
Electric/Diesel engine
Pumping Volume(Max)
m³/h
30
35
52
66
75
Outlet Pressure
Mpa
6
8
10
13
13
Hydraulic System Type
/
Open
Open
Open
Open
Open
High/Low Switch
/
Rotary Valve
Rotary Valve
Rotary Valve
Rotary Valve
Rotary Valve
Rater Power
kw
35
45
55
90
90
Distribution Valve Type
/
S Valve
S Valve
S Valve
S Valve
S Valve
Concrete Cylinder Diameter*Stroke
mm
Φ125*600
Φ140*1000
Φ200*1000
Φ200*1650
Φ200*1800
Hopper Capacity*Feeding Height
L*mm
350*1000
350*1100
600*1400
600*1400
600*1400
Max.Aggregate Size
mm
Pebble:20;
Crushed Stone:20
Pebble:20;
Crushed Stone:20
Pebble:50;
Crushed Stone:40
Pebble:50;
Crushed Stone:40
Pebble:50;
Crushed Stone:40
Total Weight
kg
2300
2500
4500
6000
6100
Dimension(L*W*H)
mm
3800*1500*1600
4500*1500*1650
5100*1700*2000
6400*2100*2200
