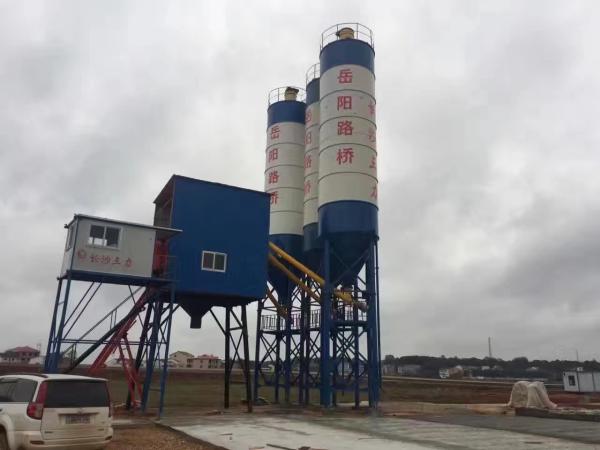

Hzs25 M3/H Heavy-Duty Construction Concrete Batching Plant Tough Jobs Concrete Batching Plant
Hzs25 M3/H Heavy-Duty Construction Concrete Batching Plant Tough Jobs Concrete Batching Plant
Hzs25 M3/H Heavy-Duty Construction Concrete Batching Plant Tough Jobs Concrete Batching Plant
Hzs25 M3/H Heavy-Duty Construction Concrete Batching Plant Tough Jobs Concrete Batching Plant
Specifications
Brand Name :
SUNNY
Model Number :
HSZ100
Place of Origin :
Hunan
MOQ :
1 set
Price :
USD 110000-150000/ SET
Payment Terms :
L/C,T/T,D/P,Western Union,MoneyGram
Supply Ability :
20 Set/Sets per Month
Delivery Time :
25-30 days
Packaging Details :
container
Maaterial :
cement, crushed stone, sands and so on
Application :
Building Works,Construction Projects,bridges,docks,airport
Control system :
automatic PLC control,totally automatic
Productivity :
≤60m3/h
Mixer :
JS2000 Twin-shaft Concrete Mixer
Warranty :
12 Months
Condition :
New
After-sales service provided :
Engineers available to service machinery overseas,Online support,Video technical support,Field installation,commissioning and training
Description

Fully Automatic Cement Concrete Batching Plant Ready Mix HZS 25-240m3/h Concrete Mixer With Twin Shaft 60

HZS25 Bucket Type Batching Plant

The HZS25 Concrete Batching Plant is a compact, high-performance solution designed for efficient and reliable concrete production. With a capacity of 25 cubic meters per hour, this plant is perfect for small to medium-scale construction projects like residential buildings, roads, and bridges. Its space-saving design and user-friendly operation make it an excellent choice for contractors who need a reliable, cost-effective batching system.


Key Features:

  • Bucket Feeding System: The plant utilizes a bucket system to feed aggregates and other materials into the weighing hoppers, ensuring precise and consistent batching.
  • Twin-Shaft Mixer: A high-efficiency twin-shaft mixer ensures thorough mixing of all ingredients, resulting in a homogeneous concrete mix with excellent properties.

  • Weighing System: Accurate weighing systems for aggregates, cement, water, and additives guarantee precise dosing and consistent concrete quality.
  • Control Panel: A user-friendly control panel provides easy operation and monitoring of the entire batching process.
  • Modular Design: The plant's modular design allows for easy installation and transportation, making it suitable for various site conditions.


Model HZS35 HZS50 HZS75 HZS100
Production in Theory (m3/h) 35 50 75 100
Mixer Type JS750 JS1000 JS1500 JS2000
Mixing Motor Power (KW) 2×15 2×18.5 2×30 2×37
Cycle time(S) 60 60 60 60
Mixer Discharging Volume(L) 750 1000 1500 2000
Maximum Particle Size of Aggregate(mm) 60 60 60 80
Batching Volume(L) 1200 1600 2400 3200
Aggregate Species 2-3 2-4 4 4
Aggregate lifting motor power(kw) 7．5 15 18.5 22
Discharging Height (m) 4 4 4 4
Installed Capacity(KW) 50 70 110 120


Hzs25 M3/H Heavy-Duty Construction Concrete Batching Plant Tough Jobs Concrete Batching Plant

Features of concrete batching plant:

1. It adopts a combined structure and unitized module, which allows for quick and convenient installation and demolition.
2. The unloading angle of the aggregate bin has been increased to solve the problem of difficulties in unloading caused by rain.
3. The use of cylinder discharge or electric push rod makes it convenient and quick to discharge materials.
4. The overall steel structure of the mixing station is constructed with high-quality steel, providing strong structural strength and stability.
5. The mixing machine utilizes a twin-shaft forced mixing main machine, delivering strong mixing performance, uniformity, and high productivity.
6. Excellent pneumatic components, electrical components, etc., are employed to ensure equipment reliability and accurate metering performance.
7. Each maintenance and repair site is equipped with a walking platform or check ladder, offering sufficient operation space for easy maintenance and repair.
8. Environmental protection measures include energy-saving features such as pulse dust removal system and recycling waste-water for reuse.
