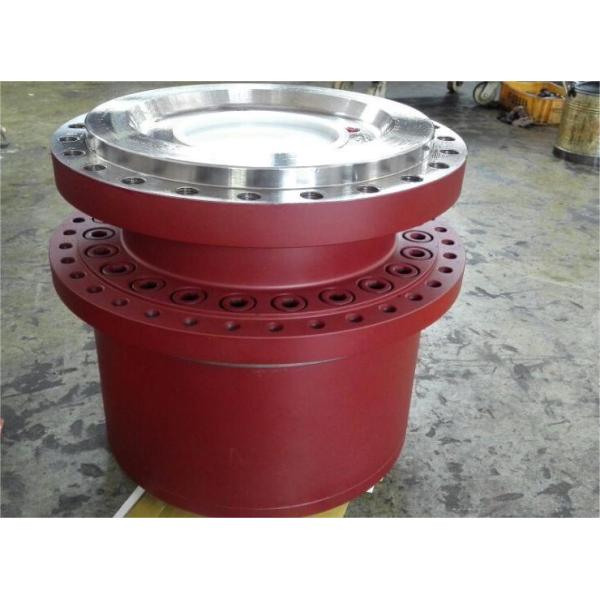

Custom HFT020 Torque Hub Cw18 Compact Travel Drive/Final Drive for Electric Drive Motor

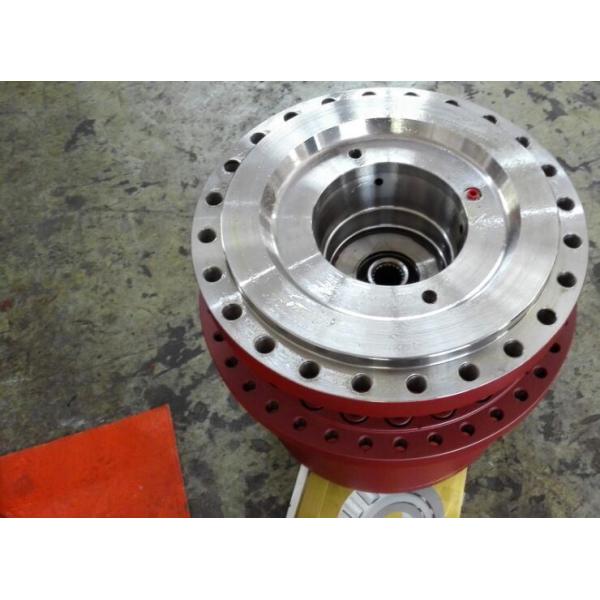

Custom HFT020 Torque Hub Cw18 Compact Travel Drive/Final Drive for Electric Drive Motor
Custom HFT020 Torque Hub Cw18 Compact Travel Drive/Final Drive for Electric Drive Motor
Custom HFT020 Torque Hub Cw18 Compact Travel Drive/Final Drive for Electric Drive Motor
Custom HFT020 Torque Hub Cw18 Compact Travel Drive/Final Drive for Electric Drive Motor
Custom HFT020 Torque Hub Cw18 Compact Travel Drive/Final Drive for Electric Drive Motor
Custom HFT020 Torque Hub Cw18 Compact Travel Drive/Final Drive for Electric Drive Motor
Custom HFT020 Torque Hub Cw18 Compact Travel Drive/Final Drive for Electric Drive Motor
Custom HFT020 Torque Hub Cw18 Compact Travel Drive/Final Drive for Electric Drive Motor
Custom HFT020 Torque Hub Cw18 Compact Travel Drive/Final Drive for Electric Drive Motor
Custom HFT020 Torque Hub Cw18 Compact Travel Drive/Final Drive for Electric Drive Motor
Custom HFT020 Torque Hub Cw18 Compact Travel Drive/Final Drive for Electric Drive Motor
Specifications
Model NO. :
HFT020
Step :
Three-Step
Type :
Planetary Gear Box
Output Torque :
Higher Output Torque
Custom :
Customized Design
Brand :
Elite/OEM
Ratio :
Different Ratios
Brakes :
Multiple Disc Brakes
Load Capacity :
Higher Load Capacity
Assembly :
Easy Assembly
Transport Package :
Wooden Boxes
Trademark :
Elite
Origin :
China
HS Code :
8483402090
Supply Ability :
90000 Pieces/Year
Package Size :
80.00cm * 80.00cm * 100.00cm
Package Gross Weight :
80.000kg
Application :
Motor, Motorcycle, Machinery, Agricultural Machinery
Function :
Change Drive Torque, Speed Changing, Speed Reduction
Hardness :
Hardened Tooth Surface
Customization :
Available | Customized Request
Shipping Cost :
about shipping cost and estimated delivery time.
  :
Initial Payment Full Payment
Currency :
US$
Return&refunds :
You can apply for a refund up to 30 days after receipt of the products.
Place of Origin :
China
Certification :
ISO 9001, ISO 14001, IATF16949
Packaging Details :
Wooden Boxes
Delivery Time :
Peak Season Lead Time: one month, Off Season Lead Time: within 15 workdays
Payment Terms :
LC, T/T, D/P, PayPal
MOQ :
5
Description

Product Description

MODEL MAX RANGE OF RATIO MAX.INPUT SPEED ORBITAL HYD. HYDRAULIC PISTON MOTOR OIL QUANTITY WEIGHT
OUTPUT MOTOR
TORQUE
Nm 1: rpm L kg
HFT003 3000 6,8 4000 √ √ 1-1.3 35-55
HFT005 5000 5-55 4000 √ √ 1-1.3 50
HFT007 7000 11-57 4000 √ √ 1.1 50
HFT010 10000 25-63 4000 √ √ 1.5 56-63
HFT011 13000 26-59 4000 √ 2 80
HFT017 17000 26-141 4000 √ 2.5 90
HFT020 20000 27-51 4000 √ 2.5-3 105
HFT024 24000 44-170 4000 √ 2.5-3 105-120
HFT026 26000 26-62 4000 √ 3.5-4 140
HFT030 30000 23-42 4000 √ 5 120
HFT034 34000 51 4000 √ 5 140
HFT036 36000 12-173 4000 √ 5 140-170

Custom HFT020 Torque Hub Cw18 Compact Travel Drive/Final Drive for Electric Drive Motor
Custom HFT020 Torque Hub Cw18 Compact Travel Drive/Final Drive for Electric Drive Motor
Elite HFT-F Travel Drives are unsurpassed by any crawler or milling machines. Thanks to compact, rugged design, high torque and load capabilities, and optional mechanical lifetime seals, these solutions are the best possible option for the machine. All units are available with a fail-safe parking brake and most have the option of cartridge type fixed or variable systems.

Features:
Compact structure and space-saving design
Robust main bearing system
High torque capacity
High load capacity
Integrated static multiple disk parking brake
Optional Disconnect device for towing
Optional Quick disconnection device
Simple mounting
Easy oil change
Low-noise running operation

Specifications:
Model HFT020T
Max. output torque: 20000 N.m
Input speed
 up to 4,000 rpm
Ratio: 2-stage: 17, 20, 22, 27, 32, 38, 46, 50, 54
2-stage:78,88,90,102,120,140,153,170,227
Brake options
 Hydraulically released parking brake on request
Dynamic Loading: 232KN
Static Loading: 420 KN
Applicable motors:
Cartridge axial piston hydraulic motors
Flanged axial piston hydraulic motors
Hydraulic orbit motors
Electrical motors
Application: Travel for Track, Chain and Wheel driving machines
