Specifications
Model NO. :
HA/HS
Drill Hole Depth :
<100m
Bit Type :
Button Bit
Drilling Way :
Top Hammer
Shank Types :
R38/T38/T45
Dimensions :
1093X332X200.5mm
Flow Rate :
150-170 L/Min
Drilling Diameter :
51-89 mm
Power :
27kw
Transport Package :
Wooden Boxes
Specification :
1093X332X200.5mm
Trademark :
Elite
Origin :
China
HS Code :
84314320
Supply Ability :
90000 Pieces/Year
After-sales Service :
24h
Warranty :
1 Year
Certification :
ISO 9001, ISO 14001, IATF16949
Condition :
New
Motor :
Hydraulic
Drill Hole Diameter :
<100mm
Customization :
Available | Customized Request
Place of Origin :
China
Packaging Details :
Wooden Boxes
Delivery Time :
Peak Season Lead Time: one month, Off Season Lead Time: within 15 workdays
Payment Terms :
LC, T/T, D/P, PayPal
MOQ :
5
Description
Product Description

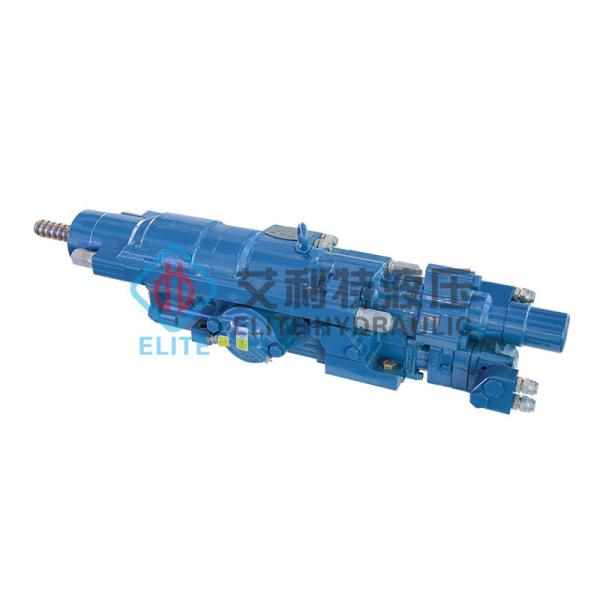

HM27D rock drill
Product Description
High power rock drill suitable for mining and underground engineering anchor hole drilling

Max.impact power:27 KW
Hole dia.:51-89mm

Product Details


Impact Piston Design: The impact piston is designed to match the dimensions of the drill rod, effectively minimizing impact stress and prolonging equipment lifespan.
Efficient Hydraulic Dual-Damping System and Floating Joint: Equipped with an efficient hydraulic dual-damping system and a floating joint, significantly enhancing the productivity of the rock drill while improving the economic efficiency of the drill rod by reducing wear and replacement frequency.
Powerful Infinitely Variable Speed Bi-Directional Motor: The rock drill features a powerful infinitely variable speed bi-directional motor, providing high torque output and excellent speed control, making it suitable for a wide range of challenging conditions and boosting operational efficiency.

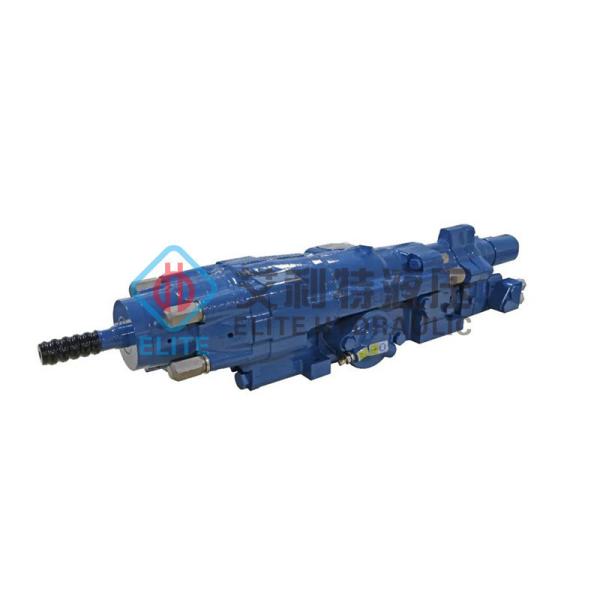

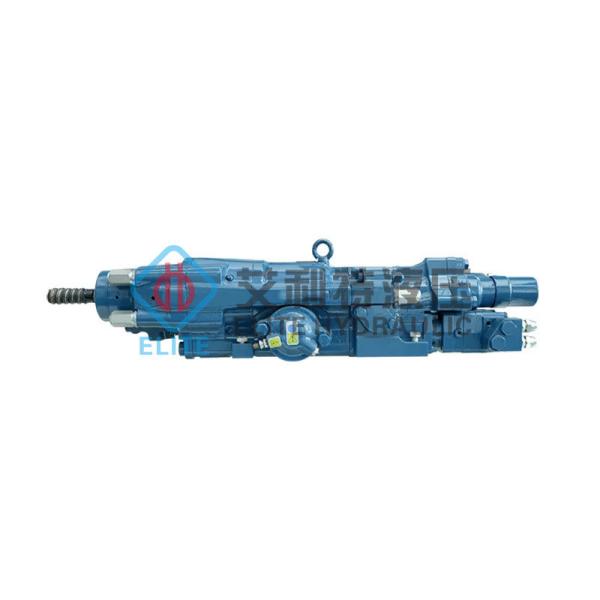

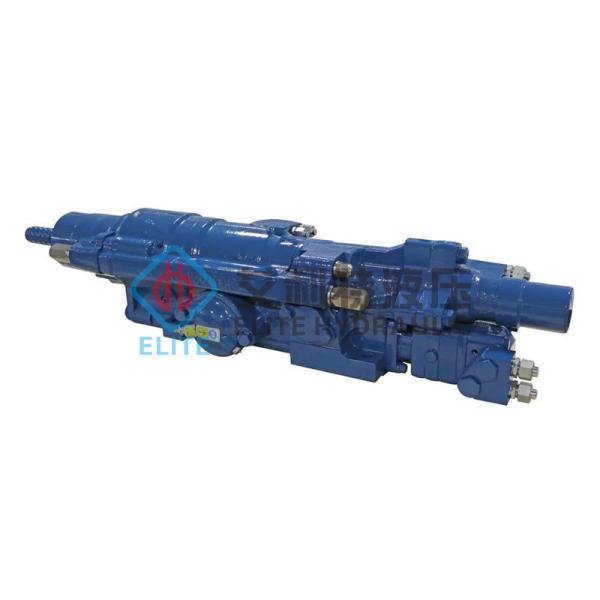

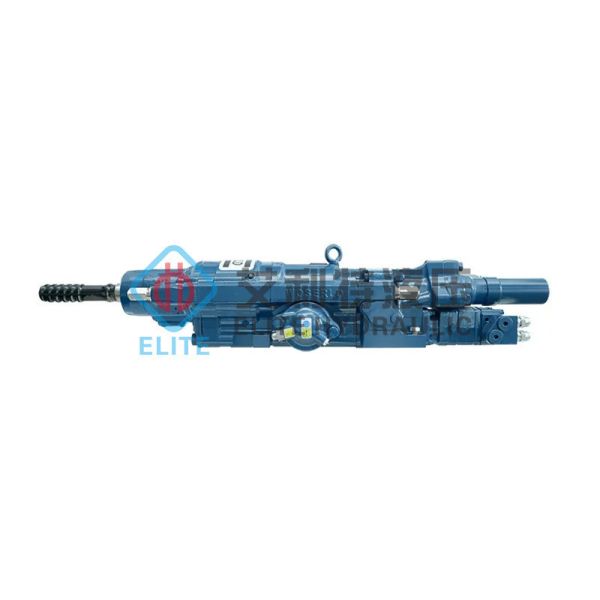

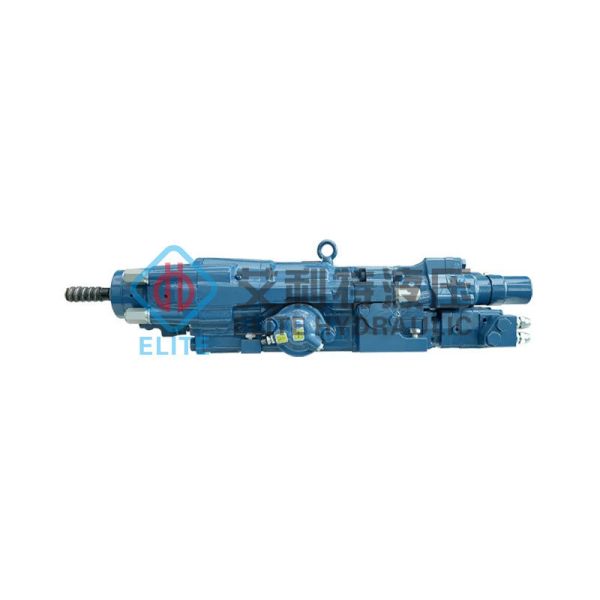

Detailed Photos


Montabert Hc25/Hc28/Hc50/Hc95/Hc95SA/Hc109/Hc110 Horizontal Drilling Hydraulic Rock Drills


Montabert Hc25/Hc28/Hc50/Hc95/Hc95SA/Hc109/Hc110 Horizontal Drilling Hydraulic Rock Drills
Product Parameters

HM27 Rock Drill
Structure
Dimension mm*mm*mm 1093X332X200.5
Weight KG 215
Center Height mm 100.5
Shank - R38/T38/T45
Hole Diameter mm 51-89
Impact Functions
Max. Impact Power KW 27
Oil Inlet Pressure Bar 165-190
Impact Frequency HZ 63-72
Flow L/min 150-170
Impact Energy J 329-380
Rotation Functions
Displacement CC 80/100/160
Rotation Speed Rpm 292/269/175
Max. Torque Nm 671/838/1342
Oil Inlet Pressure Bar 210
Flow L/min 65/75/78
Others
Water Pressure Bar 20-30
