Specifications
Model NO. :
HFTL
Type :
Planetary Gear Reducer
Output Torque :
Higher Output Torque
Custom :
Customized Design
Design :
Robust and Modular Design
Ground Tooth :
Notchless Ground Tooth Root
Delivery :
Fast Delivery
Load Capacity :
Higher Load Capacity
Assembly :
Easy Assembly
Ratio :
Different Ratios
Transport Package :
Wooden Boxes
Trademark :
elite
Origin :
China
HS Code :
8483402090
Supply Ability :
90000 Pieces/Year
Application :
Motor, Electric Cars, Machinery, Agricultural Machinery
Hardness :
Hardened Tooth Surface
Installation :
Horizontal Type
Layout :
Expansion
Gear Shape :
Cylindrical Gear
Step :
Three-Step
Customization :
Available | Customized Request
Place of Origin :
China
Certification :
ISO 9001, ISO 14001, IATF16949
Packaging Details :
Wooden Boxes
Delivery Time :
Peak Season Lead Time: one month, Off Season Lead Time: within 15 workdays
Payment Terms :
LC, T/T, D/P, PayPal
MOQ :
5
Description
Product Description
1 Structural features Combined with the principle of 2K-H, it adopts 1-stage, 2-stage or multi-stage combined cantilever structure, which is compact in structure, strong bearings can support part of the external weight, easy to install and easy to use.
2 Key features Two- or three-stage planetary drive with reduction ratios of up to 1:153
Optimized gear design for maximum efficiency and minimum noise
Integrated, low voltage, 3 phase induction motor with inverter
Integrated, high accuracy, KTY temperature sensor
High resolution, Hall effect speed sensor
3 seal Adopting an internationally advanced dynamic sealing structure, it can prevent lubricating oil from leaking out and the entry of external substances and moisture even under extreme use conditions
4 Lubrication This series of products is supplied without lubricating oil. When users use it, they need to add lubricating oil to the specified oil level. The gears and bearings are lubricated with oil. In addition to regular oil changes, the reducer does not require
Maintenance. Change the oil for the first time after the reducer is used for 150 hours for the first time. After that, change the lubricating oil every 1000 hours. Change the lubricating oil at least once a year. When changing the lubricating oil, you must
Keep it clean and do not allow impurities to be mixed in. It is recommended to use L-CKD 220 (40') closed industrial gear oil
5 design variations The models listed are standard series products, special designs can be provided according to user needs
6 Ambient operating temperature -40C to +90C. Under special circumstances, you need to communicate with our technical staff
MODEL MAX OUTPUT
TORQUE		 RANGE OF RATIO MAX.
INPUT SPEED		 ORBITAL HYD.
MOTOR		 HYDRAULIC PISTON MOTOR INTERCHANGEABLE MODEL
Nm 1: rpm
HFT003L 3000 5-21 4000 √ √ OMNI SL02
Auburn Gear Model 40
HFT005L 5000 5-75 4000 √ √ OMNI SD06/SL06
Auburn Gear Model 6B
Auburn Gear Model 7
HFT010L 10000 35-79 4000 √ √ OMNI SL12
Auburn Gear Model 8b
HFT017L 17000 18-171 4000 √ Rexroth GFB17
Auburn Gear Model 9
HFT024L 24000 38-222 4000 √ Rexroth GFB24
Auburn Gear Model 10B
HFT026L 26000 18-63 4000 √ Rexroth GFB26
HFT036L 36000 24-270 4000 √ Rexroth GFB36
HFT040L 40000 20-66 4000 √ Rexroth GFB40
HFT045L 46000 66-205 4000 √ Siebenhaar
HFT050L 50000 28-1817 4000 √ Rexroth GFB50
HFT060L 60000 26-510 3500 √ Rexroth GFB60
HFT080L 80000 40-190 3500 √ Rexroth GFB80
HFT110L 11000 29-219 3500 √ Rexroth GFB110

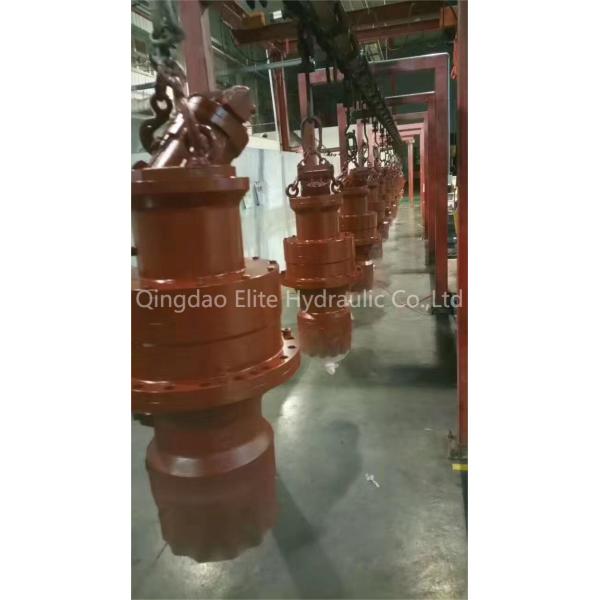

Detailed Photos
